Setting Up the Software
3.2.1 E10A-USB Software Installation Procedure
Rev. 1.01 May 7, 2008 3-6
REJ11J0015-0101
3
Note: If you have already installed a HEW on your PC, you can select “Install a new High-performance Embedded
Workshop” and install a new HEW in another directory on your PC.
(3) When the dialog box shown in Figure 3.2.3 is displayed, select “SuperH RISC engine Family SH-2A Device Group”
and “SH7670”, then click “Next”.

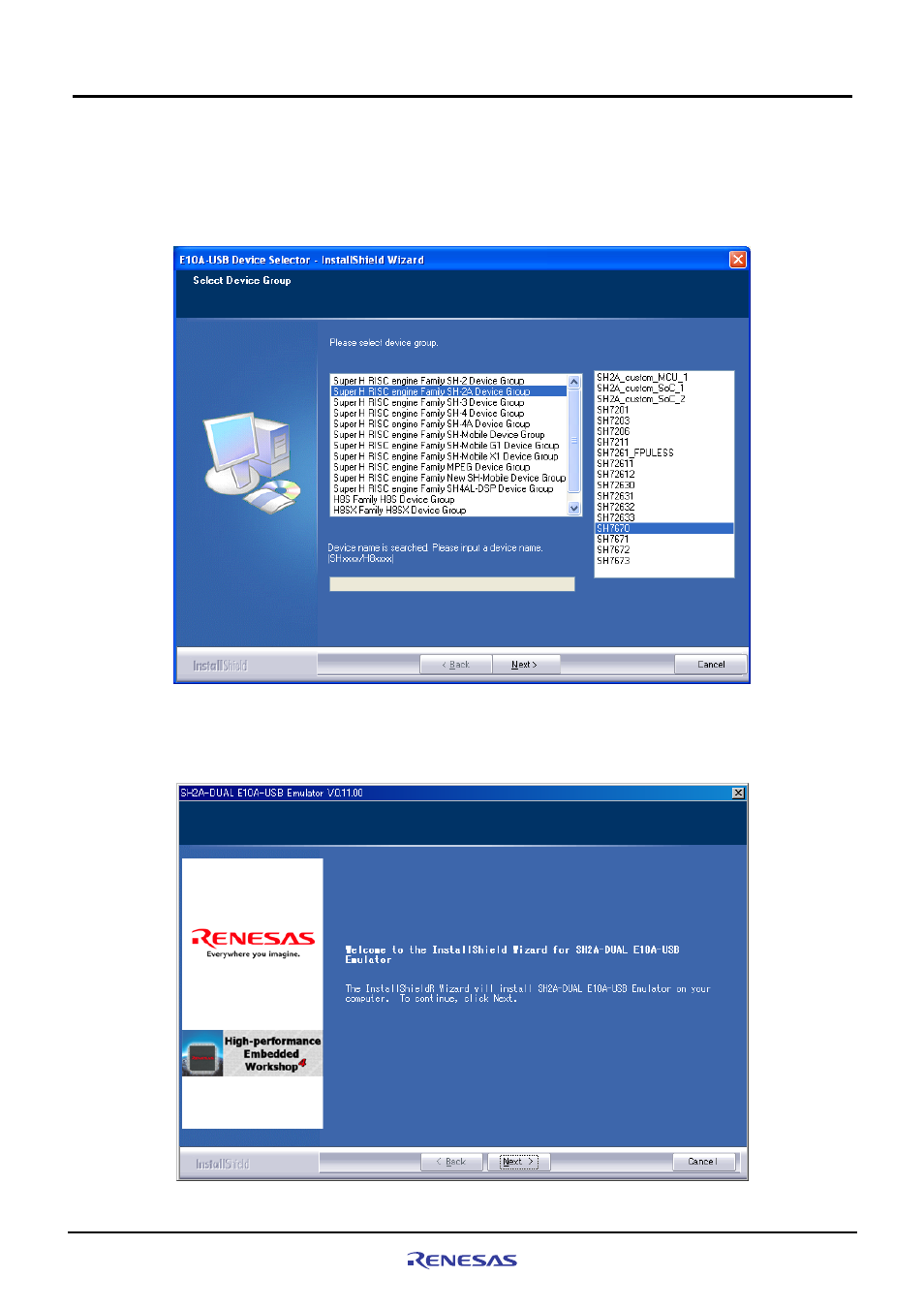

Figure 3.2.3 E10A-USB Software Installation Procedure (3)
(4) Click “Next to start the installation. Continue to install following the instructions in the installation window.
Figure 3.2.4 E10A-USB Software Installation Procedure (4)
