Setting Up the Software
3.2.1 E10A-USB Software Installation Procedure
Rev. 1.01 May 7, 2008 3-5
REJ11J0015-0101
3
3.2 Setting Up the E10A-USB Emulator Software
Next, the following explains how to set up the E10A-USB emulator software.
3.2.1 E10A-USB Software Installation Procedure
(1) Execute “HewInstMan.exe” included in the E10A-USB emulator software CD-ROM. High-performance Embedded
Workshop Install Manager is activated, and click “Installation”.

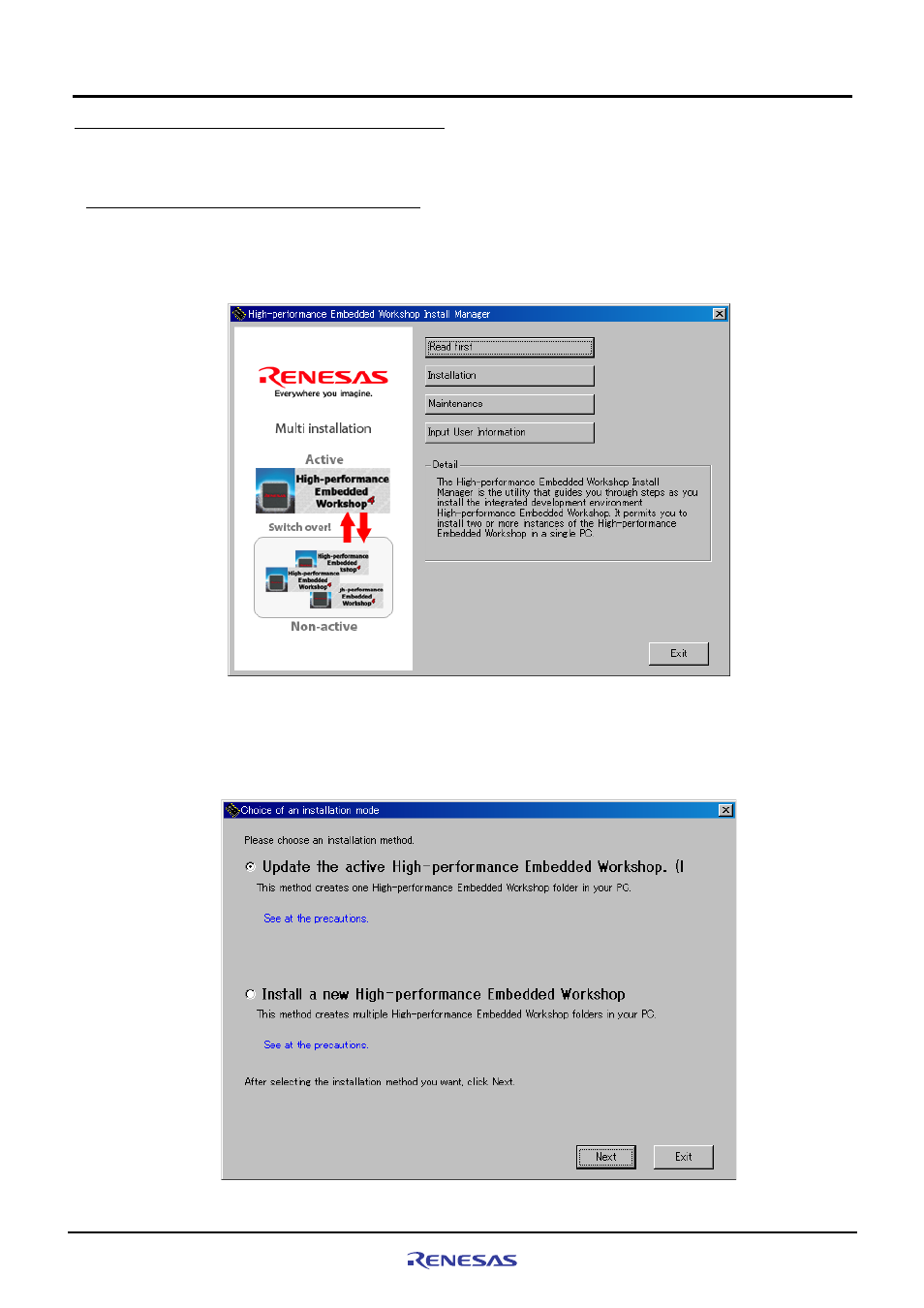

Figure 3.2.1 E10A-USB Software Installation Procedure (3)
(2) When the dialog box shown in Figure 3.2.2 is displayed, select “Update the active High-performance Embedded
Workshop” and click “Next”.
Figure 3.2.2 E10A-USB Software Installation Procedure (2)
