9 Raymarine Sirius Weather System Installation Guide
with the product is used only if the case is that there are no other existing
SeaTalk NG , SeaTalk2 or NMEA2000 products being used in the system, in
this case separate accessory cables needs to be purchased.
Audio cable (SR50 only)
A 5ft (1.5m) cable is supplied. The audio cable should be used to connect
your SR50 weather receiver to your external audio device.
Antenna cable
An antenna cable of 25 ft. (7.5m) is supplied. This RF coax cable should be
used to connect the antenna to the weather receiver. If a longer cable is
required it should be purchased from your Shakespeare dealer. For full
details of available cable lengths refer to “Accessories” on page 21.
Installing the system
The following section gives details of how to install your SR50/SR100 Sirius
weather receiver and antenna.
Receiver

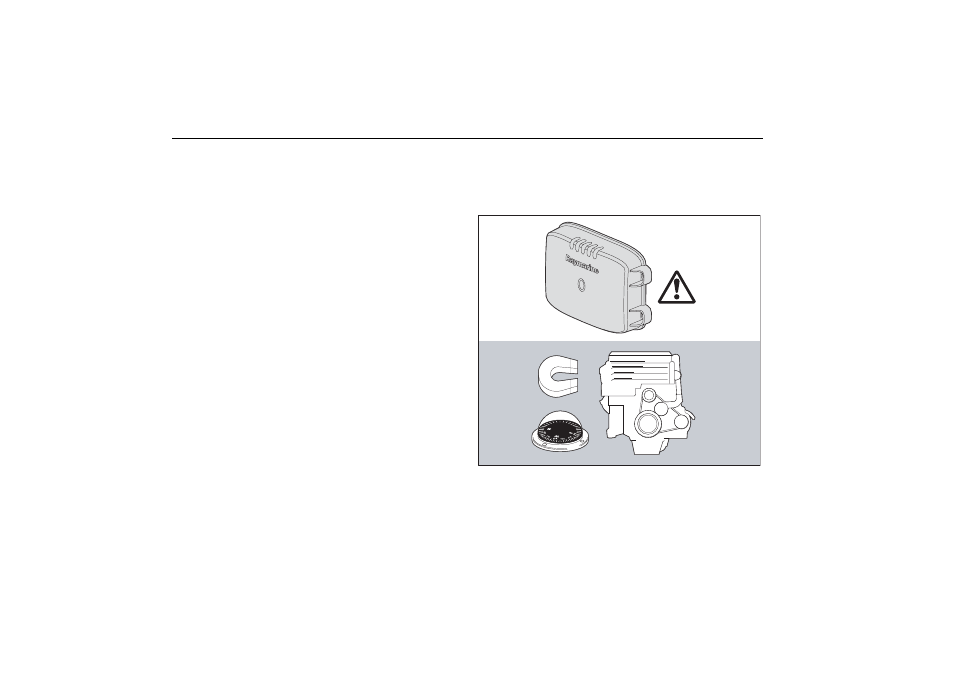

The receiver should be installed a minimum of 3 ft. (1m) away from an
engine, compass or any magnetic device.
D9065-1
