M34571T2-CPE User’s Manual 2. Setup
REJ10J0972-0100 Rev.1.00 February 10, 2006 Page 32 of 72
2.8.1 Connecting to a 2.54-mm-pitch Dual in-line Pins
Here following is a procedure of connecting 2.54-mm-pitch 26-pole dual in-line pins using a 26-wire normal-pitch cable
(included with the M34571T2-CPE). Table 2.5 lists the connector assignment of the 26-wire normal-pitch cable and Figure
2.11 shows the pin assignment of the 26-wire normal-pitch cable.
(1) Mount the 26-pole dual in-line pins to the user system.
(2) Attach the 26-wire normal-pitch cable (included) to the J3 connector of the M34571T2-CPE.
(3) Attach the 26-pole dual in-line pins on the user system to the backside of the 26-wire normal-pitch cable.

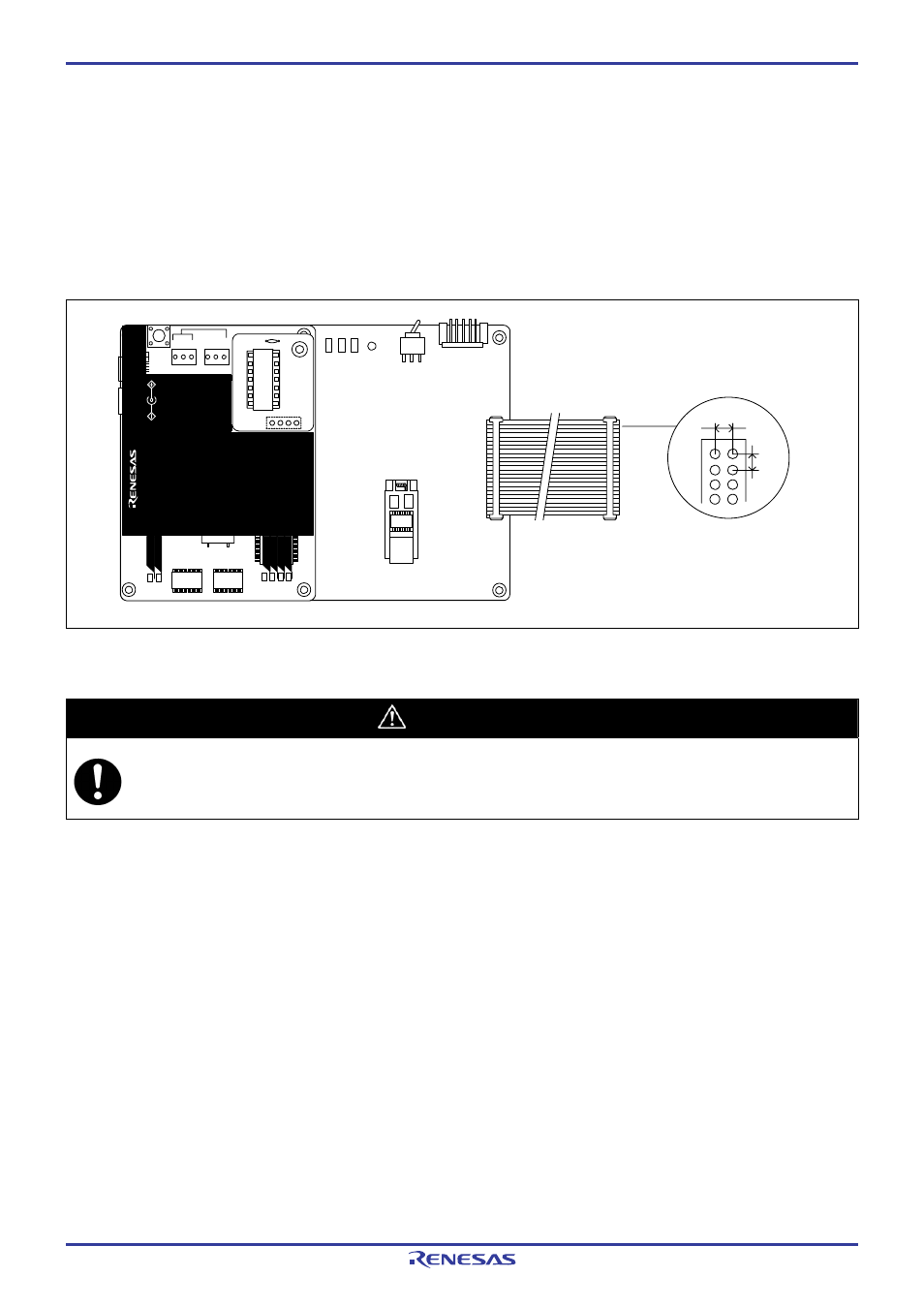

Figure 2.11 Connecting to a 26-pin 2.54-mm-pitch user system
CAUTION
Notes on Connecting the User System:
Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
user system.
