Regency ® L676 Direct Vent Gas Fireplace 46
MAINTENANCE
MAINTENANCE
3) Loosen the 2 screws that hold the left side
heat shield in place.
4) Lift up and pull out the heat shield slightly
to clear the screwheads and then hang it
on the top bracket (located directly above
the heat shield).
8) Remove the battery cover from the DC
Sparker Box.
9) Disconnect all the wires and connectors
from the DC sparker.
10) Remove the 2 screws that hold the DC
sparker.
1) Remove the exterior brick panels.
2) Remove the glass door.
Battery Cover

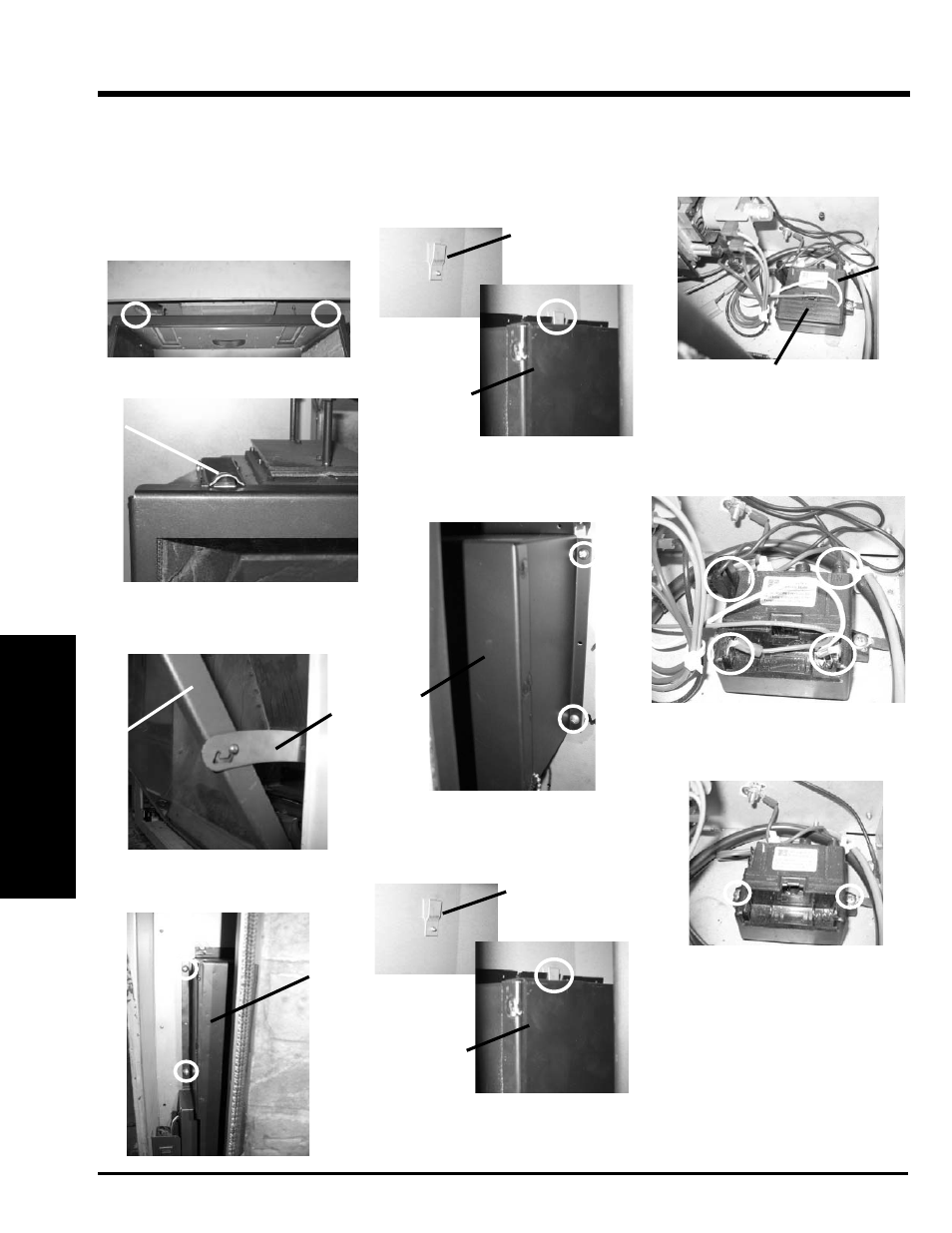

DC SPARKER REPLACEMENT
a. Release the 2 door latches on the left
and right side at the top of the fi rebox.
b. Swing the door out from the top and release
the hinges on the left and right side of the
door by lifting them up.
Hinge
Door
Latch
Latch Location
Heat
Shield
Bracket
Heat
Shield
11) Replace the DC sparker.
12) Reverse steps to re-install.
6) Loosen the 2 screws that hold the right
side heat shield.
7) Lift up and pull out the heat shield slightly to
clear the head screws and then hang it on
the top bracket (located directly above the
heat shield).
Bracket
Heat
Shield
Heat
Shield
5) Unplug the power source.
