Regency ® L676 Direct Vent Gas Fireplace 29
INST
ALLA
TION

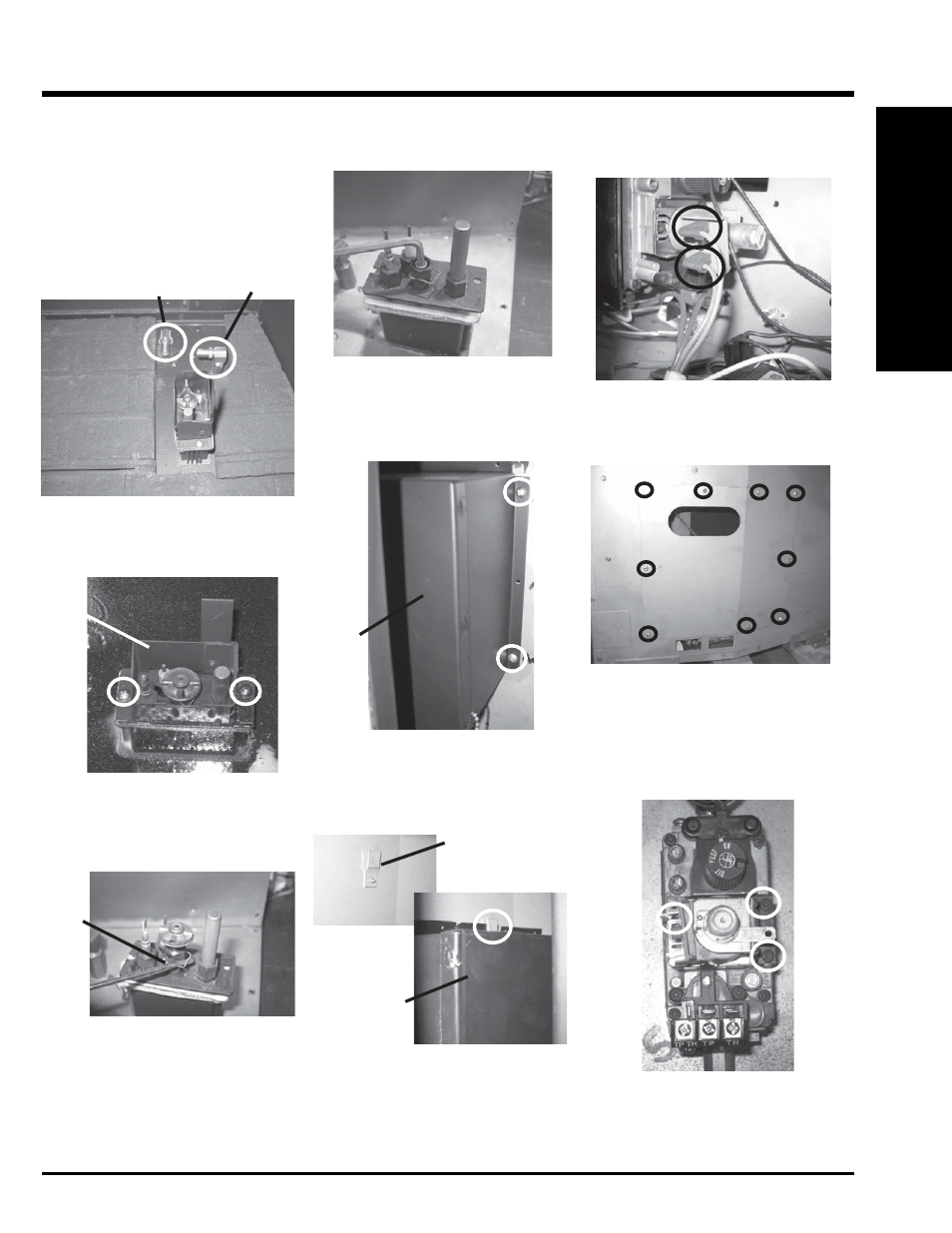

13) Lift up and pull out the heat shield slightly
to clear the head screws and then hang it
on the top bracket (located directly above
the heat shield).
Bracket
Heat
Shield
14) Disconnect the 2 grey connectors from
the modulator coil.
6) Replace the front burner orifi ce with orifi ce
#56. See image below. Use another wrench
to hold onto the elbow behind the orifi ce.
7) Replace the back burner orifi ce with orifi ce
#53. See image below. Use another wrench
to hold onto the elbow behind the orifi ce.
Front Burner
Orifi ce
Rear Burner
Orifi ce
8) Remove the pilot shield by removing the 2
screws.
9) Remove the clip from the pilot head assembly
using a fl at head screw driver.
10) Remove the NG pilot orifi ce with the Allen
Key and replace with LP pilot orifi ce.
11) Re-install the pilot head and pilot shield.
Pilot
Shield
Clip
16) Using a Torx T20, remove and discard the
3 pressure regulator mounting screws.
Remove the modulator coil and the
gasket.
15) Remove the right side panel by undoing the
9 screws.
12) Loosen the 2 screws that hold the right
side heat shield.
Heat
Shield
INSTALLATION
