Setting Up Studio Package Pro
7
Step 2: Connecting Your Equipment
Turn off the power of your computer and the SI-24, and use the following procedure to connect
each device.

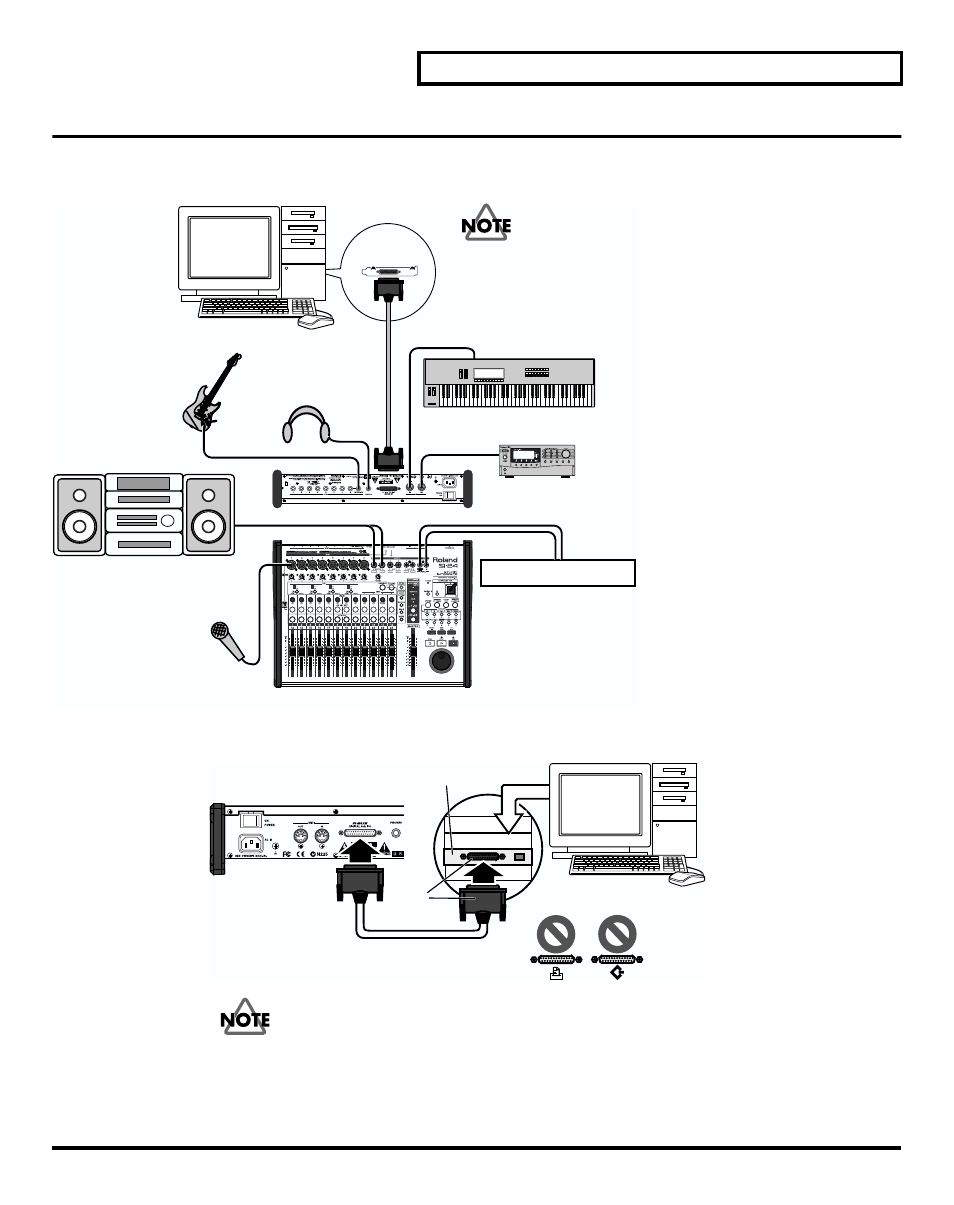

fig.eConnect.eps
1. Using the R-BUS cable included with the RPC-1, connect the SI-24 to the RPC-1.
fig.eConnectR-BUS.eps
Be careful not to connect the R-BUS connector to a printer port or SCSI port.
2. Connect your audio devices and/or headphones.
digital recorder etc.
RPC-1
PC
electric Guitar
mic
stereo Headphones
MIDI Sound Module etc.
MIDI Keyboard etc.
line In jacks of audio devices
SI-24
R-BUS cable
SI-24
R-B
US
blue
RPC-1
rear
PC
Please select the number of MIDI ch as expect
“1” (use 2–16) when you use MIDI device such
as a MIDI keyboard or a MIDI sound module by
hooking up to MID IN/OUT connector on SI-24.
MIDI ch 1 is exclusively used for the communication
between SI-24 and SONAR software.
