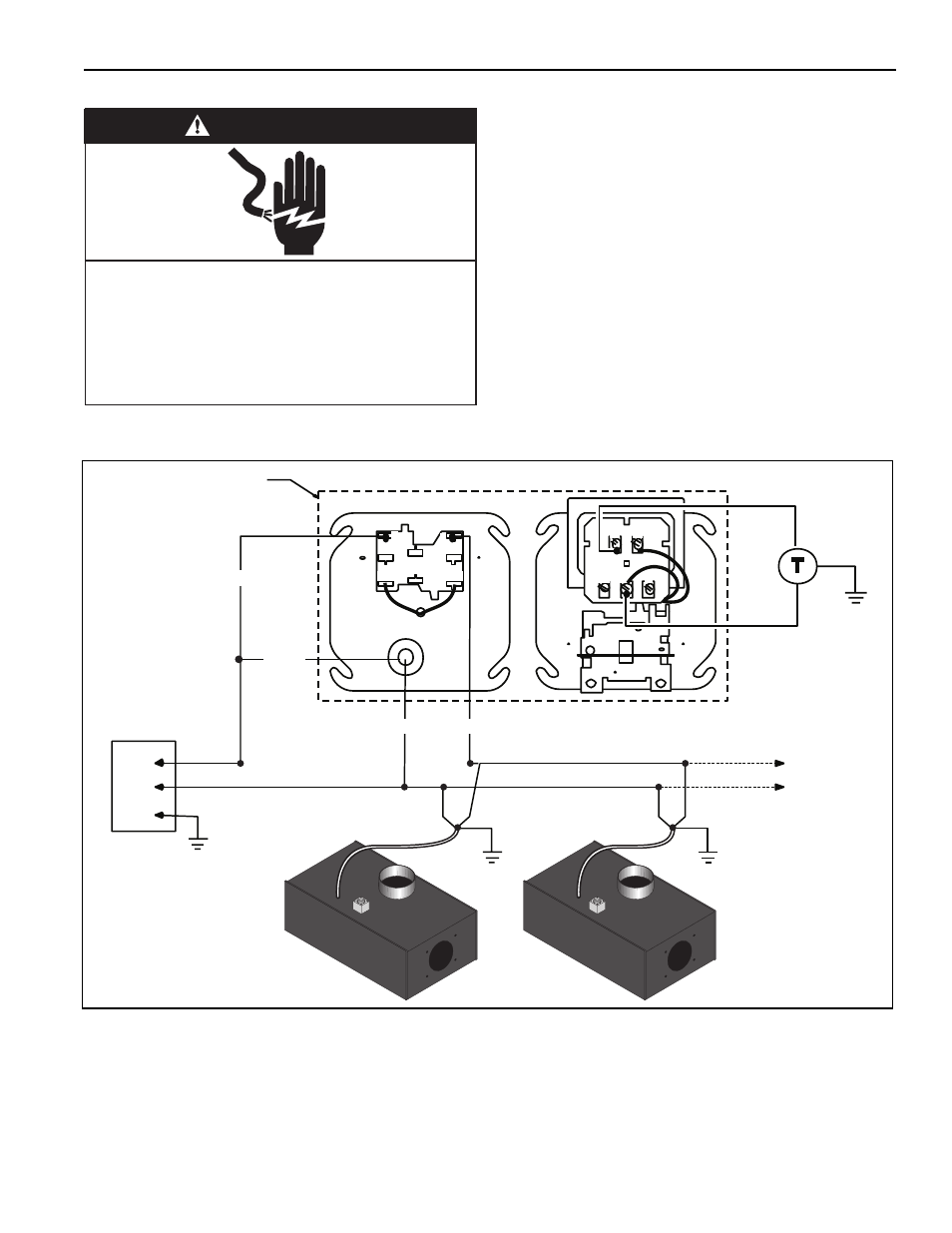

Low Voltage Thermostat and Relay Wiring
WARNING
Electrical Shock Hazard
Disconnect electrical power and gas supply before
servicing.
This appliance must be connected
to a properly grounded electrical source.
Failure to follow these instructions can result in
death or electrical shock.
R
C
W G
Y
1
2
3
4
5
6
COIL
COIL
L1
L2
Gnd.
N
H
Gnd.
N
H
Gnd.
Additional
Burners
120V-60Hz
Supply Circuit
Low Voltage
Thermostat
Burner 1
Burner 2
Maximum 6 burners
per relay (see thermostat
manufacturers specifications).
Black
Black
White
Red
SPDT Transformer Relay
P/N 90417600
FRONT VIEW
BACK VIEW
