ROBERTS GORDON ® T F-S E RIE S S U BMI TT AL S HEE T
© 2004 Roberts-Gordon APPLI CAT IONS, ENGIN EE RING AND DE TAI LE D GUIDANCE ON SYST EMS DE SI GN, I NSTALL ATION AND PRODUCT PE RFORMANCE I S AVAIL ABL E UPO N REQUE ST. ROBERTS GO RDON ® PRODUCTS ARE TO BE
INSTAL LE D ONLY I N ACCOR DANCE WIT H L OCAL L AW S, CODES AND RE GULAT IONS, AND ONLY BY A CONTRACTO R QUALI FIE D IN THE INST AL LAT ION AND SE RVICE OF GAS-F IRE D HEAT ING E QUIPMEN T.

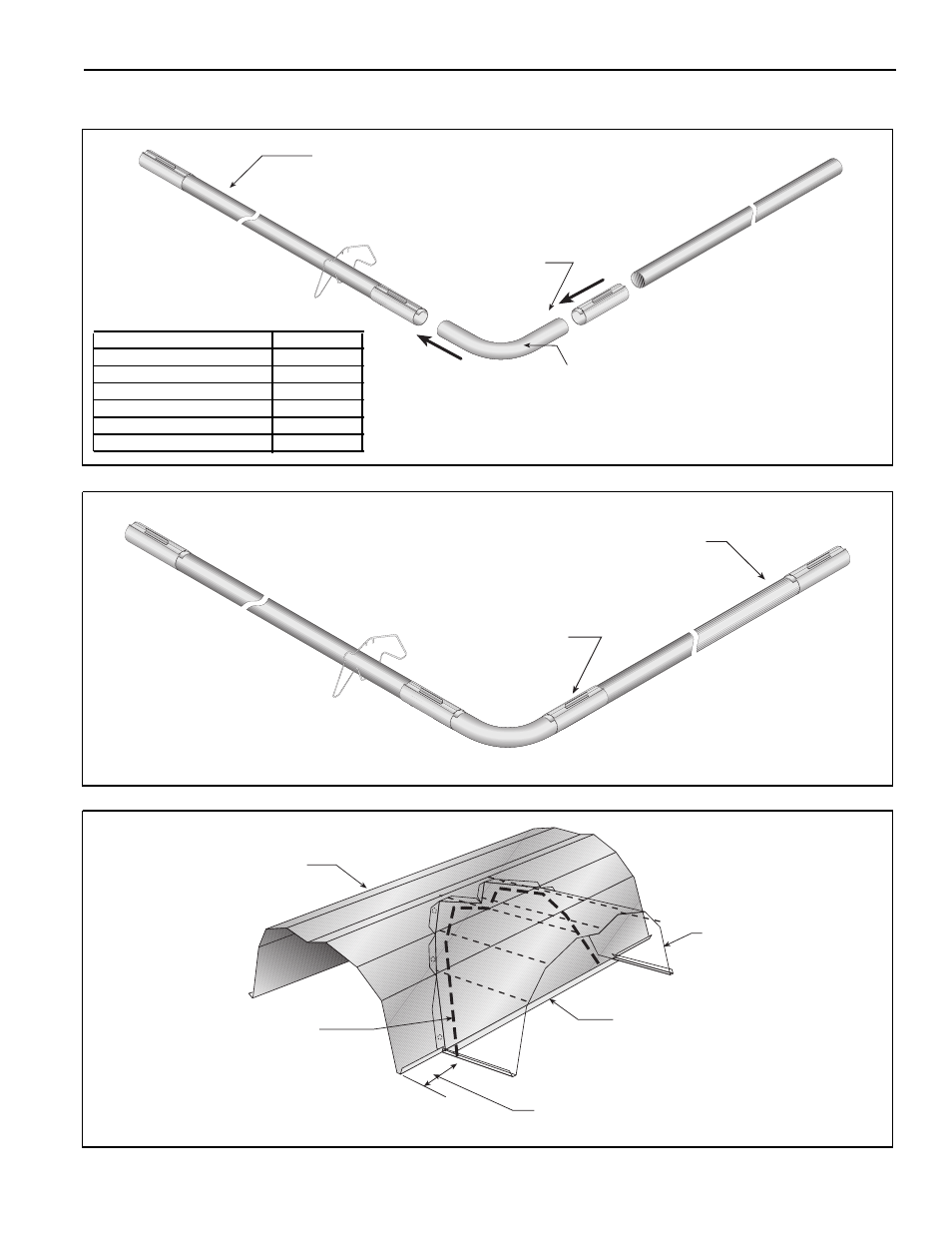

ELBOW PACKAGE CONFIGURATION
Elbow Installation
Elbow Installation (continued)
Reflector Joint Installation
Reflector Joi29
Tube
90° Elbow
Coupling
Description Part Number
Elbow Package 02718702
90° Elbow 01335801
Coupling 01312700
Reflector End Cap 02750800
Reflector Joint Piece 02750900
U-Clip Package 91107720
Tube
Coupling
Reflector
Reflector
Joint
Flatten Edge
1" (2.5 cm)
maximum
Scribe
Contour
