ROBERTS GORDON ® T F-S E RIE S S U BMI TT AL S HEE T
© 2004 Roberts-Gordon APPLI CAT IONS, ENGIN EE RING AND DE TAI LE D GUIDANCE ON SYST EMS DE SI GN, I NSTALL ATION AND PRODUCT PE RFORMANCE I S AVAIL ABL E UPO N REQUE ST. ROBERTS GO RDON ® PRODUCTS ARE TO BE
INSTAL LE D ONLY I N ACCOR DANCE WIT H L OCAL L AW S, CODES AND RE GULAT IONS, AND ONLY BY A CONTRACTO R QUALI FIE D IN THE INST AL LAT ION AND SE RVICE OF GAS-F IRE D HEAT ING E QUIPMEN T.

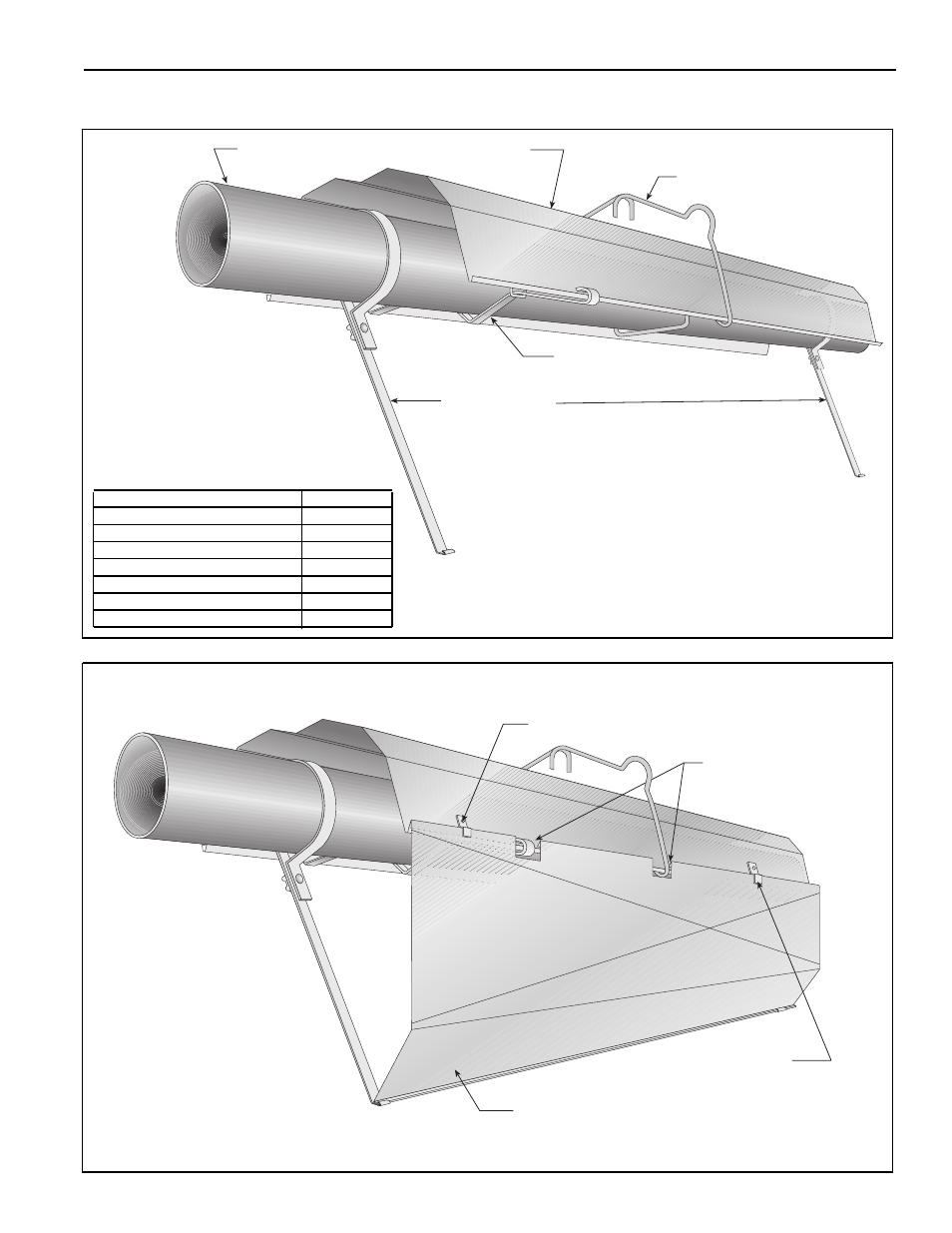

REFLECTOR SIDE EXTENSION
Bracket Installation
Side Reflector Installation
Reflector Side
Extension Bracket
(2 per reflector)
Use additional supports
in high air movement
applications.
Tube and Reflector Hanger
Reflector Tube
Reflector Support
Description Par t Number
Reflector Side Extension Package 02712700
Reflector Side Extension 01368000
Retainer Clips 02751200
Sheet Metal Screws 94118106
Order Separately
Reflector Side Extension 01329910
Retainer Clip
(2 per side)
#8 x 3/8" Sheet Metal Screw
Reflector Side Extension
