ROBERTS GOR DON ® T F-S E RIE S S UB MI TT AL S HEE T
© 2004 Roberts-Gordon APPL ICATION S, ENGI NEE RING AND DET AI LE D GUID ANCE ON SYST EMS DE SIGN, INSTAL LATI ON AND PRODUCT PE RFORMANCE IS AVAI LABLE UPON RE QUEST. ROBERT S GORDON ® PRODUCT S ARE T O BE
INSTAL LE D ONL Y IN ACCORDANCE WI TH L OCAL L AWS, CODES AND REGUL AT IONS, AND ONLY BY A CONT RACT OR QUALI FIE D I N THE I NST ALL AT ION AND SE RVICE OF GAS-FIRE D HE AT ING EQUI PME NT.

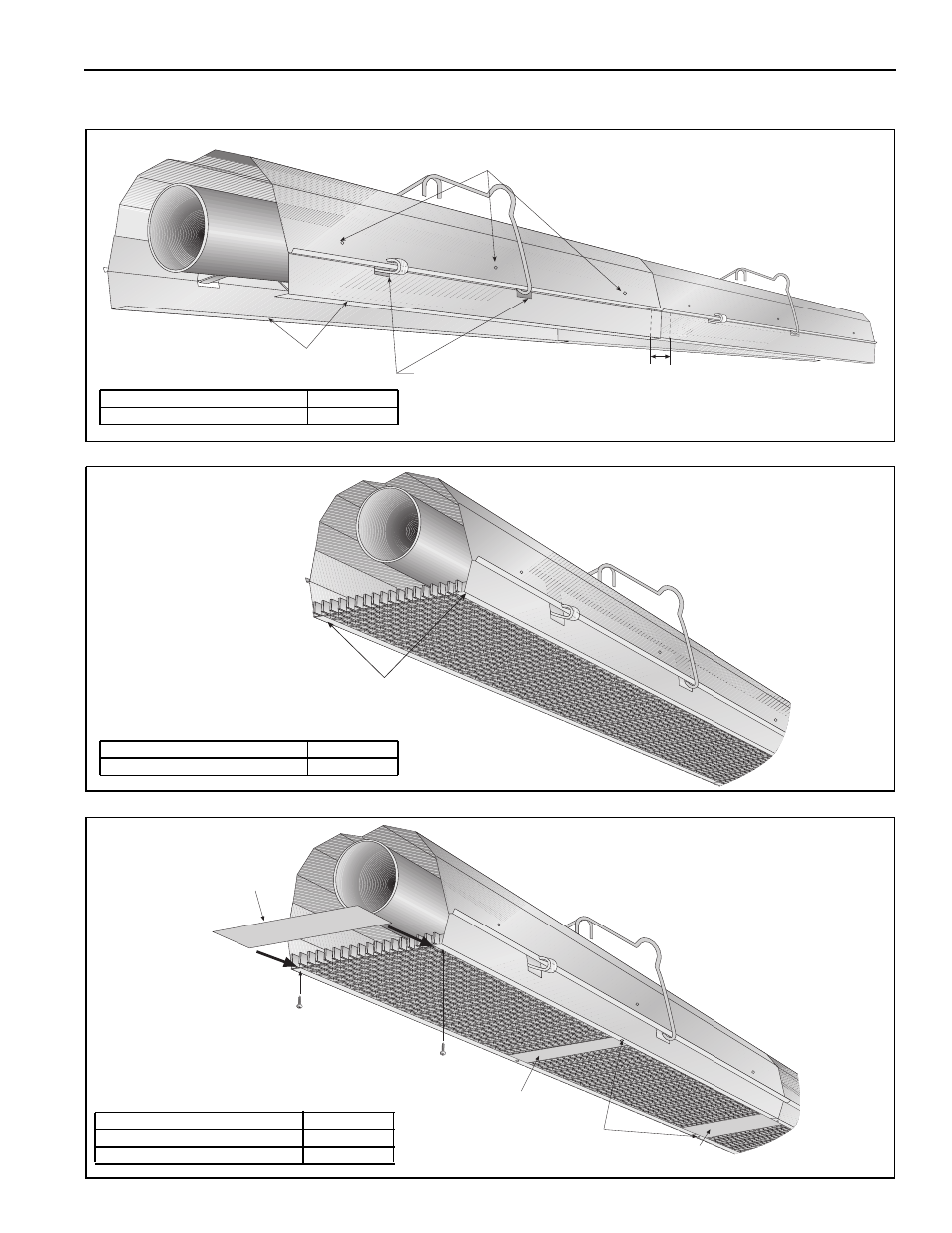

ONE-FOOT DECORATIVE GRILLE INSTALLATION
One-Foot Decorative Grille Bracket
Decorative Grille
Joint Piece and Reinforcement
#8 Sheet Metal Screws
Cut relief notches for
supports and hangers.
Decorative Grille Bracket
2"
Minimum
Bracket
Overlap
Description Part Number
Bracket 01363003
In order to maintain reflector shape, do
not fasten brackets together. Do not
fasten bracket to adjoining reflectors.
Maintain same slipjoint position as
reflectors.
Spread apart brackets
and install
Decorative Grille.
Description Part Number
Decorat ive Grille 8’ x 1’ 91406700
#8 Sheet Metal Screws
Joint Piece
Reinforcement
Slip joint piece into
support bracket
and fasten to
bracket on one side
of the joint only.
Joint Piece
Description Par t Number
Joint Piece 01365903
Reinforcement 01365902
