ROBERTS GOR DON ® T F-S E RIE S S UB MI TT AL S HEE T
© 2004 Roberts-Gordon APPL ICATION S, ENGI NEE RING AND DET AI LE D GUID ANCE ON SYST EMS DE SIGN, INSTAL LATI ON AND PRODUCT PE RFORMANCE IS AVAI LABLE UPON RE QUEST. ROBERT S GORDON ® PRODUCT S ARE T O BE
INSTAL LE D ONL Y IN ACCORDANCE WI TH L OCAL L AWS, CODES AND REGUL AT IONS, AND ONLY BY A CONT RACT OR QUALI FIE D I N THE I NST ALL AT ION AND SE RVICE OF GAS-FIRE D HE AT ING EQUI PME NT.

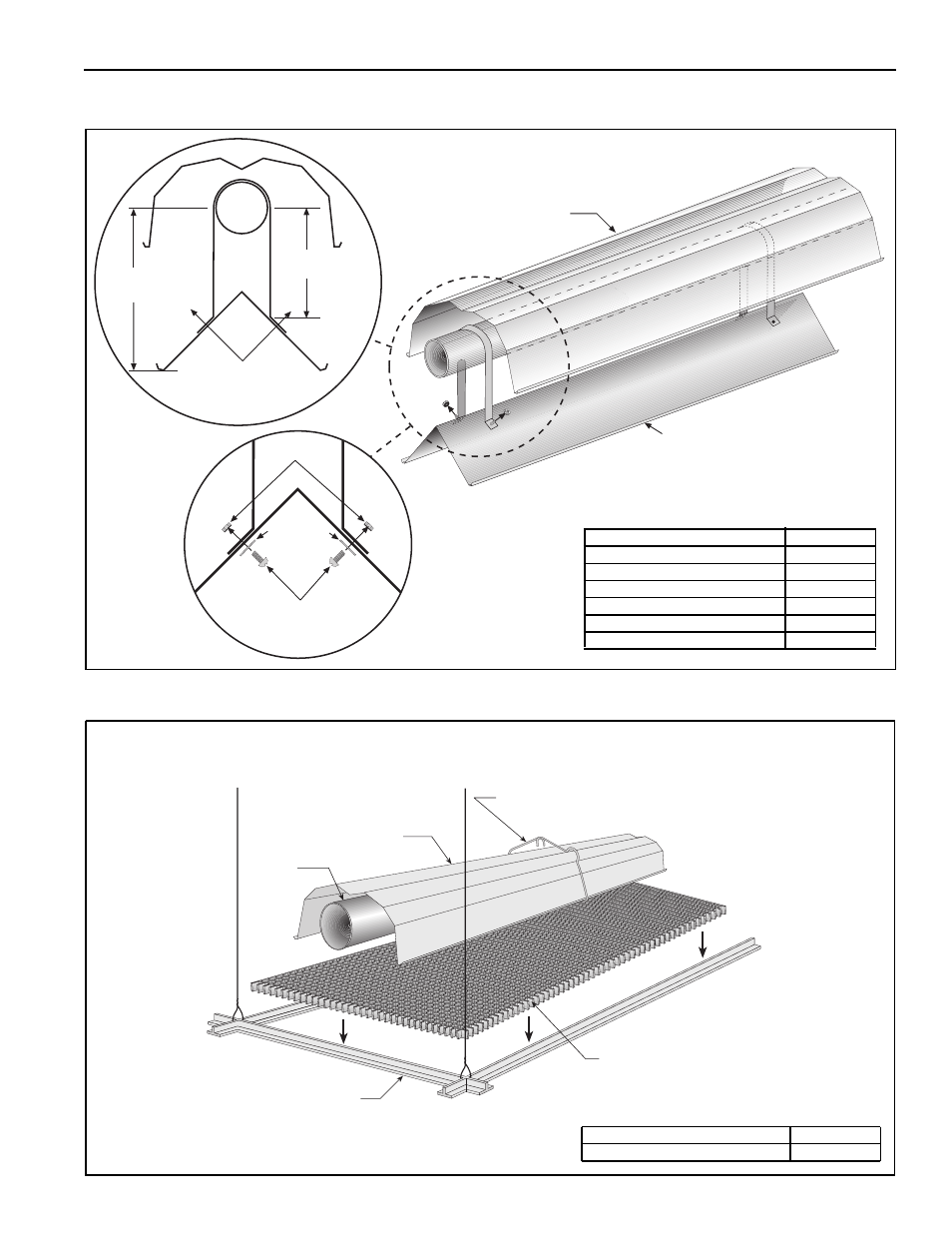

LOWER CLEARANCE SHIELD INSTALLATION
Shield Support Strap Assembly
TWO-FOOT DECORATIVE GRILLE INSTALLATION
Grille Installation
12"
(300 mm)
Reflector
Lower Clearance Shield
17.1"
(434 mm)
Washers
Screws
Locknuts
Align pilot holes
Descr ipti on Part Number
Lower Clearance Shiel d Package 01397501
Shield Support St rap 01397500
Lower Clearance Shield 02793000
Locknut #8 92311400
Flat Washer #8 95310800
Screw #8 x 3/8" 93511406
Suspended Ceiling Frame
Tube
61 x 122 cm Aluminium Grille
Reflector
Tube and Reflector
Hanger
Descri ption Part Number
Aluminium Grille 2’ x 4’ 91407000
