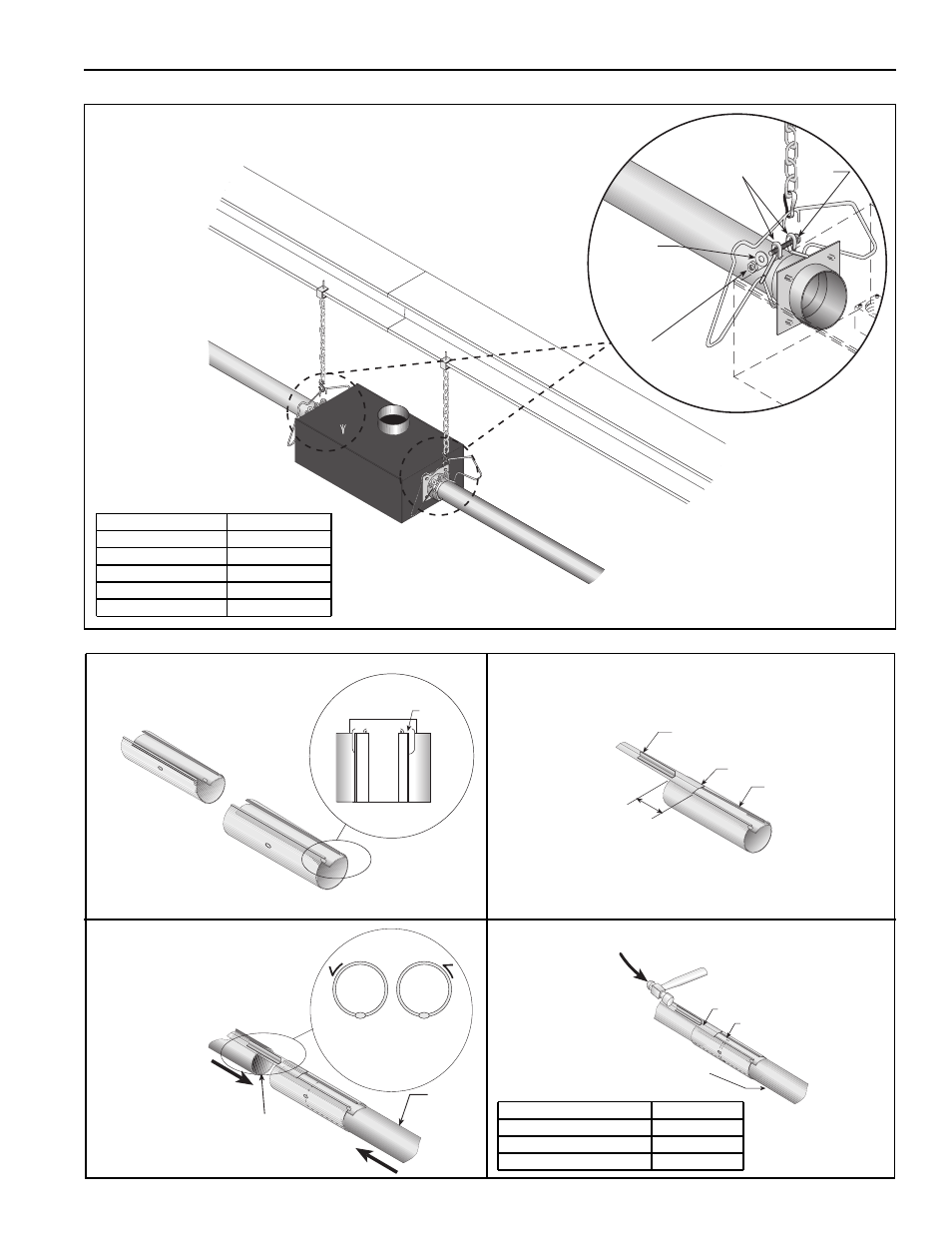

Tube Clamp Package Installation
Coupling and Tube Assembly
Bolt
Flat
Washer
Tube Clamp
Nut
(Torque 120 in/lb
13.56 Nm)
Description
Part Number
Tube Clamp Package
01318901
Tube Clamp
01396801
Bolt
97113940
Flat Washer
95211600
Nut
92113900
Tube
Tube
Orient coupling so that
the impact block is in the
2:00 or 10:00 oclock
positions
Closed
Open
Tab
3" (8 cm) to
4" (10 cm)
Slide Bar/Coupling Lock
Coupling
Wide end
Coupling
Tube
Slide Bar/Coupling Lock
A
Close coupling
with tab
B
Start Slide bar/Coupling Lock
onto coupling
C
Insert tubes into coupling
D
Tighten coupling to join tubes
Descr ipti on
Part Number
Coupling
01329600
Slide bar/Coupling Lock
01329700
Tube
91409XXX
