Accessories
MI 57
8.6 Right Angle Mirror
The right angle mirror comes in two different versions:
XXXMIACRAJ right angle mirror as accessory for air purging
jacket or air cooling system
XXXMIACRAJ1 right angle mirror with integrated air purging

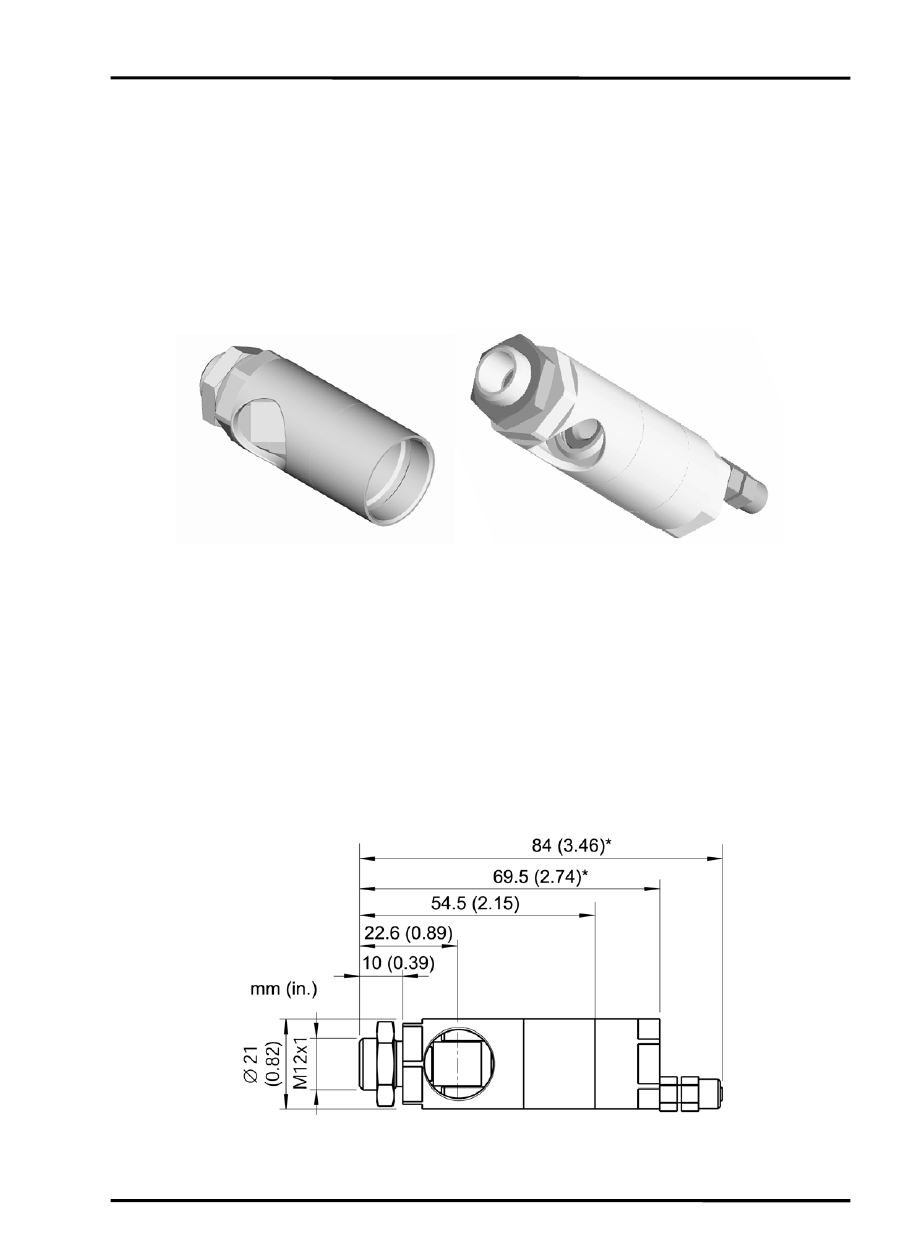

Figure 41: Right Angle Mirror XXXMIACRAJ (left),
Right Angle Mirror with Air Purging XXXMIACRAJ1 (right)
The right angle mirror withstands ambient temperatures up to 180°C
(356°F).
For mounting the right angle mirror (XXXMIACRAJ) see section 8.4
Air Purging Jacket on page 50. However, instead of using the front
part of the air purging jacket (3), mount the right angle mirror.
Figure 42: Right Angle Mirror (* with Air Purging)
