Accessories
54 MI

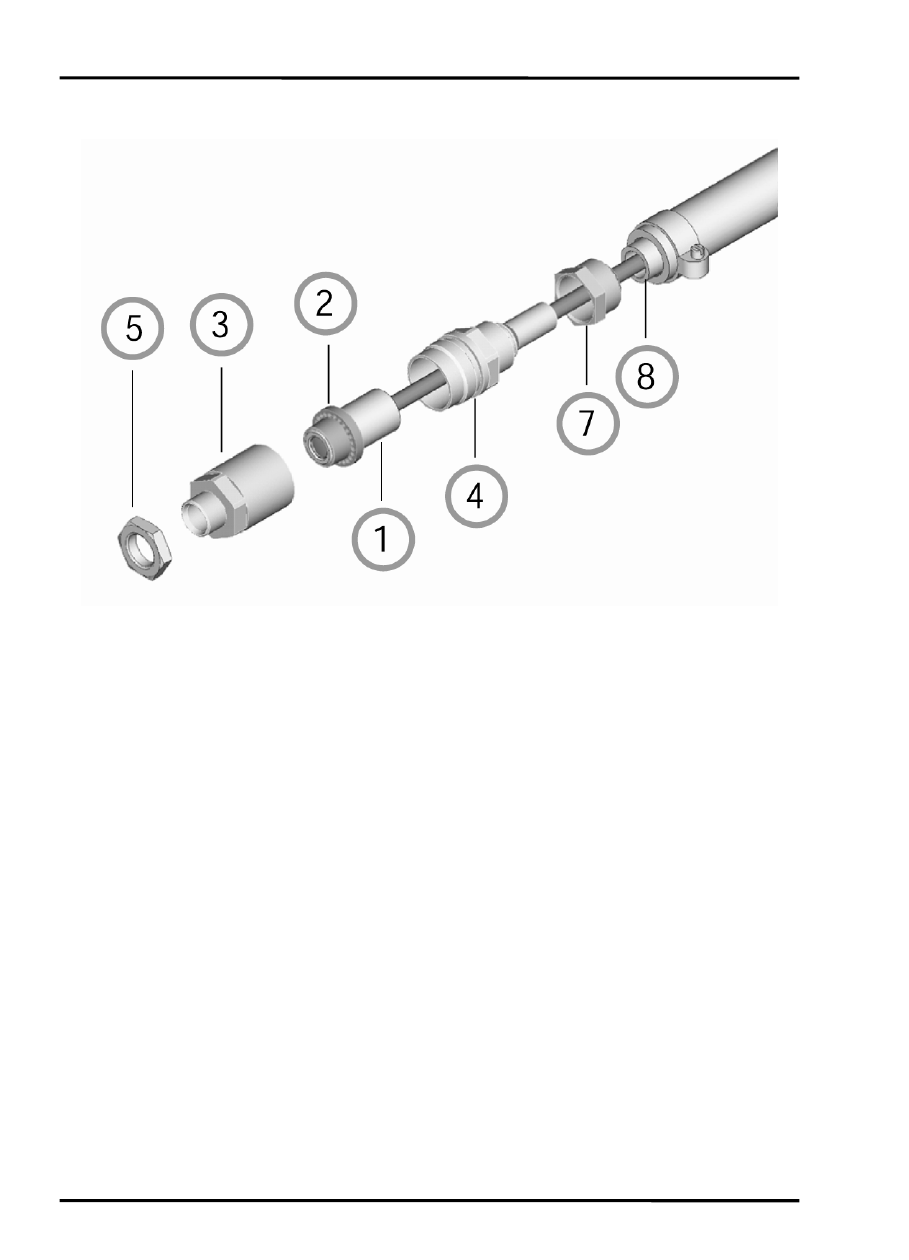

Figure 38: Air Cooling System: Purging Jacket
The Air Cooling System consists of:
(1)
sensing head
(2) inner plastic fitting (air purging jacket)
(3) front part of the air‐purging jacket
(4) back part of the air‐purging jacket
(5) mounting nut
(6) preinstalled cable between sensor and box, leading through the
T‐adapter
(7) hose connecting nut
(8) inner hose
(9) outer hose
(10) T‐adapter
(11) rubber washer
(12) plastic compression fitting
(13) cap
