Setup and Connections
7
CAUTION
Do not stack electronic
components or other objects
on top of the DVD Player.
See Safety Information on the
inside front cover.

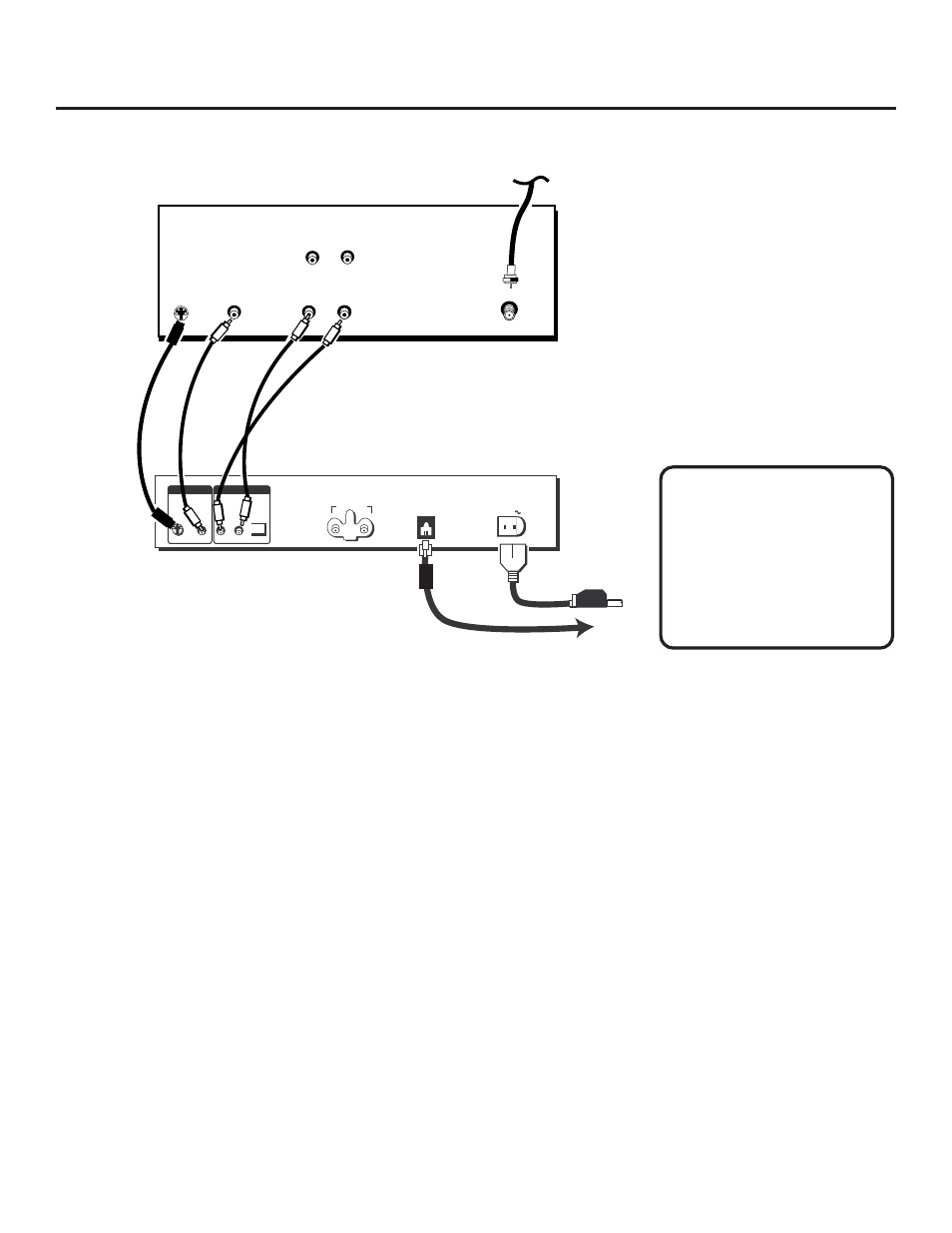

DVD Player + TV with Audio/Video Input Jacks
1.
Connect the audio cables to the AUDIO OUT L (left – white) and R (right – red) jacks on the back of your DVD
Player, and to the corresponding Audio Input jacks on your TV.
2.
Connect the video cable (yellow) to the VIDEO OUT jack on the back of your DVD Player, and to the Video Input
jack on your TV.
3.
If your TV has an S-Video Input jack, connect the S-Video cable to the S-VIDEO OUT jack on the back of your
DVD Player and to the S-Video jack on your TV. If your TV doesn’t have an S-VIDEO jack, skip this step.
4.
If the telephone line cord packed with your DVD Player has a filter attached to one end of the cord, insert that end
of the telephone line cord into the PHONE JACK on the back of your DVD Player. Plug the other end into the
telephone line splitter (provided), and insert the telephone line splitter into a phone jack.
If the telephone line cord doesn’t have a filter attached to it, just insert one end into the DVD Player’s PHONE
JACK and insert the other end into the telephone line splitter. Insert the telephone line splitter into a phone jack.
5.
Connect the AC power cord to the AC IN jack on the back of your DVD Player, and plug the other end into an AC
outlet.
6.
Turn on your TV and tune it to the Video Input Channel. (If you don’t know what channel is the Video Input
Channel, please see page 14.)
7.
Turn on your DVD Player.
Note: Your cable or off-air connection to the television should not be affected by this connection. Connect your cable or off-air
antenna to your television as you normally would. (You may need to consult your television manual for details.)
L
R
VIDEO IN
AUDIO IN
ANT IN
S-VIDEO
TV
VIDEO OUT
OUT
L
AUDIO OUT
RF ADAPTER
AC IN
PHONE
JACK
DIGITAL
AUDIO
OUT
L
S-VIDEO
AUDIO OUT
L
R
To Telephone Outlet
S-Video cable is optional
To AC Outlet
CABLE
OR
OFF-AIR SIGNAL
DVD
PLAYER
