Control Panel

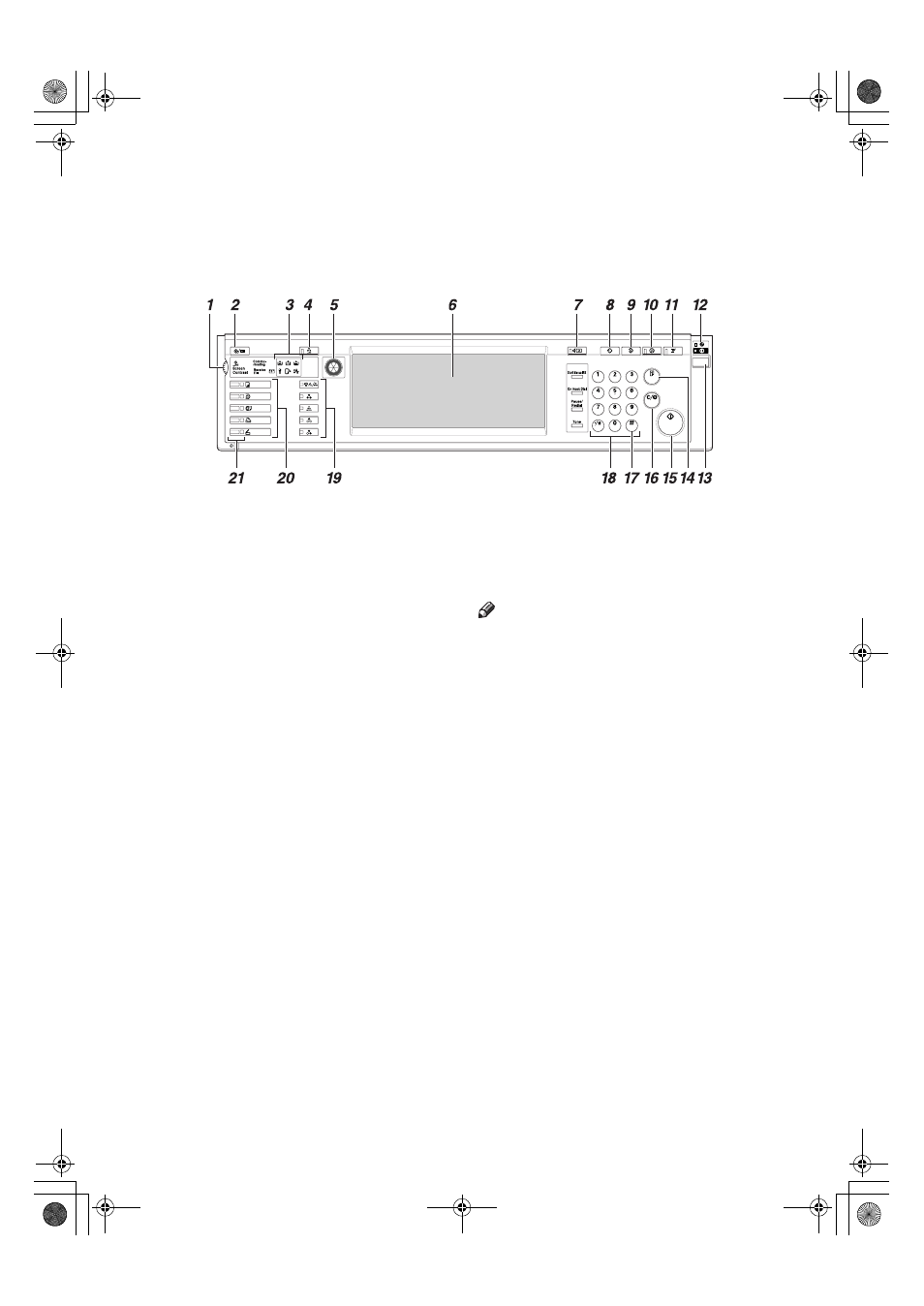

This illustration shows the control panel of a machine with options
fully installed.
1. Screen Contrast knob
Adjusts display panel brightness.
2. {{{{User Tools/Counter}}}} key
• User Tools
Press to change the defaults and con-
ditions to meet your requirements.
See p.103 “User Tools (Copier / Docu-
ment Server Features)”.
• Counter
Press to check or print the counter value.
See “Counter”, General Settings Guide.
• Inquiry
Press to find out where to order ex-
pendable supplies and where to call
when a malfunction occurs. You can
also print these details.
See “Inquiry”, General Settings Guide.
3. Indicators
Display the status of the machine or indi-
cate errors.
•
d: Add Staple indicator
• D: Add Toner indicator
• B: Load Paper indicator
• L: Service Call indicator
•
M: Open Cover indicator
• x: Misfeed indicator
See “Control Panel”, General Settings
Guide.
4. {{{{Adjust/Program Colour}}}} key
Use this key to adjust and register col-
ours. See p.87 “Colour Adjustment/Pro-
gram”, p.92 “User Colour”.
Note
❒ When image quality is adjusted, the
lamp in the
{{{{Adjust/Program Colour}}}}
key is lit.
5. Colour Circle
Refer to this when adjusting colours. See
p.87 “Colour Adjustment”.
6. Display panel
Displays operation status, error messag-
es, and function menus.
See “Display Panel”, General Settings
Guide.
7. {{{{Check Modes}}}} key
Press to check the entered copy job set-
tings.
8. {{{{Program}}}} key
Press to register frequently used settings,
or recall registered settings. See p.85
“Programs”.
9. {{{{Clear Modes}}}} key
Press to clear the previous copy job set-
tings.
