Regency P33-3 Zero Clearance Direct Vent Gas Fireplace
FULL SCREEN FRONT
INSTALLATION

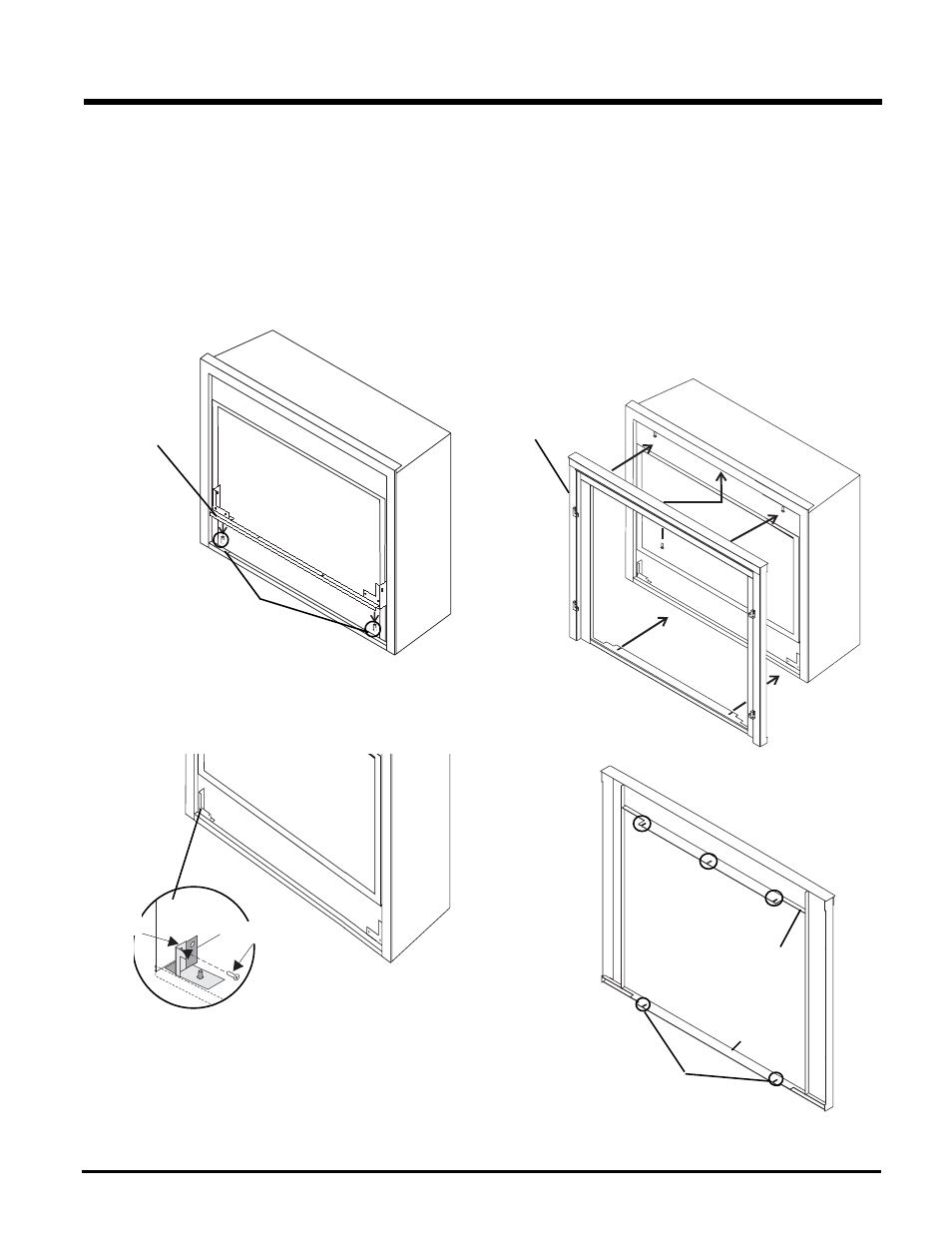

1) Before beginning the installation, remove the Glass Door from the
unit. Refer to the manual for instructions.
2) Slide the Bottom Face Plate Bracket into the bottom of the unit,
secure it into the pins located on the inside of the fi re box. Once the
bracket is in place, tighten the screws into the hinges on the left and
right sides.
4) a) Before attaching the Full Screen Door Frame to the unit,
loosen the left and right side #8 Self Tapping Philips screws
located on the inside top of the outer frame of the appliance.
Also remove the center screw.
b) Slide the cut-outs in the Top and Bottom Flange of the Full
Screen Door Frame under the screw heads which were
loosened in step 4a). Once the Frame is in place, tighten
the screws to secure. Also re-secure the top center screw
through the oblong hole.
3) Before attaching the Full Screen Door Frame, remove the Screen
Doors from the Full Screen Door Frame by fully opening the doors
and lifting up off of the hinges. See important note in step 10.
Cut-Outs
Bottom
Flange
Backside of Full
Screen Door
Frame Shown
Cut-Out
Top
Flange
Cut-Out
Oblong Hole
Pin location
Bottom Faceplate
Bracket
Full Screen Door
Frame
Faceplate
Mounting
Bracket
Screw
