Regency P33-3 Zero Clearance Direct Vent Gas Fireplace

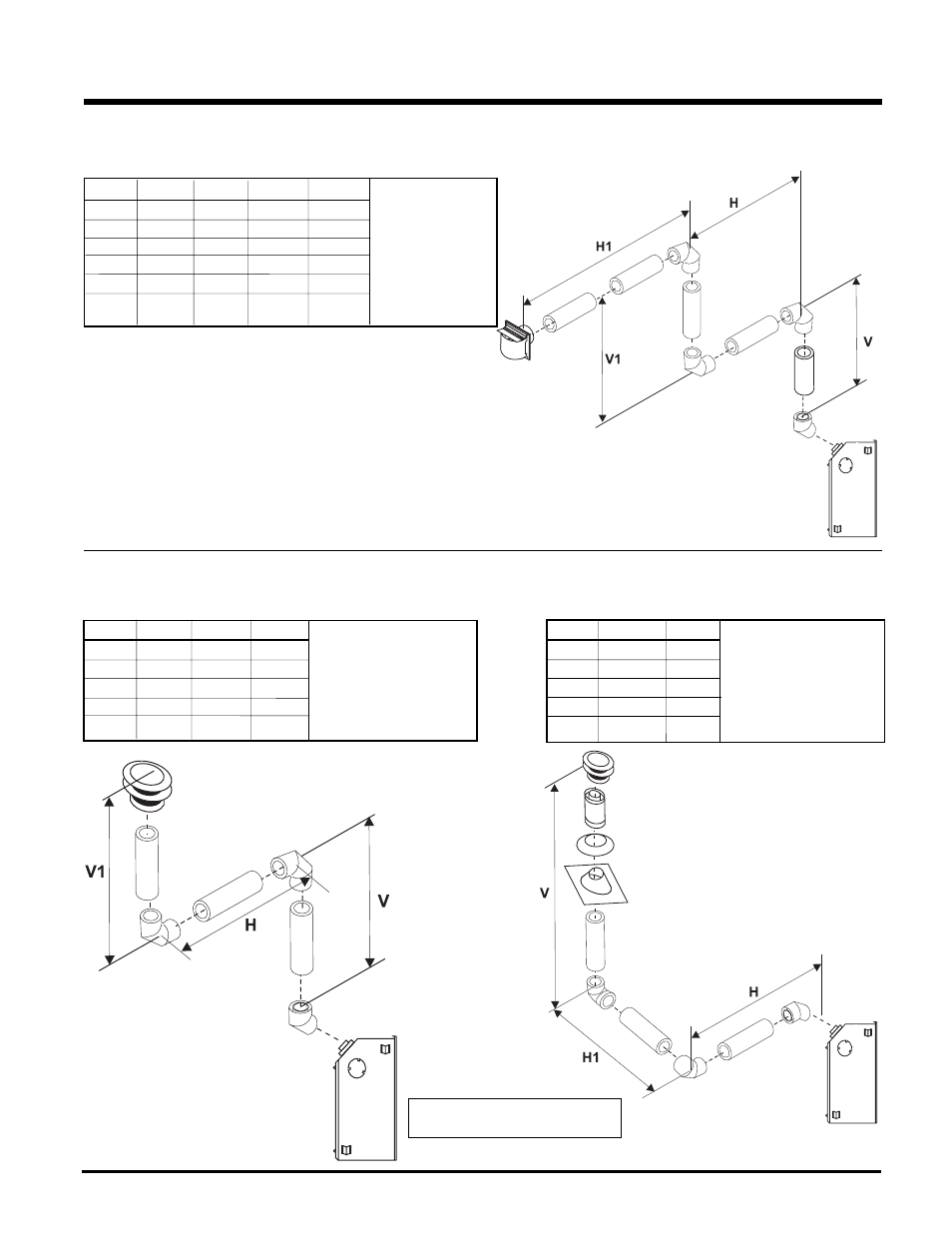

Horizontal Venting with Three (3) 90 o Elbows
Vertical Venting with Two (2) 90 o Elbows
Option V H V + V1
A) 1' Min. 4' Max. 2' Min.
B) 2' Min. 5' Max. 3' Min.
C) 3' Min. 6' Max. 4' Min.
D) 4' Min. 7' Max. 5' Min.
E) 5' Min. 8' Max. 6' Min.
Vertical Venting with Two (2) 90 o Elbows
Option H + H1 V
A) 2' Max. 2' Min.
B) 3' Max. 3' Min.
C) 4' Max. 4' Min.
D) 5' Max. 5' Min.
E) 6' Max. 6' Min.
INSTALLATION
One 90 o elbow = Two 45 o elbows.
One 90 o elbow = Two 45 o elbows. One 90 o elbow = Two 45 o elbows.
Option V H V + V1 H + H1
A) 2' Min. 1' Max. 3' Min. 4' Max.
B) 3' Min. 2' Max. 4' Min. 5' Max.
C) 4' Min. 3' Max. 6' Min. 6' Max.
D) 5' Min. 4' Max. 8' Min. 7' Max.
E) 6' Min. 5 Max. 10' Min. 8' Max.
F) 7' Min. 6' Max. 12' Min. 9' Max.
With these options,
max. total pipe length
is 30 feet with min. of
12 feet total vertical
and max. 9 feet total
horizontal.
Please note min. 1
foot between 90
o
elbows is required.
With these options, max. total
pipe length is 30 feet with min.
of 6 feet total vertical and max.
8 feet total horizontal.
Please note min. 1 foot
between 90
o elbows is re-
quired.
With these options, max. total
pipe length is 30 feet with min.
of 6 feet total vertical and max.
6 feet total horizontal.
Please note min. 1 foot
between 90
o elbows is
required.
For additional vertical venting with 2
x 90
o elbows, refer to page 15.
