Control Panel
21
1
Control Panel

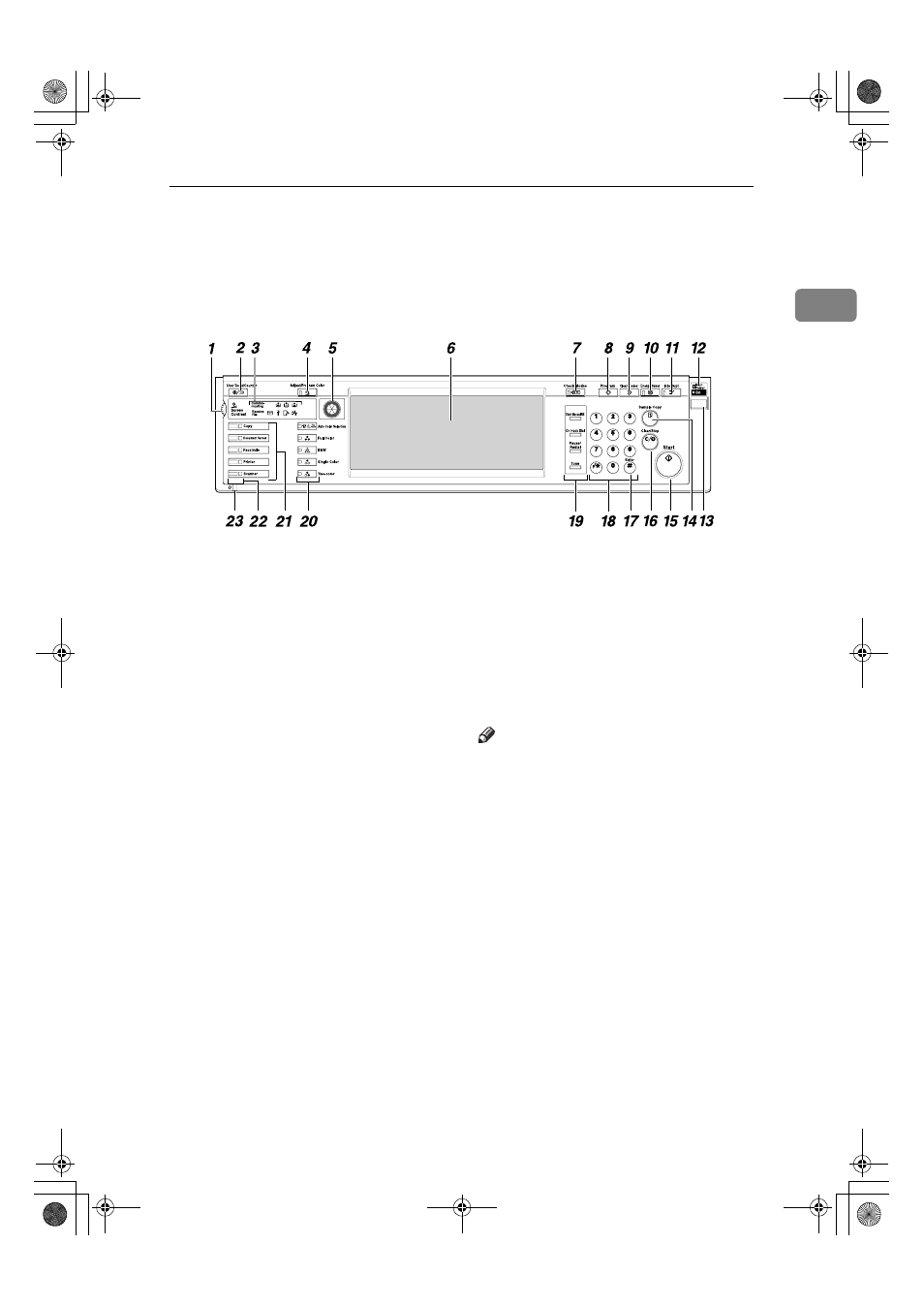

This illustration shows the control panel of a machine with options fully in-
stalled.
1. Screen contrast knob
Adjusts display panel brightness.
2. {{{{User Tools/Counter}}}} key
• User Tools
Press to change defaults and condi-
tions to meet your requirements. See
p.52 “Accessing User Tools (System
Settings)”.
• Counter
Press to check or print the counter val-
ue. See p.149 “Counter”.
3. Indicators
Display the status of the machine or indi-
cate errors.
•
d: Add Staple indicator. See p.129
“
d Adding Staples”.
•
D: Add Toner indicator. See p.115
“
DAdding Toner”.
• B: Load Paper indicator. See p.112
“
BLoading Paper”.
• L: Service Call indicator
• M: Open Cover indicator
•
x: Misfeed indicator. See p.119
“
xClearing Misfeeds”.
• Communicating: Communicating in-
dicator. See “Control Panel”, Facsimile
Reference .
• i: Confidential File indicator. See
“Control Panel”, Facsimile Reference
.
• Receive File: Receiving File indicator.
See “Control Panel”, Facsimile Refer-
ence .
4. {{{{Adjust/Program Colour}}}} key (copier
mode)
Use this key to adjust and register col-
ours. See “Colour Adjustment”, “User
Colour”, Copy Reference.
Note
❒ When image quality is adjusted, the
lamp in the {{{{Adjust/Program Colour}}}}
key is lit.
5. Colour circle
Refer to this when adjusting colours. See
“Colour Adjustment”, Copy Reference.
6. Display panel
Displays operation status, error messag-
es, and function menus. See p.23 “Dis-
play Panel”.
7. {{{{Check Modes}}}} key
Press to check the entered copy job set-
tings.
8. {{{{Program}}}} key (copier/facsimi-
le/scanner mode)
Press to register frequently used settings,
or recall registered settings.
ABC DEF
JKL GHI GHI MNO MNO
TUV PQRS PQRS WXYZ WXYZ
