Connections and Setup
8 Chapter 1
Battery Installation
• Remove the battery compartment cover from the back of the remote control.
• Insert batteries. Make sure the polarities (+ and -) are aligned correctly.
• Replace cover.
Connecting an HD Receiver
RCA and PROSCAN HD (high definition) receivers come equipped with an RGB
output jack for optimum quality. Using the RGB cable provided, connect the HD
MONITOR OUT jack on the back of your HD receiver to the RGB1 (HD MONITOR
IN)/AUDIO1 IN jack on the back of the monitor.
If your HD receiver does not have the type of jack pictured, connect your HD
receiver using the component video jacks and RCA cable.
For more information on HD receiver connections, see your HD receiver user’s
manual.

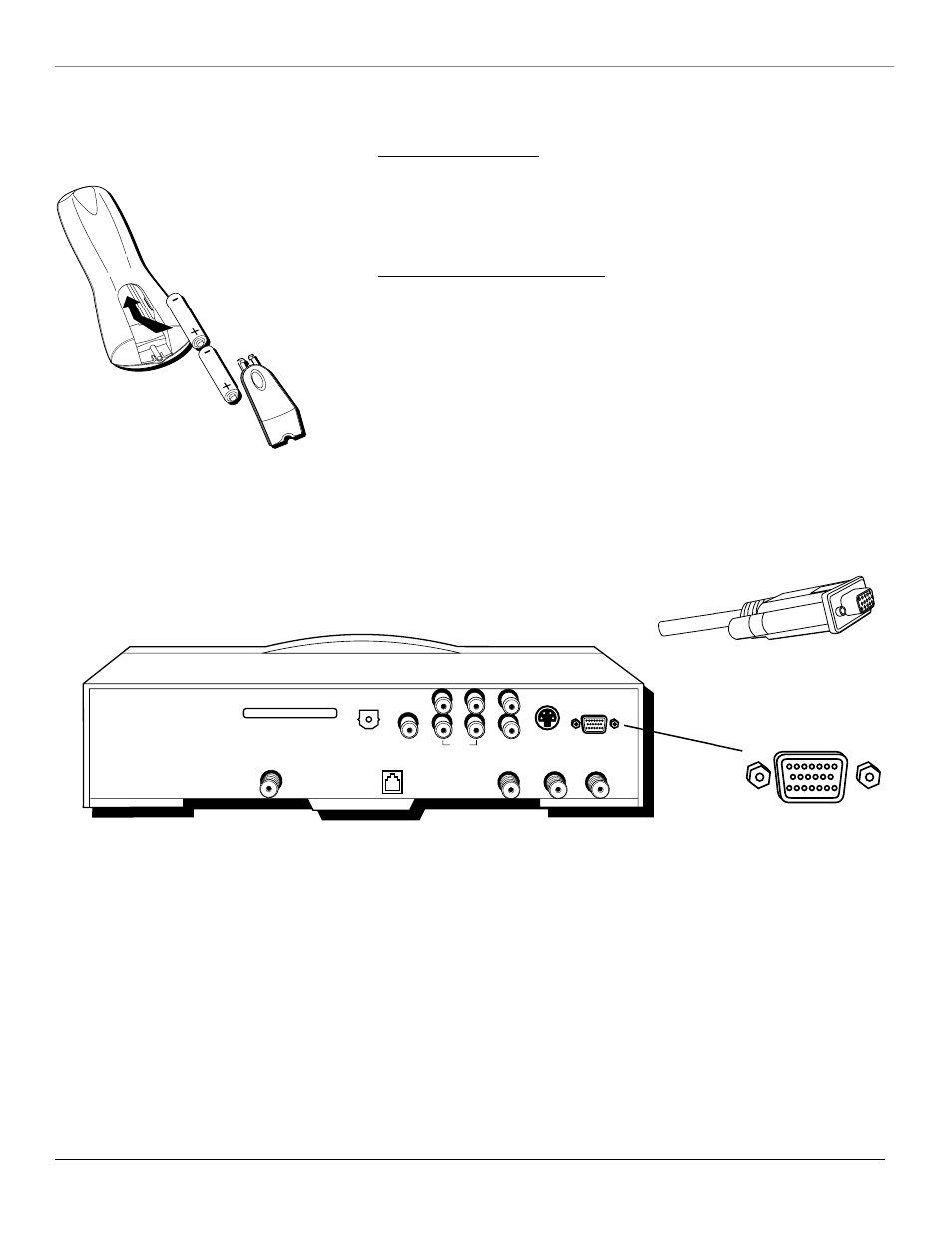

The Back of the HD Receiver
ANTENNA B
IN
ANTENNA A
IN
OUT TO TV
VIDEO S-VIDEO HD MONITOR OUT AUDIO VCR
CONTROL
DIGITAL AUDIO
OUTPUT
PHONE JACK
SATELLITE
IN
ACCESS CARD
R
R
L
L
HD MONITOR OUT jack
RGB cable
Installing the batteries
