Chapter 2 31
The Menu System
The Options menu
Setting the Audio Inputs
The monitor’s audio sources are programmable to each of the monitor’s video sources. For example, you can
program AUDIO1 source to work with the RGB2 video source.
This feature is used if optional speakers are connected and for commercial applications.
: RGB1
: VIDEO1
: CMPNT1
: RGB2
: RGB
: 1080A
: ON
O P T I O N S
SEL.
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
PICTURE SIZE
ADJ. RETURN
: VIDEO1
: CMPNT1
: RGB1
: CMPNT2
: RGB
: 1080A
: ON
O P T I O N S
SEL. ADJ.
AUDIO INPUT
AUDIO1
AUDIO2
AUDIO3
BNC SELECT
RGB SELECT
HD SELECT
PICTURE SIZE
RETURN

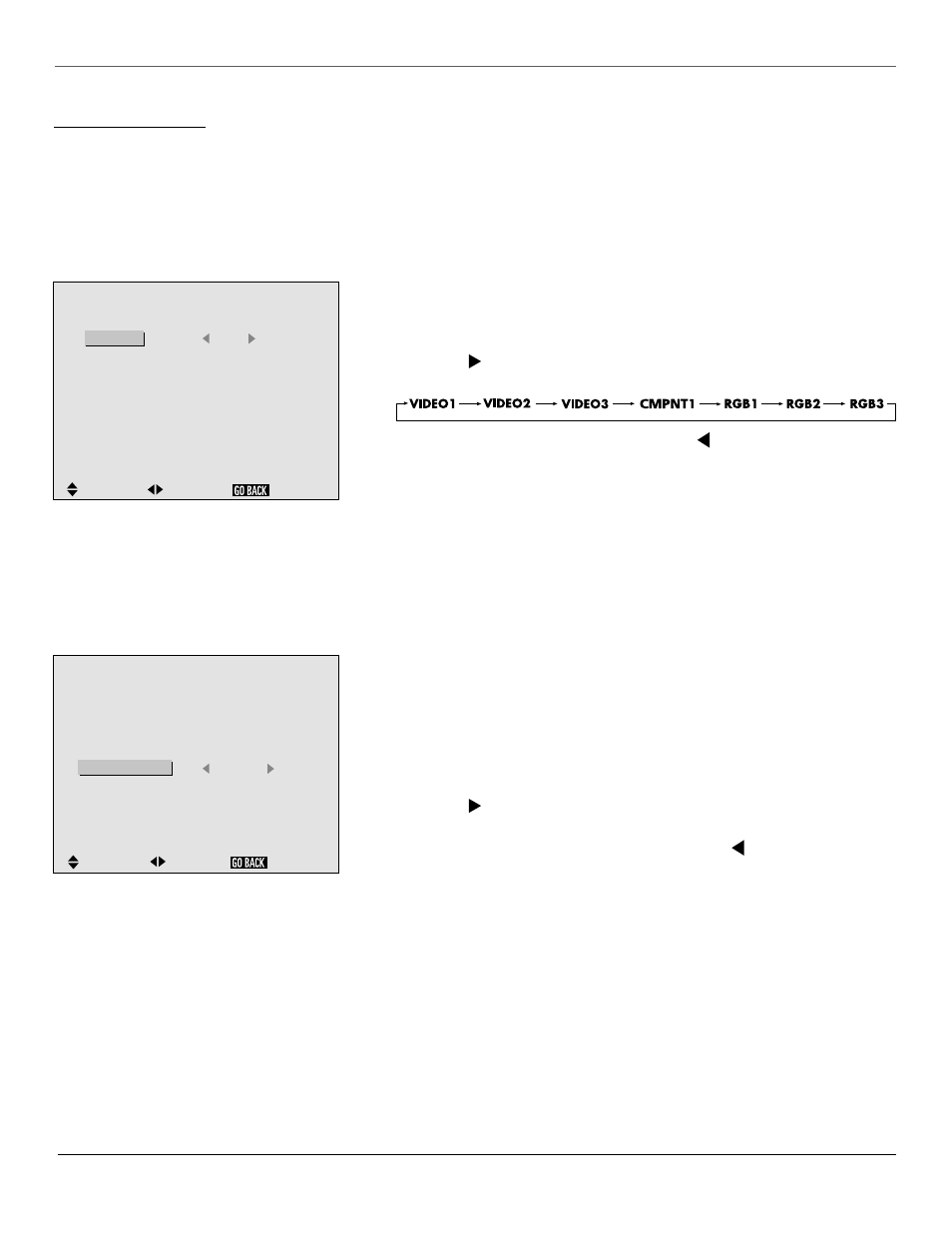

This is the OPTIONS menu with the AUDIO1 input option
highlighted.
This is the OPTIONS menu with the BNC SELECT option
highlighted.
1. From the main menu, highlight and select OPTIONS. The OPTIONS menu is
displayed.
2. Highlight one of the audio input options.
3. Use the button to scroll through the available video sources. The modes
scroll as follows:
4. When the desired mode is selected, press the button to return to the
OPTIONS menu items. You can continue making adjustments within the
OPTION menu, press GO BACK to return to the previous menu or press
MENU or CLEAR to exit the menu system.
The factory defaults are as follows:
• AUDIO1 – VIDEO1
• AUDIO 2 – CMPNT1
• AUDIO3 – RGB1
If you use the reset option in the FUNCTION menu, the settings will return
to the factory default settings listed above.
Setting the BNC Connectors
If the component you are connecting to the monitor doesn’t have composite
video jacks, you can set the BNC inputs to act as component video inputs.
1. From the main menu, highlight and select OPTIONS. The OPTIONS menu is
displayed.
2. Highlight the BNC SELECT option.
3. Use the button to toggle between RGB2 (composite) and CMPNT2.
(component).
4. Once you’ve selected the desired setting, press the button to return to
the OPTIONS menu items or press CLEAR to return to the main menu.
