146
Chapter 4 Creating Patches

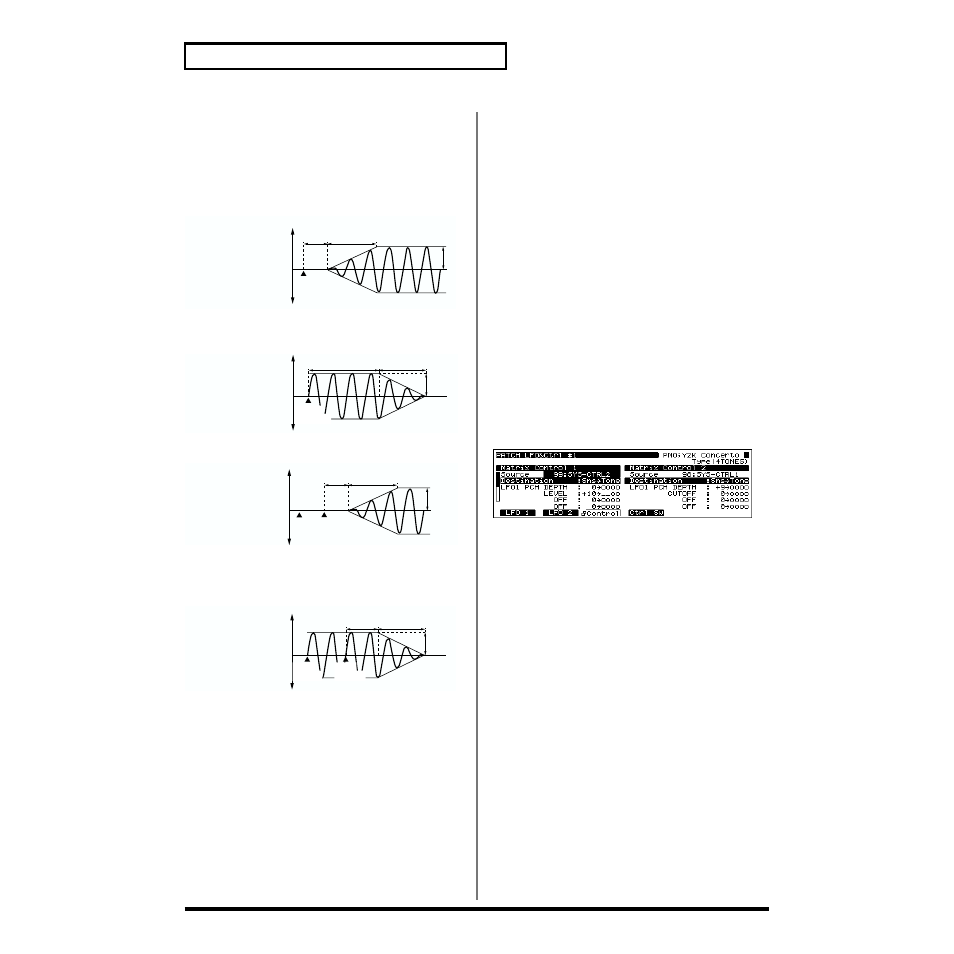

Fade (LFO Fade)
Mode (LFO Fade Mode)
Sets how the LFO will be applied.
Available Settings:
ON-IN: The LFO will fade in after the key is pressed.
fig.04-051.e
ON-OUT: The LFO will be immediately applied when the
key is pressed, and will then fade out.
fig.04-052.e
OFF-IN: The LFO will fade in after the key is released.
fig.04-053.e
OFF-OUT: The LFO will be immediately applied when the
key is pressed, and will begin fading out when the key is
released.
fig.04-054.e
Time (LFO Fade Time)
Range: 0–127
This adjusts the time over which the LFO rises to its full
effect or fades away. (Refer to the diagrams for Fade Mode.)
Key Sync (LFO Key Sync)
Range: OFF/ON
Specifies whether you want the LFO cycle to start in sync
with the timing of a key press (ON), or not (OFF).
Depth (LFO Depth)
Pitch (Pitch LFO Depth)
Range: -63– +63
Adjusts how much the LFO will affect the WG Pitch.
TVF (TVF LFO Depth)
Range: -63– +63
Adjusts how much the LFO will affect the Tone’s TVF cutoff
frequency.
TVA (TVA LFO Depth)
Range: -63– +63
Adjusts how much the LFO will affect the Tone’s TVA Level.
Pan (Pan LFO Depth)
Range: -63– +63
Adjusts how much the LFO will affect the Tone’s TVA Pan.
PATCH LFO&Ctrl #1/#2 page ([PATCH]
- [F5 (LFO&Ctl)] - [F3 (Control)])
fig.04-055.e_70
Matrix Control 1–4
Source (Matrix Control Source)
Assign one of the following controllers to Matrix Control
Source. If you wish to use a controller that will apply to all
Patches, or a controller that cannot be directly selected here,
select SYS-CTRL1–4, and then select the controller using the
System Control Source parameters (System Control Screen).
Available Settings:
OFF: No controller is used.
CC01–CC95: Controller numbers 1–95 (except for 32)
PITCH BEND: Pitch Bend
AFTERTOUCH: Aftertouch
SYS-CTRL1: System controller 1
SYS-CTRL2: System controller 2
SYS-CTRL3: System controller 3
SYS-CTRL4: System controller 4
VELOCITY: Velocity
KEYFOLLOW: Keyfollow
TEMPO: Tempo
LFO1
LFO2
key is
pressed
high (more)
low (less)
WG Pitch /
TVF Cutoff Frequency /
TVA Level / TVA Pan
Delay
Time Fade
Time
Depth
key is
pressed
high (more)
low (less)
WG Pitch /
TVF Cutoff Frequency /
TVA Level / TVA Pan
Delay Time Fade Time
Depth
high (more)
low (less)
WG Pitch /
TVF Cutoff Frequency /
TVA Level / TVA Pan
Delay
Time Fade
Time
Depth
key is
pressed key is
released
key is
pressed
high (more)
low (less)
WG Pitch /
TVF Cutoff Frequency /
TVA Level / TVA Pan
Delay
Time
Fade
Time
Depth
key is
released
