120
Chapter 3 Selecting Output Jacks
Eight-Channel R-BUS Digital Connection

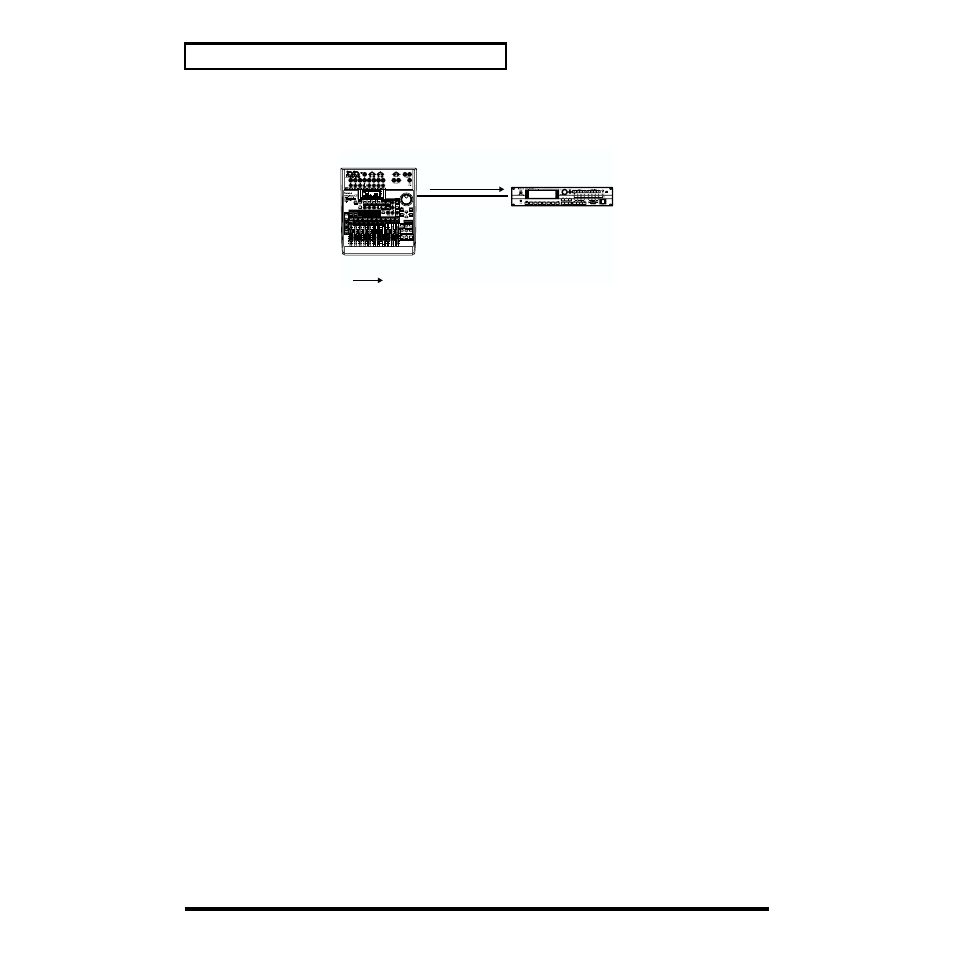

fig.RBUS-1.e
XV-5080 ——–> Device Equipped with R-BUS Connector (One Example)
When Making the XV-5080 the Word Clock Master
• XV-5080 Settings
Master Clock: INTERNAL
Master Freq: 44.1 or 48.0 kHz (set to match the sampling rate of the connected device)
• VM-3100 Pro R-BUS Settings
MasterClk: RMDB-2
• VM-7100/7200 R-BUS Settings
WORD CLOCK SOURCE:MULTI 1-8
• VSR-880 R-BUS Settings
SYS:MasterClk:R-BUS
When Making the XV-5080 the Word Clock Slave
• XV-5080 Settings
Master Clock: RBUS
• VM-3100 Pro R-BUS Settings
MasterClk: INTERNAL
• VM-7100/7200 R-BUS Settings
WORD CLOCK SOURCE:INTERNAL
• VSR-880 R-BUS Settings
SYS:MasterClk:INT
VM-3100Pro
R-BUS
XV-5080
W
Word Clock W
