HE-S ERIES I NSTALLATION , O PERATION AND S ERVICE M ANUAL
46

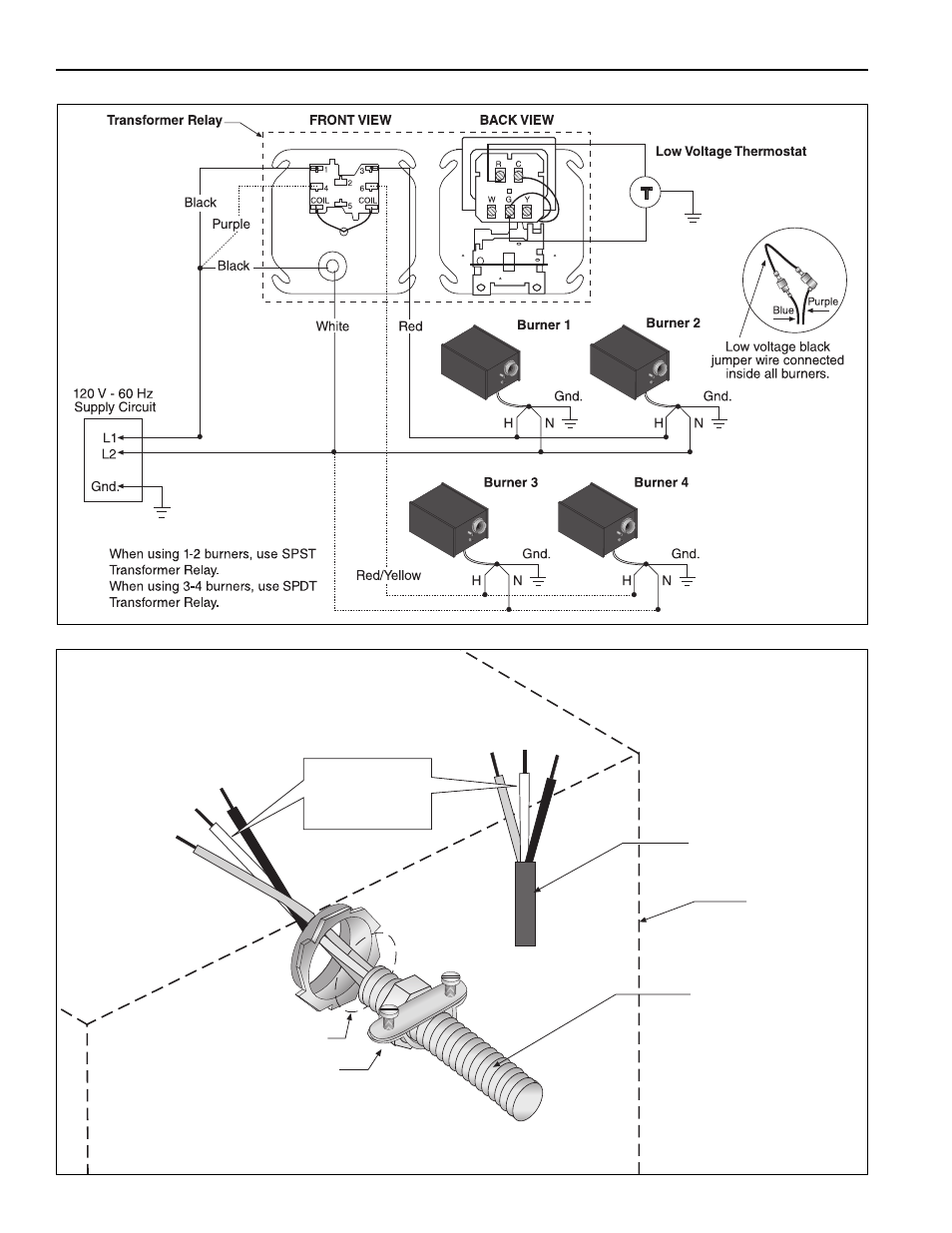

10.3 Low Voltage Thermostat Wiring with Multiple Burners
10.4 Electrical Connection to the Burner Box using Line Voltage Thermostat on Control
Green
White
Black
L1
L2
Gnd.
Conduit Hole
Burner Box
Internal Wire Bundle
Connect wires together with
suitable approved wire connections.
Green to Gnd.
White to L2
Black to L1
Liquid Tight Flexible
Conduit for Outdoor
Use or Equivilent
Liquid Tight
Conduit Connector
