SECTION 6: H EATER I NSTALLATION
23

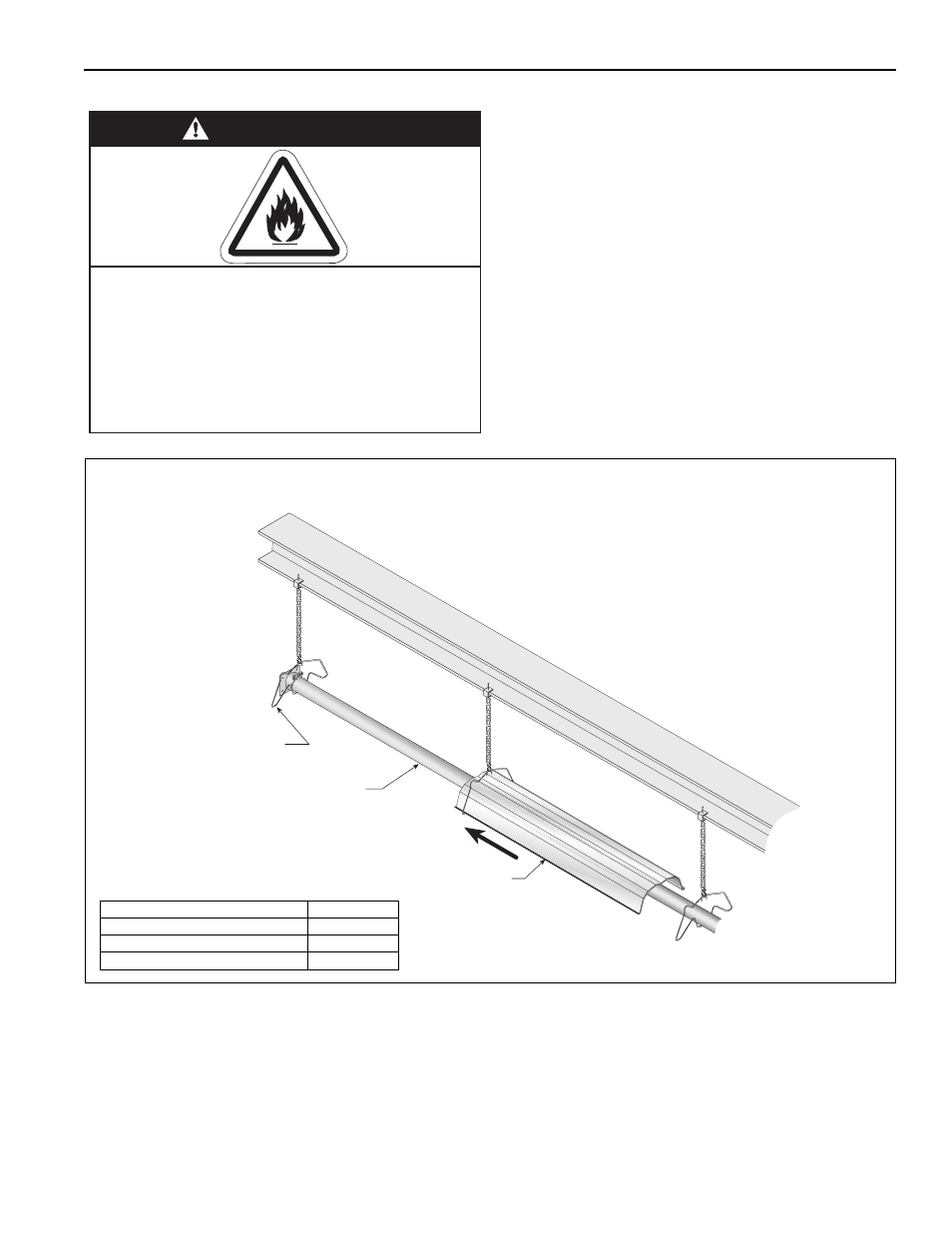

Step 6.6 Reflector Installation
WARNING
Fire Hazard
Support reflector with reflector hanger
and support strap.
Reflector must not touch tube.
Failure to follow these instructions can result
in death, injury or property damage.
Hanger
Burner Tube
Reflector
Description Part Number
Tube/Reflector Hanger 03090100
Burner Tube 03051XXX
Reflector 02750303
NOTE: All tube surfaces must be covered
by a reflector, except for a U-Tube.
Hanging hardware shown is for indoor
installation only.
See Page 17, Figure 15
for outdoor suspension details.
