Page 38: 5 two-foot decorative grille installation
HE-S
ERIES
I
NSTALLATION
, O
PERATION
AND
S
ERVICE
M
ANUAL
32

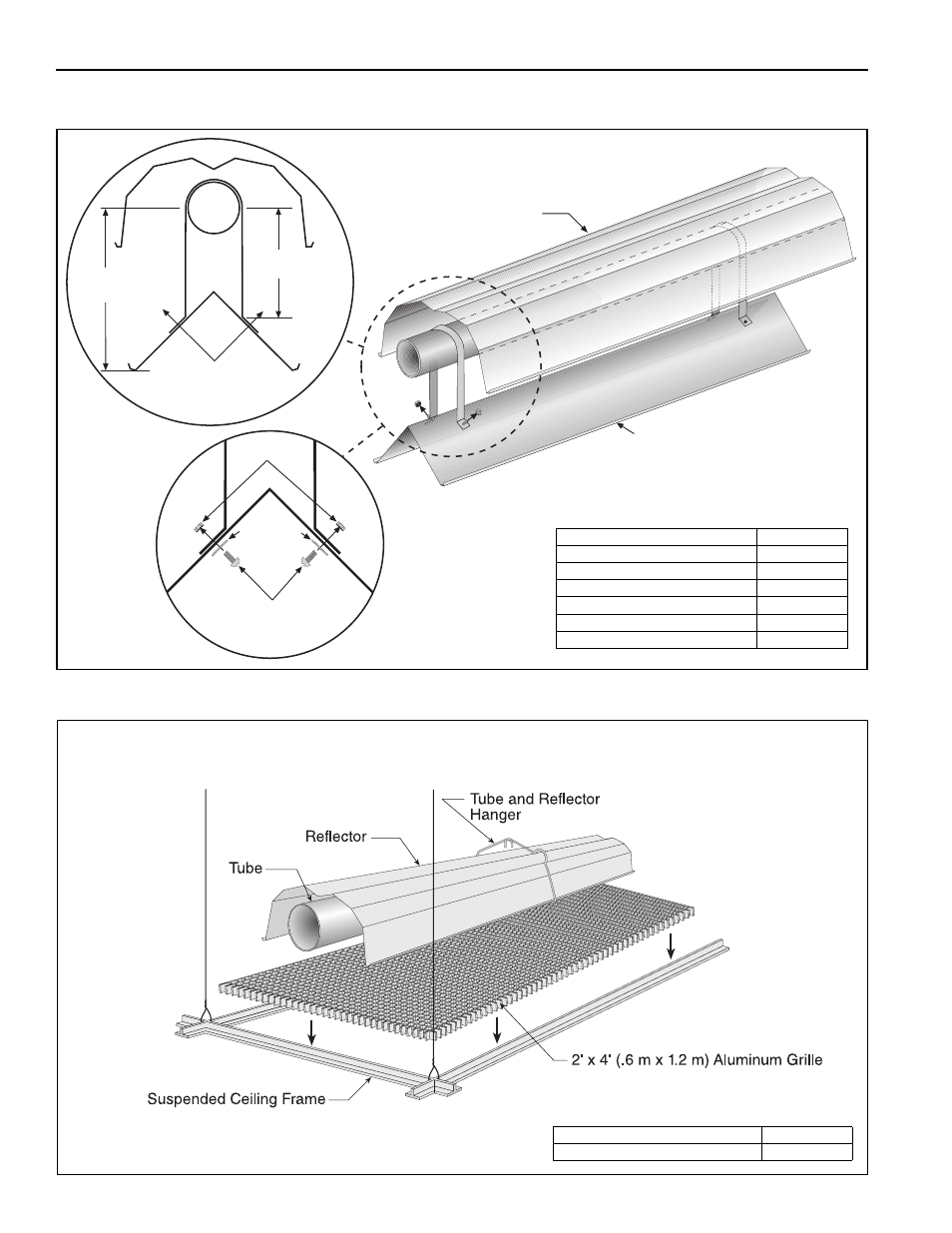

7.4 Lower Clearance Shield Installation (Not For Outdoor Use)
Step 7.4.1 Shield Support Strap Assembly
7.5 Two-Foot Decorative Grille Installation (Not For Outdoor Use)
Step 7.5.1 Grille Installation
12"
(30 cm)
Reflector
Lower Clearance Shield
17"
(43 cm)
Washers
Screws
Locknuts
Align Pilot Holes
Description
Part Number
Lower Clearance Shield Package
01397501
Shield Support Strap
01397500
Lower Clearance Shield 8'
02793000
Locknut #8
92311400
Flat Washer #8
95310800
Screw #8 x 3/8"
93511406
Description
Part Number
Aluminium Grille 2' x 4' (.6m x 1.2m)
91407000
