HE-S ERIES I NSTALLATION , O PERATION AND S ERVICE M ANUAL
34

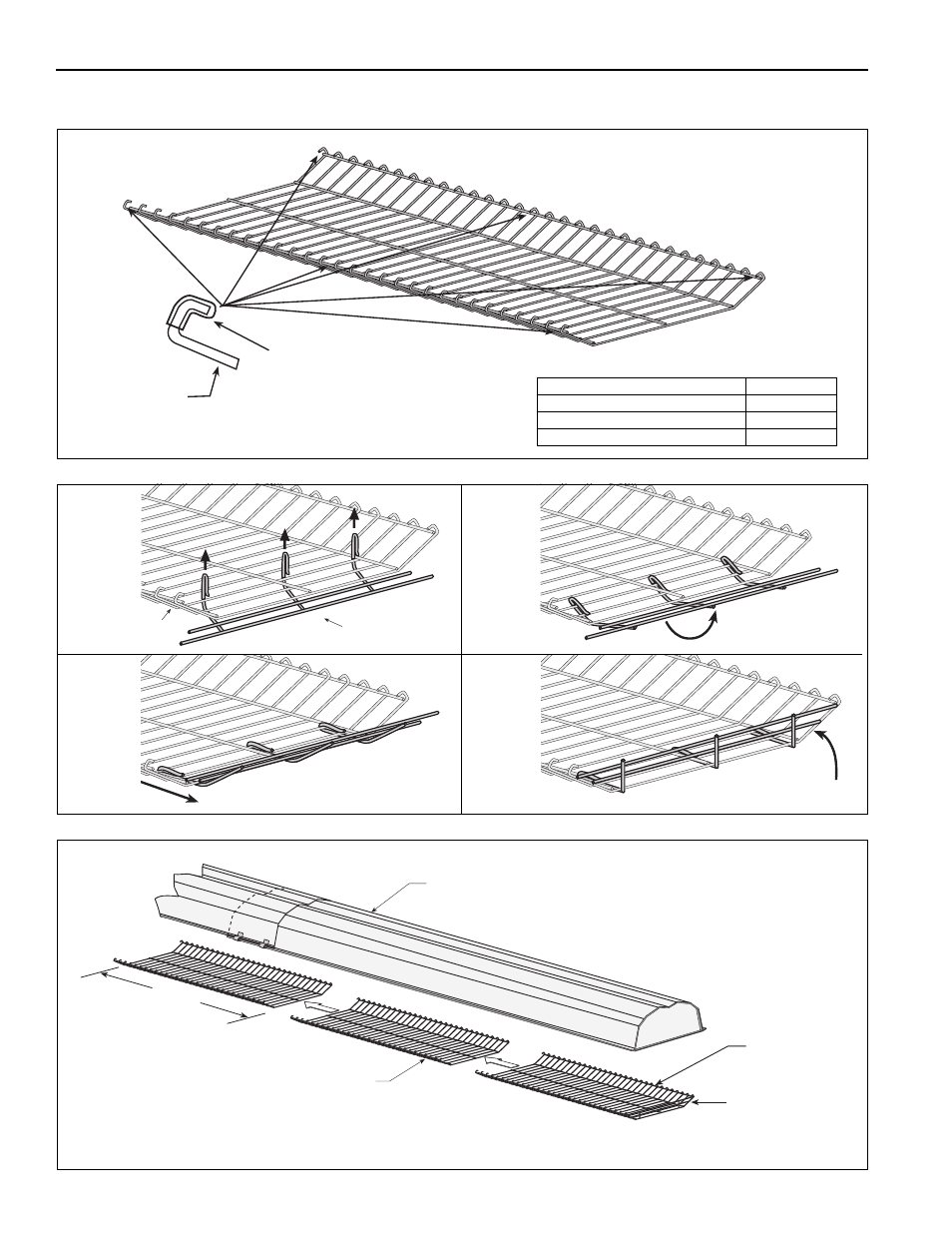

7.6 Protective Grille Installation (Not For Outdoor Use)
Step 7.6.1 Silicone Cap Installation
Step 7.6.2 Grille End Cap Installation
Step 7.6.3 Grille Installation
Silicone Cap
Grille
Finger
Description Part Number
Grille Section 08050001
Grille End Cap 08050002
Silicone Cap 91915951-6P
Bend up 90°.
Pull outward.
Grille Grille End Cap
A B
C D
Grille
Grille
End Cap
Reflector
Final Grille
Section
40"
(101 cm)
