SECTION 6: H EATER I NSTALLATION
19

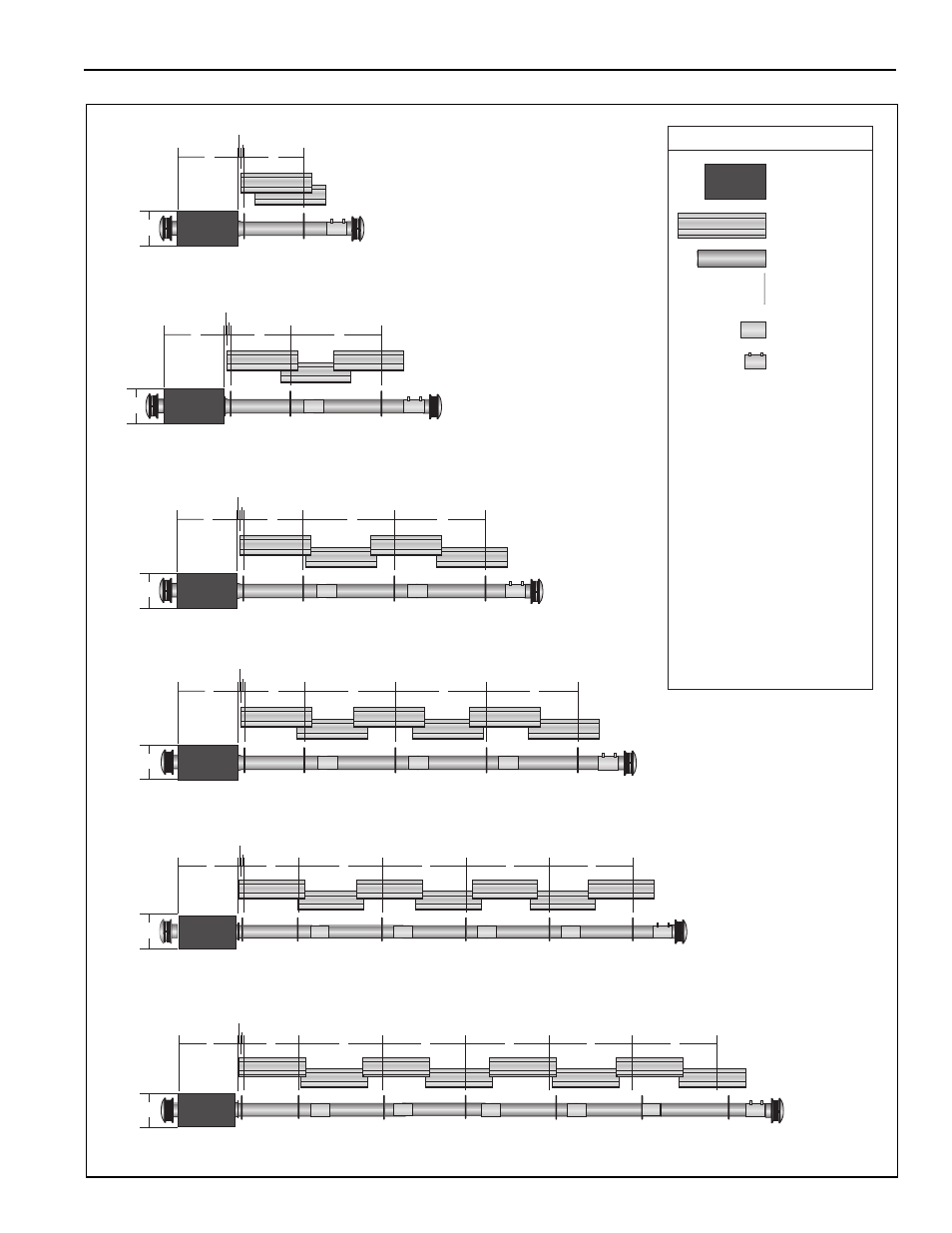

FIGURE 17: Linear Heater Layout Overview
Burner
Reflector
Tube
Tube/Reflector
Hanger
Coupling
Assembly
Vent Adapter
LEGEND
a = 14" (36 cm)
reflector width (not shown)
b = 2" (5 cm)
end cap to burner
c = 2" (5 cm)
end cap to hanger
d = 7'6" (2.3 m)
distance from first hanger
to second hanger
e = 10' (3 m)
distance between hangers
f = 9.5" (24 cm)
burner height
g = 17.5" (44 cm)
burner length
HE-40 10' (3 m) Tube Length
g
c
b
d
f
HE-60
HE-80
20' (6 m) Tube Length
b
g
c
d e
f
HE-100 30' (9 m) Tube Length
g
c
b
d e e
f
HE-125 40' (12 m) Tube Length
g
c
b
d e e e
f
HE-175 60' (18 m) Tube Length
g
c
b
d e e e e e
f
HE-150 50' (15 m) Tube Length
g
c
b
d e e e e
f
