SECTION 7: O PTIONAL H EATER A CCESSORIES
31
7.3 Reflector Side Extension (Not For Outdoor Use)

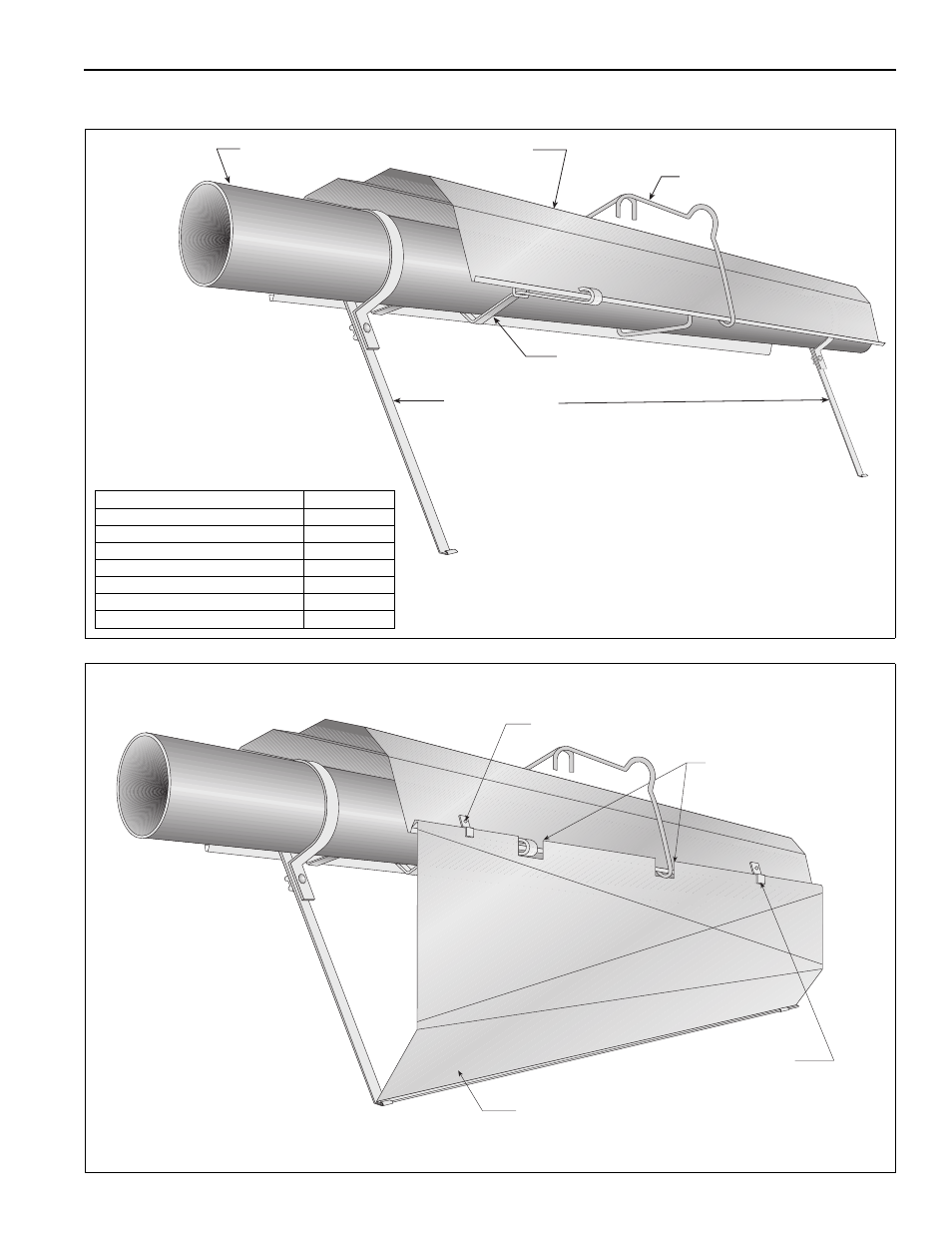

Step 7.3.1 Bracket Installation
Step 7.3.2 Side Reflector Installation
Reflector Side
Extension Bracket
(2 per Reflector)
Use additional supports
in high air movement
applications.
Tube and Reflector Hanger
Reflector Tube
Reflector Support
Description Part Number
Reflector Side Extension Package 02712700
Reflector Side Extension 01368000
Retainer Clips 02751200
Sheet Metal Screws 94118106
Order Separately
Reflector Side Extension 01329910
Retainer Clip
(2 per Side)
Cut relief notches for
supports and hangers.
Reflector Side Extension
#8 x 3/8 (3.9 x 9.5 mm) Sheet Metal Screw
