Runco VX-44d/-55d Installation/Operation Manual
37
PRE
L
IMINAR
Y
Connecting 12-volt
Trigger Outputs to
External Equipment
If your VX-44d/-55d is equipped with a CineWide with AutoScope system, connect the
AutoScope lens motor to a 12-volt trigger output on the DHD Controller; see Figure 3-16.
Similarly connect other 12-volt trigger-activated equipment (such as retractable screens or
screen masks) to the other trigger outputs.

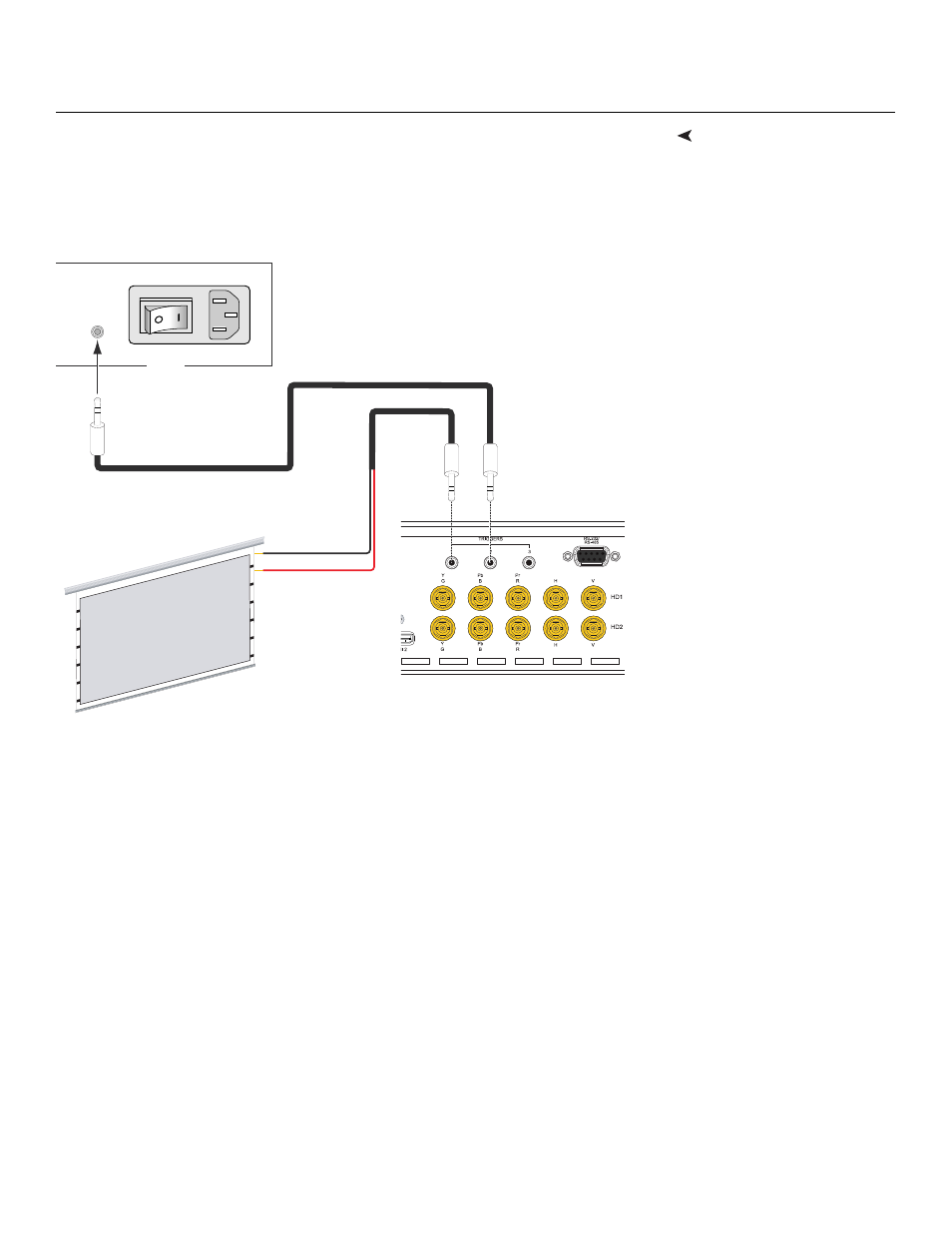

Figure 3-16. Connecting 12-volt Trigger Outputs
Tip = +12V
Sleeve = Ground
AutoScope Lens Motor
3.5-mm
mini plug
AC Input
Power
Switch
Retractable Screen or other
12-volt trigger-activated
device
