3.7
Connections to the
VX-44d/-55d and DHD
Controller Proceed as follows to connect the DHD Controller to the VX-44d/-55d, your video
sources, external controller(s) – if present – and AC power.
When connecting your equipment:
• Turn off all equipment before making any connections.
• Use the correct signal cables for each source.
• Ensure that the cables are securely connected. Tighten the thumbscrews on
connectors that have them.
Connector Panel Access To access the connector panel, pull firmly on the cable access cover to open it.
Connecting the DHD
Controller to the
VX-44d/-55d Digital Video Connection: Connect the HDMI Output of the DHD Controller to INPUT 2
(DVI) of the VX-44d/-55d as shown in Figure 3-8.

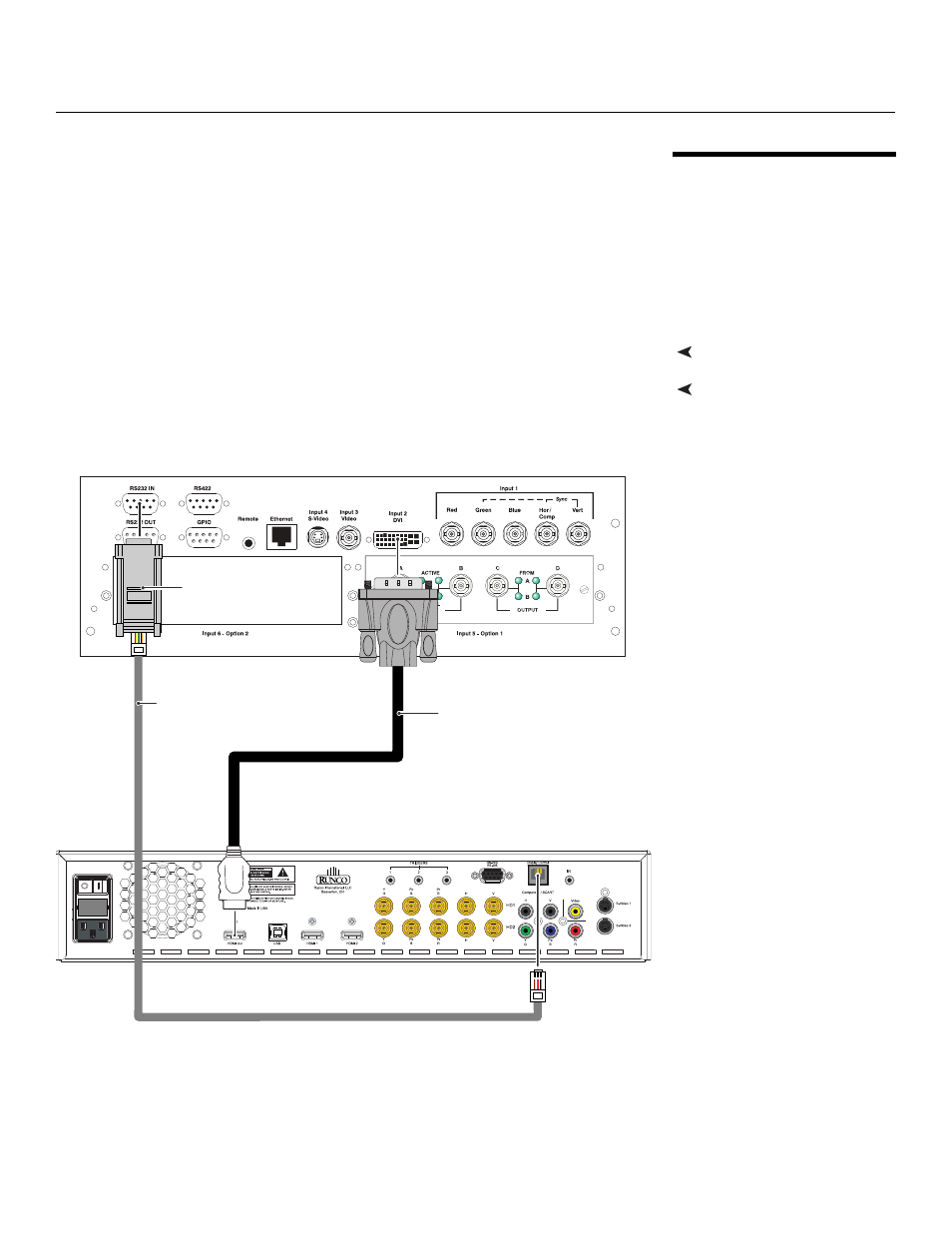

Figure 3-8. Connecting the VX-44d/-55d to the DHD Controller
RS-232 OUT
DHD Controller
VX-44d/VX-55d Input Panel
HDMI OUT
RS-232
Communication
Cable
(provided)
RJ-11
to DB-9
Adapter
(provided)
DVI-to-HDMI Cable
(not provided)
