12
Runco VX-44d/-55d Installation/Operation Manual
PRE
L
IMINAR
Y
2.5
DHD Controller Rear
Panel

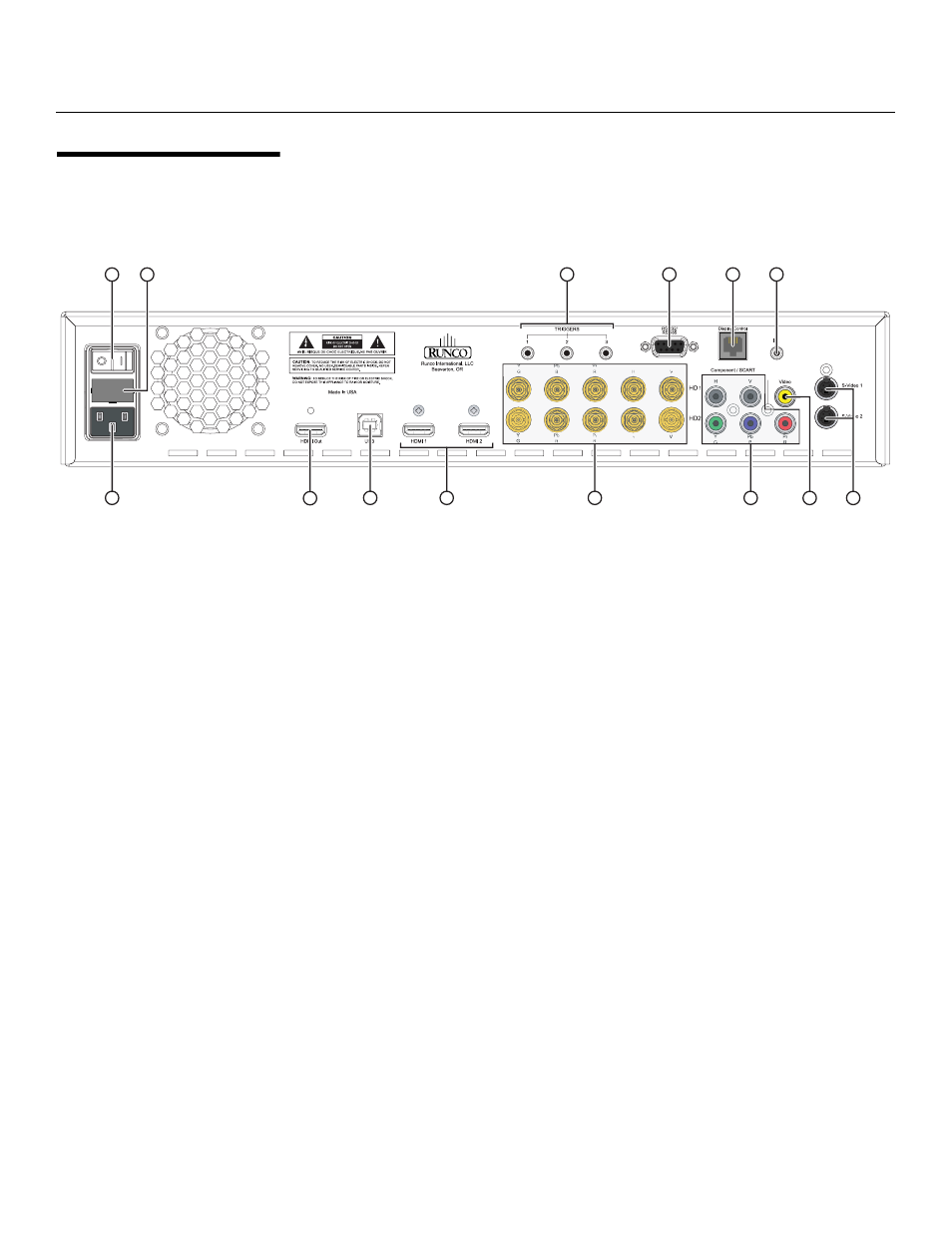

Figure 2-5 shows the rear connector panel on the DHD Controller.
Figure 2-5. DHD Controller Rear Panel
Outputs
1.
HDMI Out
Connect this to Input 2 (DVI) on the VX-44d/-55d (see Figure 2-2).
2.
Display Control
Connect this to the RS-232 IN input on the VX-44d/-55d, using the provided
communication cable.
3.
TRIGGERS
Connection for up to three (3), 12-volt trigger-controlled devices such as retractable
screens, screen masks or a CineWide with AutoScope system. Output current is
limited to 250 milliamperes (mA).
1
5
6
4
14
2
3
10
11
7
8
9
12
13
➤
