(9) Confirm the connection of the PWR CNT CA-A and power output cables as shown in

Figure 003-10

(These cables are pre-installed).

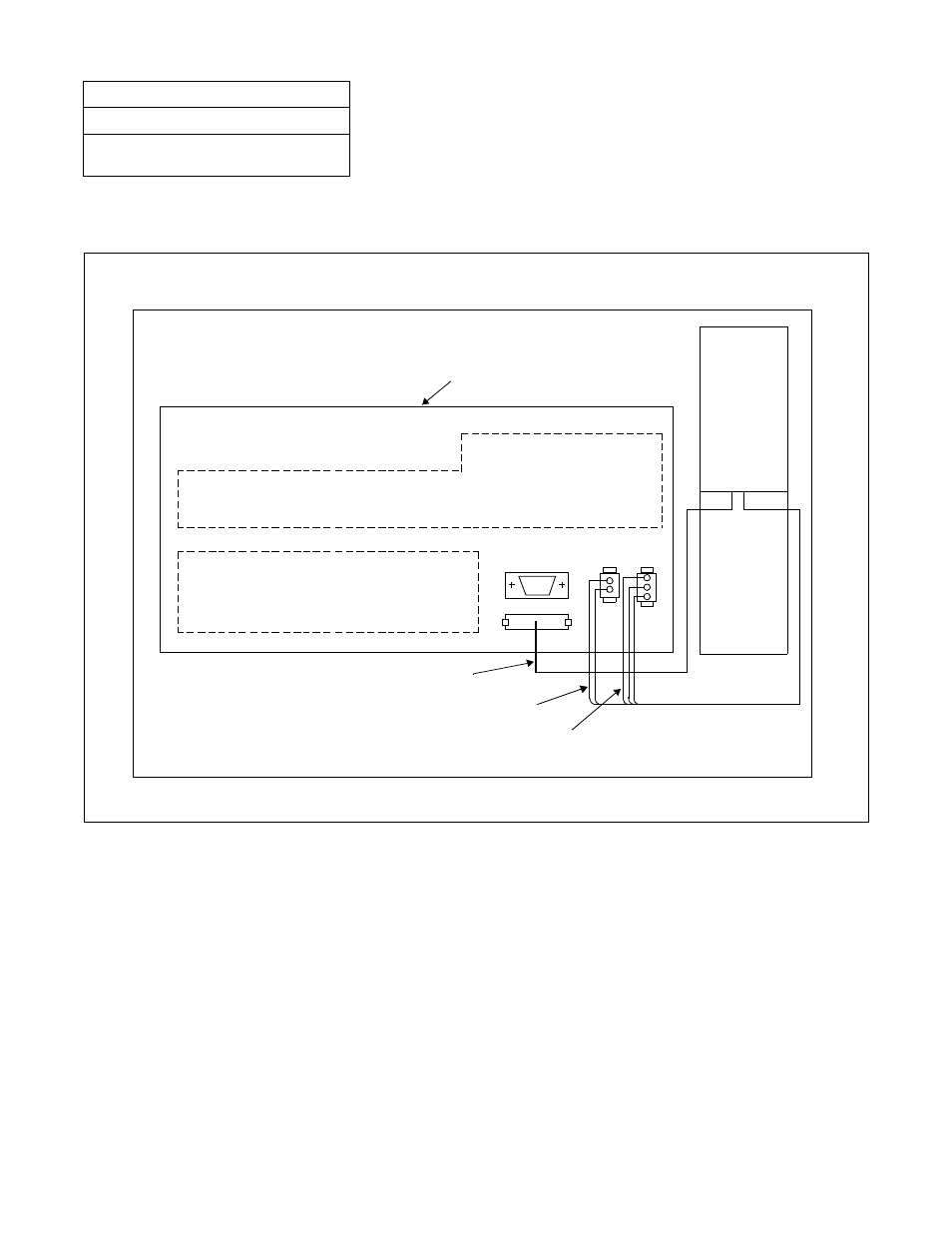

Figure 003-10 Cable Connection between the PZ-PW86 and the BWB

NAP 200-003

Sheet 12/37

Installation of Main Equipment

LTC CONNECTOR AREA

PIM

BWB (Back Wiring Board)

PZ-PW86

PWR0B PWR0A

RS

PWR1

PWR CNT CA-A

POWER OUTPUT CABLE (CR,E)

POWER OUTPUT CABLE (+5V, -27V, E)

CARD SLOT AREA
