CHAPTER 3 INSTALLATION

User’s Manual U16214EJ1V0UM

33

3.3

Mask Option Setting

3.3.1 LCD booster

When shipped, an LCD drive booster is mounted on the parts board in the LCD MOPT (IC2) socket of the IE-

780338-NS-EM1.

To change the LCD drive booster, mount the resistors or capacitors necessary for the parts board or others

provided with this product in the LCD MOPT socket.

Figure 3-16 shows the LCD drive booster.

Caution The booster on the target system cannot be used.

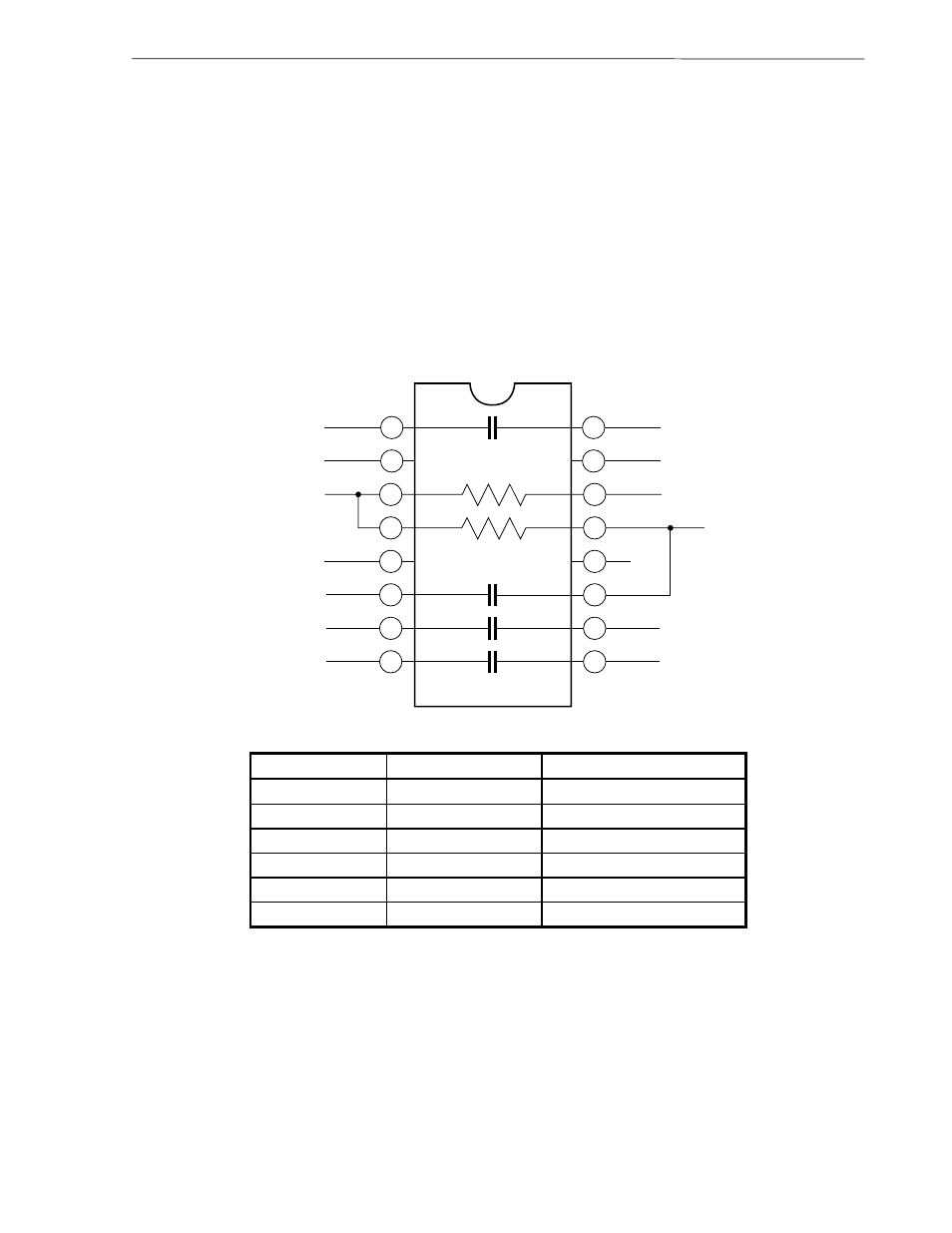

Figure 3-16. LCD MOPT Socket (IC2)

Connection Pins

Part Used

Parts Board at Shipment

1-16

Capacitor C1

0.47

µ F

3-14

Resistor R2

2 M

4-13

Resistor

R1

1 M

6-11

Capacitor C2

0.47

µ F

7-10

Capacitor C3

0.47

µ F

8-9

Capacitor C4

0.47

µ F

1

2

3

4

5

6

7

8

16

15

14

13

12

11

10

9

CAPL

N.C.

V

LCDC

N.C.

GND

GND

GND

V

LC0

V

LC1

N.C.

V

LC2

GND

N.C.

CAPH

C1

C2

C3

C4

R1

R2
