CHAPTER 3 INSTALLATION

User’s Manual U16214EJ1V0UM

29

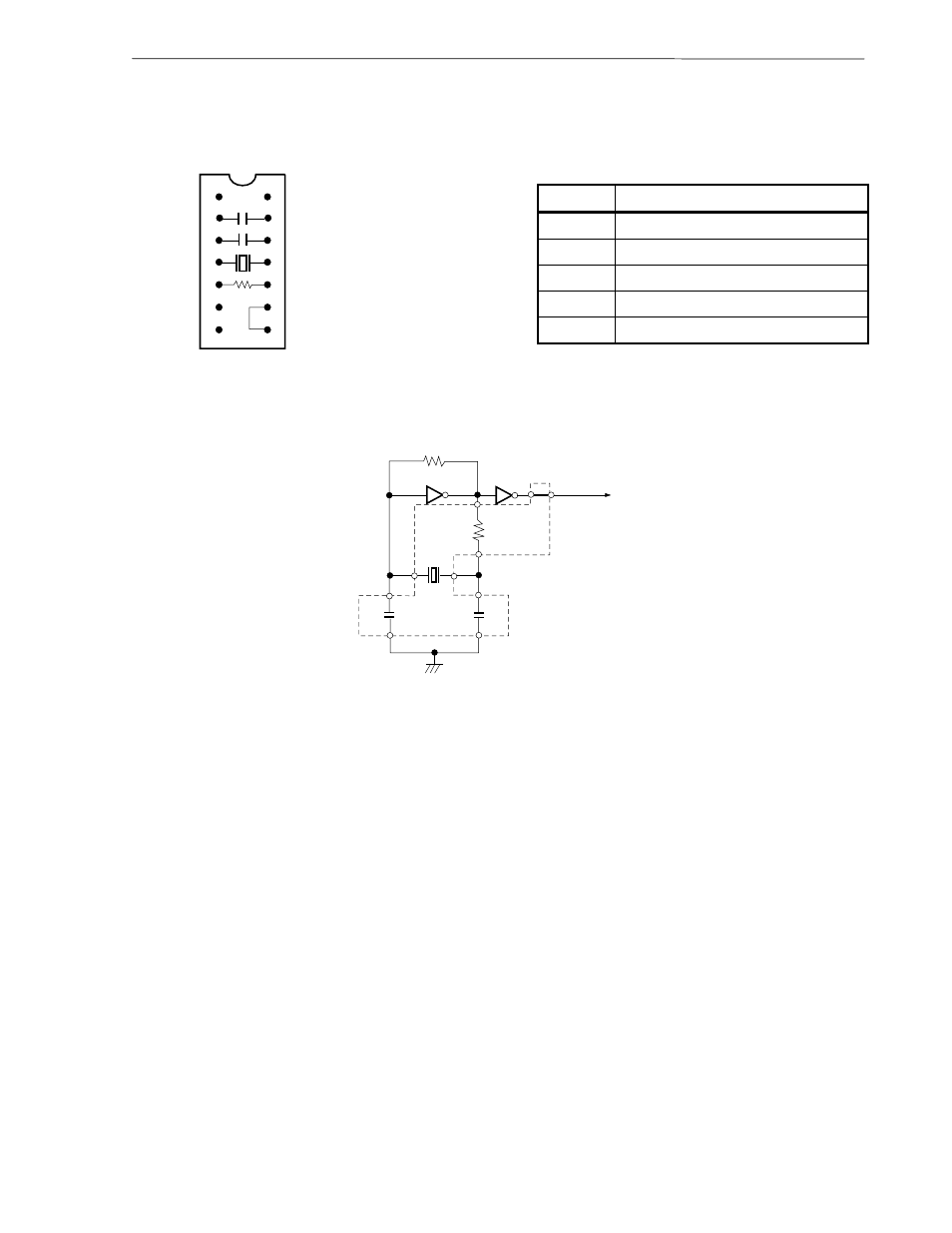

Figure 3-13. Connections on Parts Board (When Using Subsystem Clock or User-Mounted Clock)

Parts board (X2)

Pin No.

Connection

2-13

Capacitor CA

3-12

Capacitor CB

4-11

Ceramic resonator or crystal resonator

5-10

Resistor Rx

8-9

Short

Circuit diagram

Remark

The sections enclosed in broken lines indicate parts that are attached to the parts board.

1

2

3

4

5

6

7

14

13

12

11

10

9

8

10 M

11

4

3

12

CB

CA

13

2

5

10

Rx

9 8

CLOCK OUT

HCU04

HCU04
