CHAPTER 3 INSTALLATION

User’s Manual U16214EJ1V0UM

19

<2> Connect the emulation probe SWEX-120SE-1 to CN5 of the IE-780338-NS-EM1.

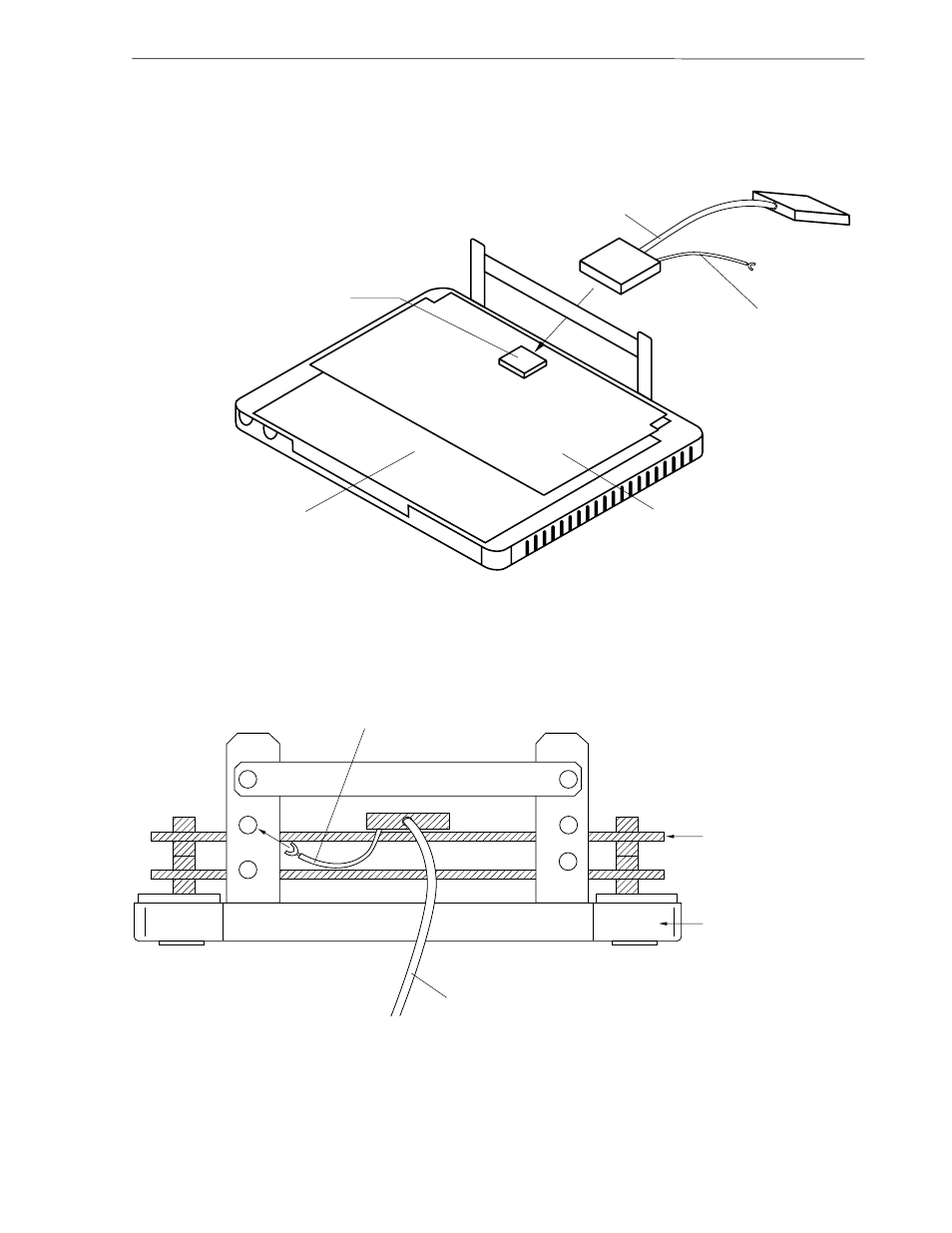

Figure 3-2. Emulation Probe Connection

<3> Unfasten one of the screws on the metal board on the probe side of the IE-78K0-NS or IE-78K0-NS-A

and connect and screw on the tip of the FG cable.

Figure 3-3. Connection Between FG Cable and In-Circuit Emulator

Main board of IE-78K0-NS (sold separately)

or

IE-78K0-NS-A (sold separately)

Emulation board
IE-780338-NS-EM1

Emulation probe
SWEX-120SE-1 (sold separately)

CN5

FG cable (supplied with
IE-780338-NS-EM1)

IE-780338-NS-EM1

IE-78K0-NS

or

IE-78K0-NS-A

FG cable (supplied with IE-780338-NS-EM1)

Emulation probe
SWEX-120SE-1 (sold separately)
