CHAPTER 3 INSTALLATION

User’s Manual U16214EJ1V0UM

21

(1) Clock that is already mounted on emulation board

(a) For main system clock

A crystal oscillator (X1) is already mounted on the emulation board. Its frequency is 10.0 MHz.

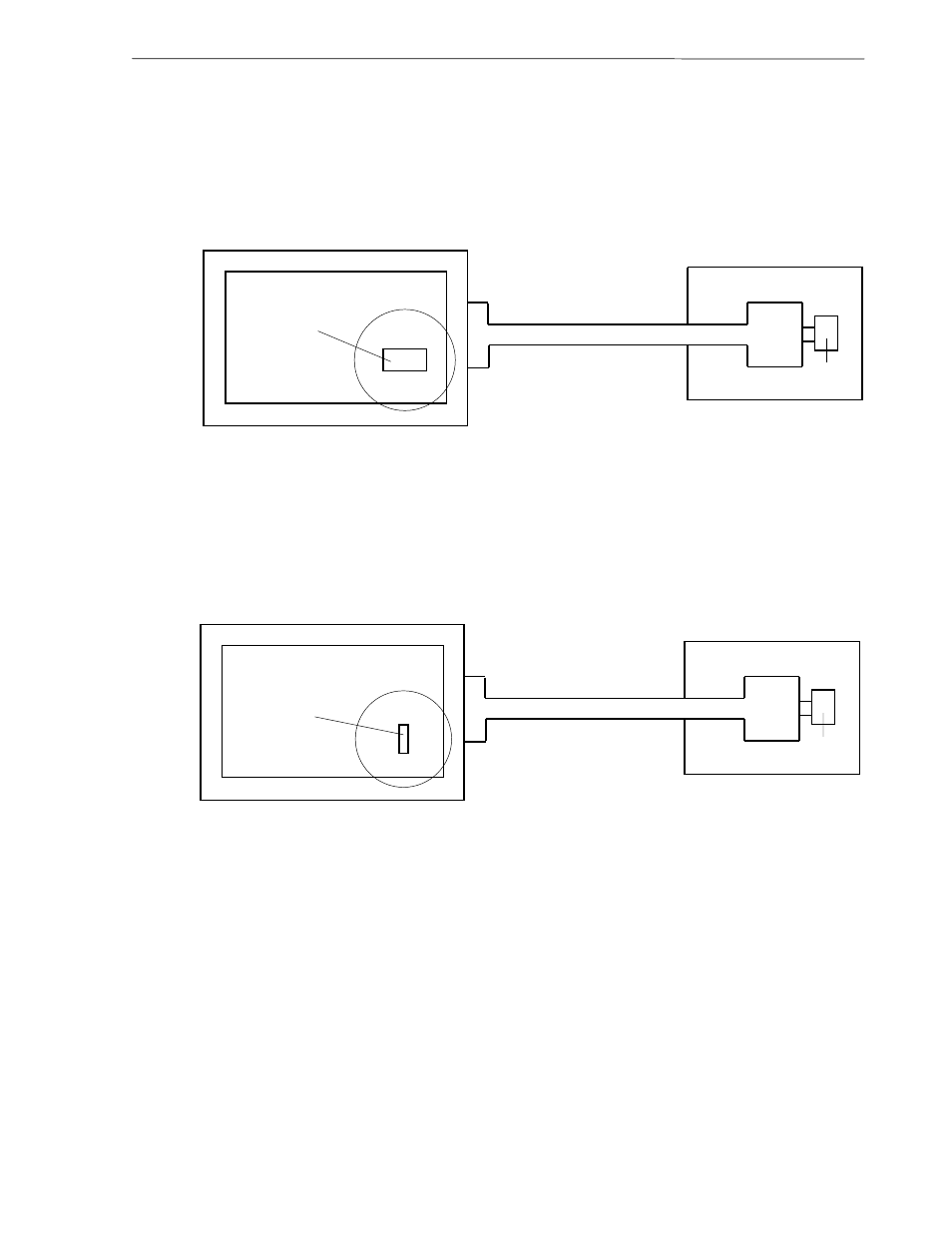

Figure 3-5. When Using Clock That Is Already Mounted on Emulation Board (Main System Clock)

Remark

The clock that is supplied by the IE-780338-NS-EM1’s oscillator (encircled in the figure) is

used.

(b) For subsystem clock

A crystal resonator (XT1) is already mounted on the emulation board. Its frequency is 32.768 kHz.

Figure 3-6. When Using Clock That Is Already Mounted on Emulation Board (Subsystem Clock)

Remark

The clock that is supplied by the IE-780338-NS-EM1’s resonator (encircled in the figure) is

used.

IE-78K0-NS or IE-78K0-NS-A

IE-780338-NS-EM1

Resonator
(not used)

Mounted
oscillator
(to be used)

Emulation probe

Target system

IE-78K0-NS or IE-78K0-NS-A

IE-780338-NS-EM1

Mounted
resonator
(to be used)

Emulation probe

Target system

Resonator

(not used)
