Appendix A Device-Specific Information
© National Instruments Corporation A-71 E Series User Manual

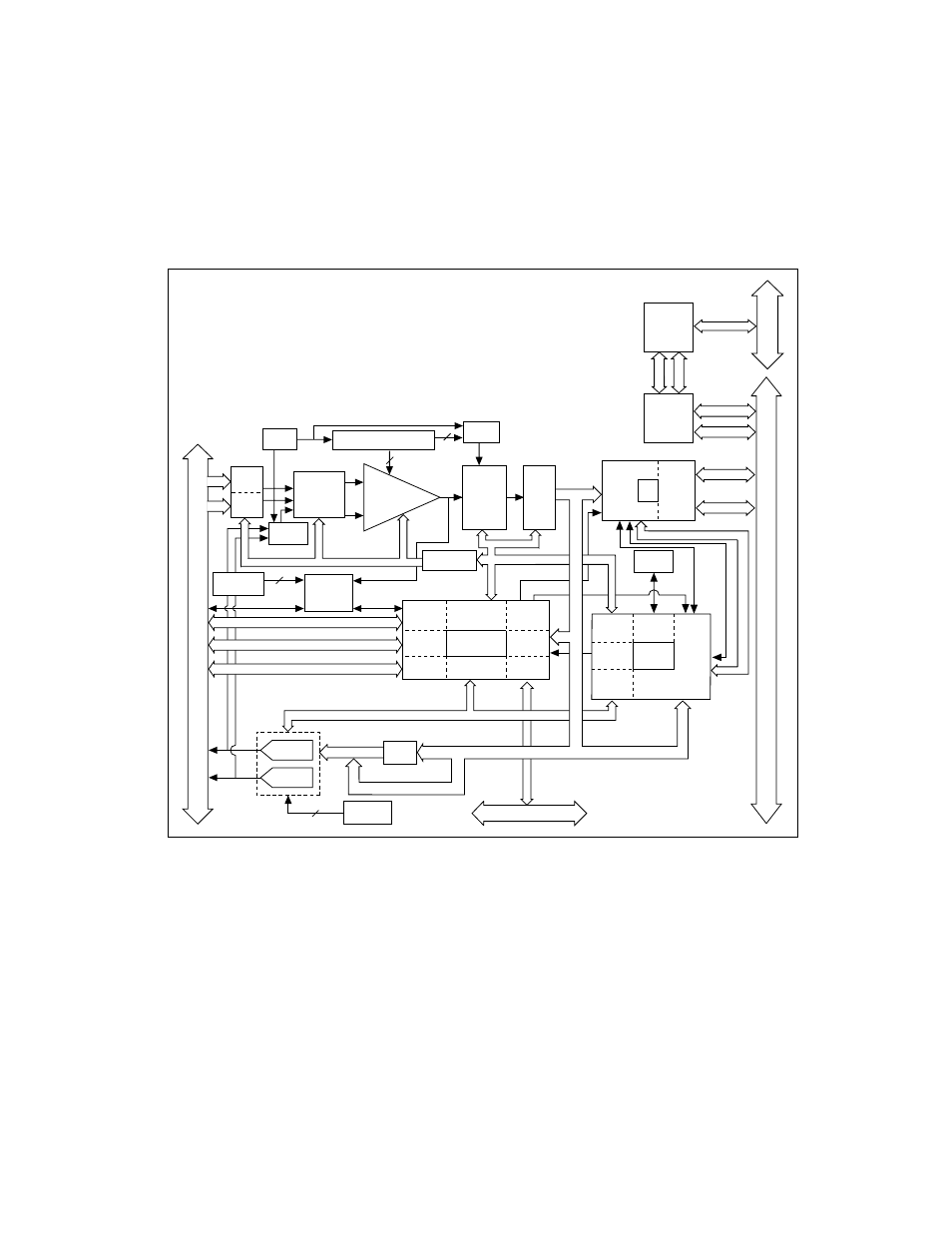

DAQPad-6052E Block Diagram
Figure A-56 shows a block diagram of the DAQPad-6052E.
Figure A-56. DAQPad-6052E Block Diagram
Connecting Signals to the DAQPad-6052E BNC
Analog Input
You can use each analog input BNC connector for one differential signal or
two single-ended signals.
