Appendix A

Device-Specific Information

A-11

E Series User Manual

Note

The devices in the DAQPad-6015/6016 family do not support SCXI, RTSI, or

referenced single-ended (RSE) AI mode.

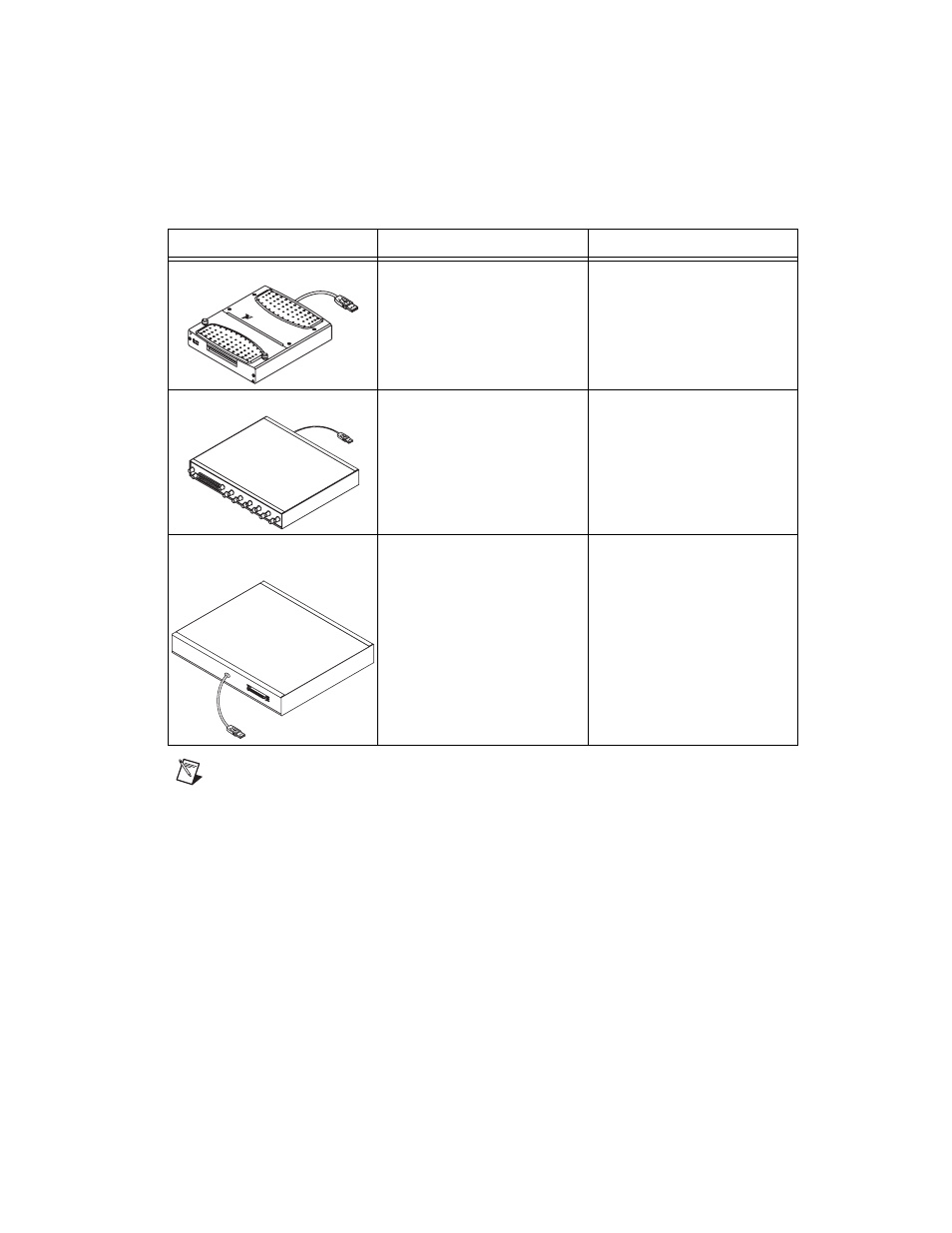

Table A-1. NI DAQPad-6015/6016 Versions

Model

I/O Connector

Form Factor

DAQPad-6015/6016

DAQPad-6015:
64 screw terminals
DAQPad-6016:
96 screw terminals
Prototyping areas

(8.0 in.

× 6.75 in. × 1.4 in.)

Stackable
Integrated strain relief
A removable lid

DAQPad-6015 BNC

Eight AI BNCs
Two AO BNCs
Four digital BNCs
A spring-loaded Combicon
connector for other digital
signals

(12.1 in.

× 10 in. × 1.7 in.)

Rack-mountable, stackable

DAQPad-6015 mass
termination

68-pin SCSI-II connector to
connect to an SCC system or
other accessories

(12.1 in.

× 10 in × 1.7 in.)

Rack-mountable, stackable
