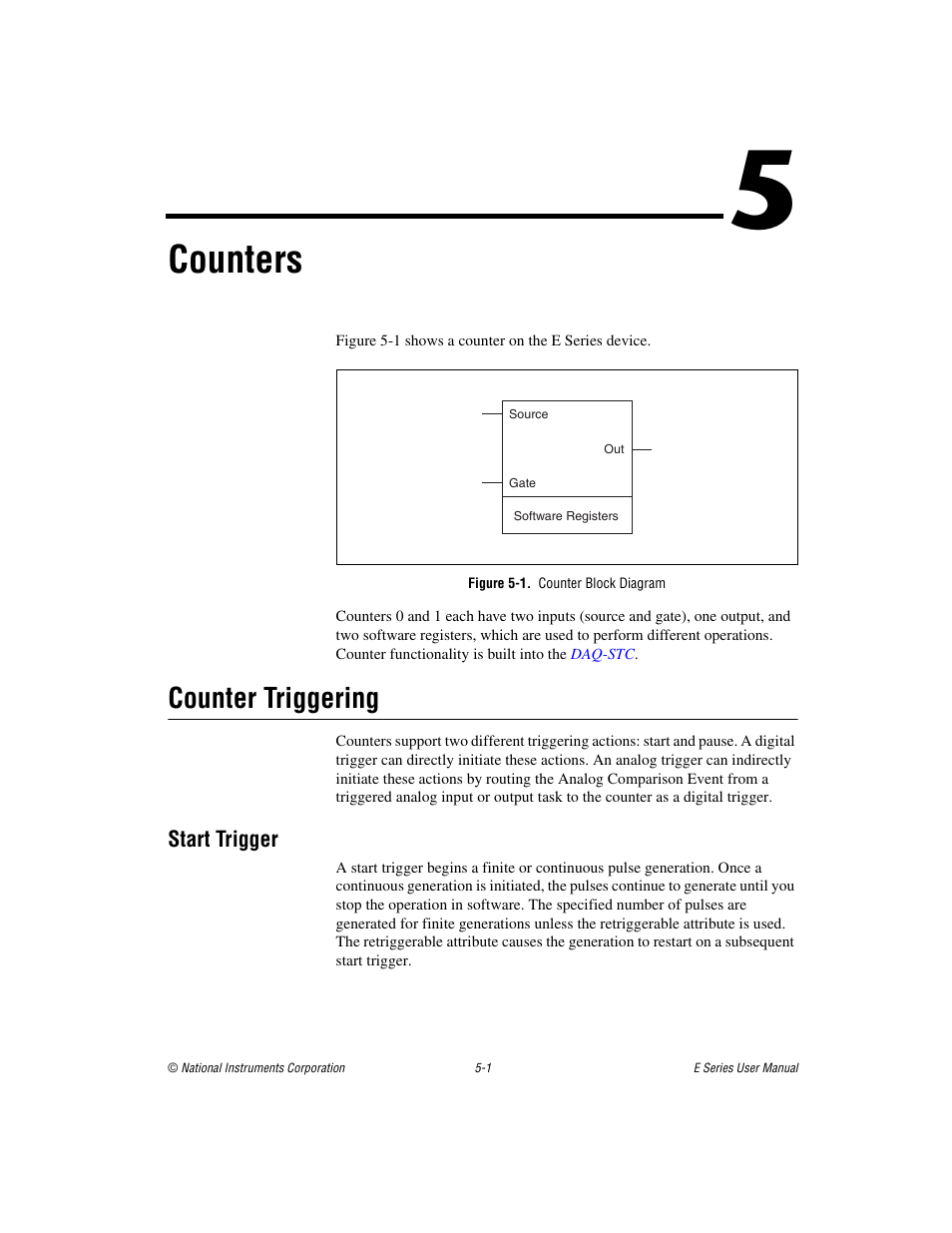

Chapter 5 counters, Figure 5-1. counter block diagram, Counter triggering – National Instruments Data Acquisition Device E Series User Manual
Page 106: Start trigger, Counter triggering -1, Start trigger -1, Counters
