Applicablepiping kit
CZ-3F5, 7AEN (CS-A9CKPG)
CZ-4F5, 7, 10AN (CS-A12CKPG)
SELECT THE BEST LOCATION
INDOOR UNIT
•
There should not be any heat source or steam near the
unit.
•
There should not be any obstacles blocking the air
circulation.
•
A placewhereair circulation in theroom is good.
•
A place where drainage can be easily done.
•
A
place
where
noise
prevention
is
taken
into
consideration.
•
Do not install theunit near thedoor way.
•
Ensure there is adequate space (indicated by arrows)
from the wall, ceiling, fence or other obstacles.
•
Recommended installation height for indoor unit shall be
at least 7.5 ft. (2.3 m).
OUTDOOR UNIT
•
If an awning is built over the unit to prevent direct
sunlight or rain, be careful that heat radiation from the
condenser is not obstructed.
•
Keep animals or plants away from the unit as they may
beaffected by thehot air discharged.
•
Keep the spaces (indicated by arrows) from wall, ceiling,
fence or other obstacles.
•
Do not place near any obstacles which may cause a
short circuit of thedischarged air.
•
If piping length is over the common length, additional
refrigerant should be added as shown in the table.

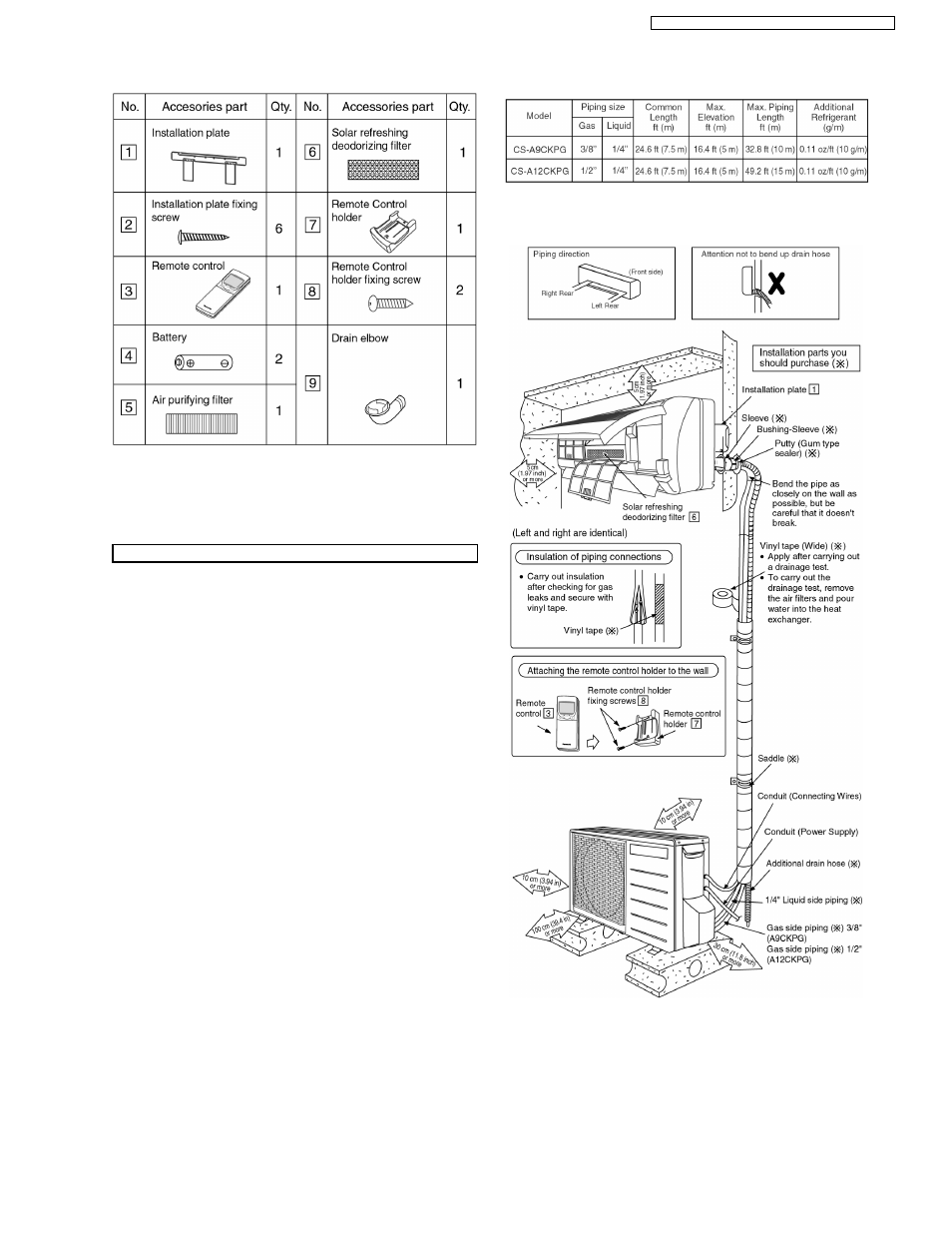

Indoor/Outdoor Unit Installation Diagram
•
This illustration is for explanation purposes only.
The indoor unit will actually face a different way.
Attached accessories
47
CS-A9CKPG CU-A9CKP6G / CS-A12CKPG CU-A12CKP6G
