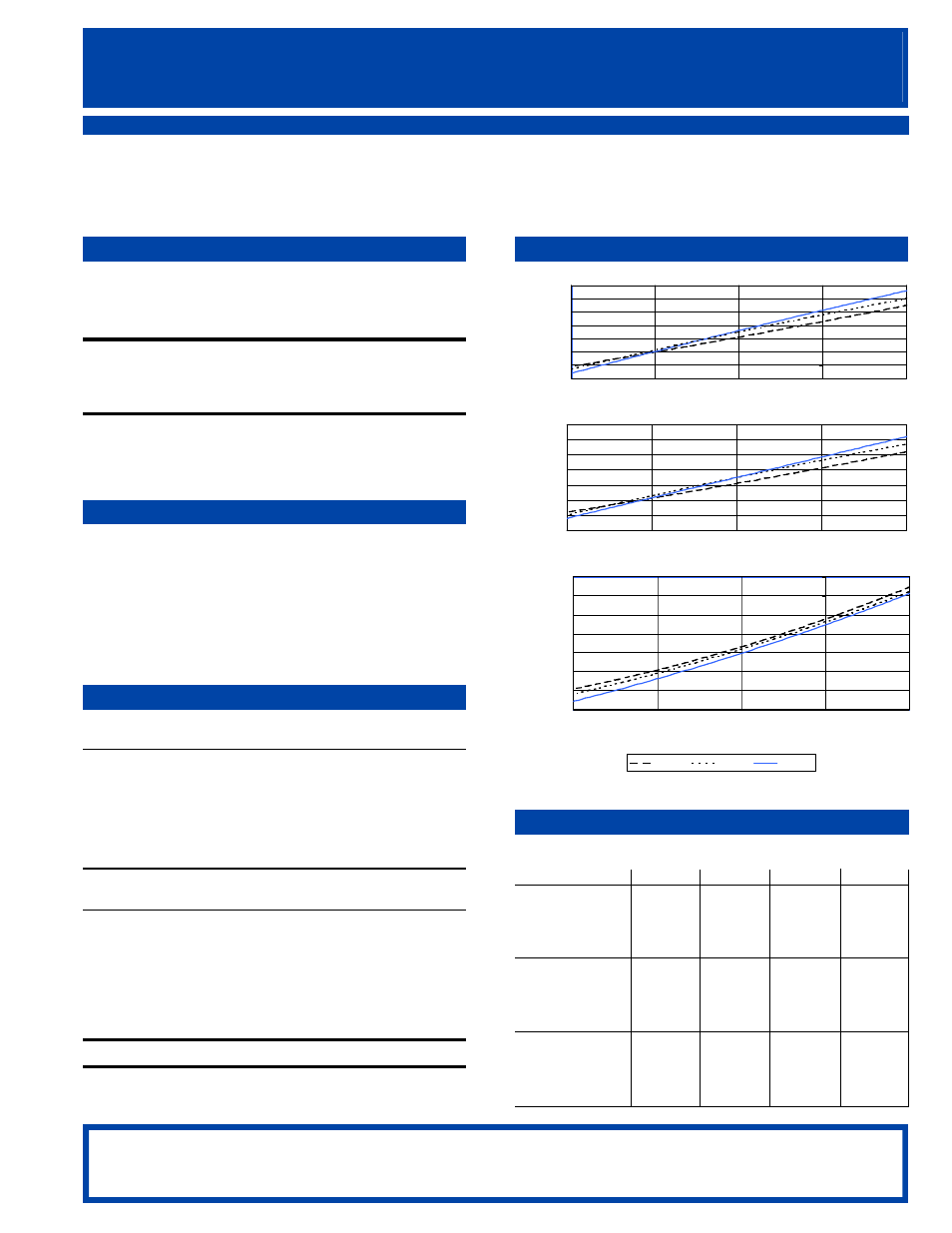

Panasonic SD39C77JAU6 - Manual

0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
-30 -20 -10 0 10
Current (A)
60
70
80
90
100
110
120
130
-30 -20 -10 0 10
Input Power (W)
100
200
300
400
500
600
700
800
-30 -20 -10 0 10
Evaporating Temperature (°F)
Capacity (BTU/H)
110°F 120°F 130°F
Rated Performance Data
Capacity . . . . . . . . . . . . . . 396 Btu/h ±10% *
E.E.R. . . . . . . . . . . . . . . . . . 4.13 Btu/Wh ±10% *
Current . . . . . . . . . . . . . . . 0.85 Amps *
Nominal Motor Data
Motor Input . . . . . 96 Watts*
Rated Current . . . 0.87 Amps
Type . . . . . . . . . . RSCR, PTC relay
Locked Rotor . . . . . . . . . . 7.50 Amps
Start Current . . . . . . . . . . 12.81 Amps
Coil Resistances
Run . . . . 5.06 Ohms
@ 68°F (20°C)
Start . . . 10.78 Ohms
*Test Conditions for Performance Specifications
Test Oil . . . . . . . . . . . . . . . . Freol
α
22
Shell Temp . . . . . . . . . . . . . . 170.0°F / 76.0°C
Condensing Temp . . . . . . . . . 130.0°F / 54.4°C
Evaporating Temp . . . . . . . . .-10.0°F / -23.3°C
Ambient Temp . . . . . . . . . . . . 90.0°F / 32.2°C
Gas Superheat . . . . . . . . . . . 90.0°F / 32.2°C
Liquid Sub-Cooling . . . . . . . . 90.0°F / 32.2°C
Electrical Accessories
Overload Protector
Nominal Operating Characteristics
Model Name T135AH3.1
Manufacturer Matsushita
Temperature To . . . . . . . . . . . Open: 275°F ± 9°F / 135°C ± 5°C
Close: 176°F ± 27°F / 80°C ± 15°C
Trip Current . . . . . . . . . . . . . . @212°F (100°C) 3.5 to 4.5 Amps
@77°F (25°C) 11.7 Amps @ 13 sec. max.
P.T.C. Starting Device †
Nominal Operating Characteristics
Model Name PTH490D-AS4R7 PTH7M4R7MD2
Manufacturer Murata Mfg. Murata Mfg.
Base resistance
@ 77°F(25°C) ±20% 4.7 4.7 Ohms
Power Consumption (max) 3.3 3.0 Watts
Operation time 1.3 to 3.0 0.7 to 2.2 seconds
Recovery time (max) 65 70 seconds
Run Capacitor
12 µF 180 V (min.)
†Although these accessories are listed by UL/CSA for use with this compressor,
Matsushita assumes no responsibility whatsoever for these or any other components
sourced by the refrigeration system manufacturer from third parties.
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315 Rev#1-5/9
Evaporating Temp.
Condensing Temp. Rating -30°F -10°F +10°F
130°F Btu/h 143 396 710
Watts 64 96 126
Amps 0.58 0.85 1.12
E.E.R. 2.23 4.13 5.63
120°F Btu/h 181 417 720
Watts 67 95 120
Amps 0.60 0.85 1.07
E.E.R. 2.70 4.39 6.00
110°F Btu/h 208 430 744
Watts 69 91 115
Amps 0.62 0.81 1.02
E.E.R. 3.01 4.73 6.47
MATSUSHITA Compressor
Single Phase 115 V
MODEL# SD39C77JAU6 (12µF Run Cap.)
R-134a 60 Hz
Performance Curves
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Application . . . . . . . . . . . . Low Back Pressure
Compressor Cooling . . . . Static Cooling Refrigerant Control . . Capillary Tube
Evaporator
Temp. Range . . . . . . . -31°F to 23°F / -35°C to -5°C
9 – Point Data
Panasonic
®
