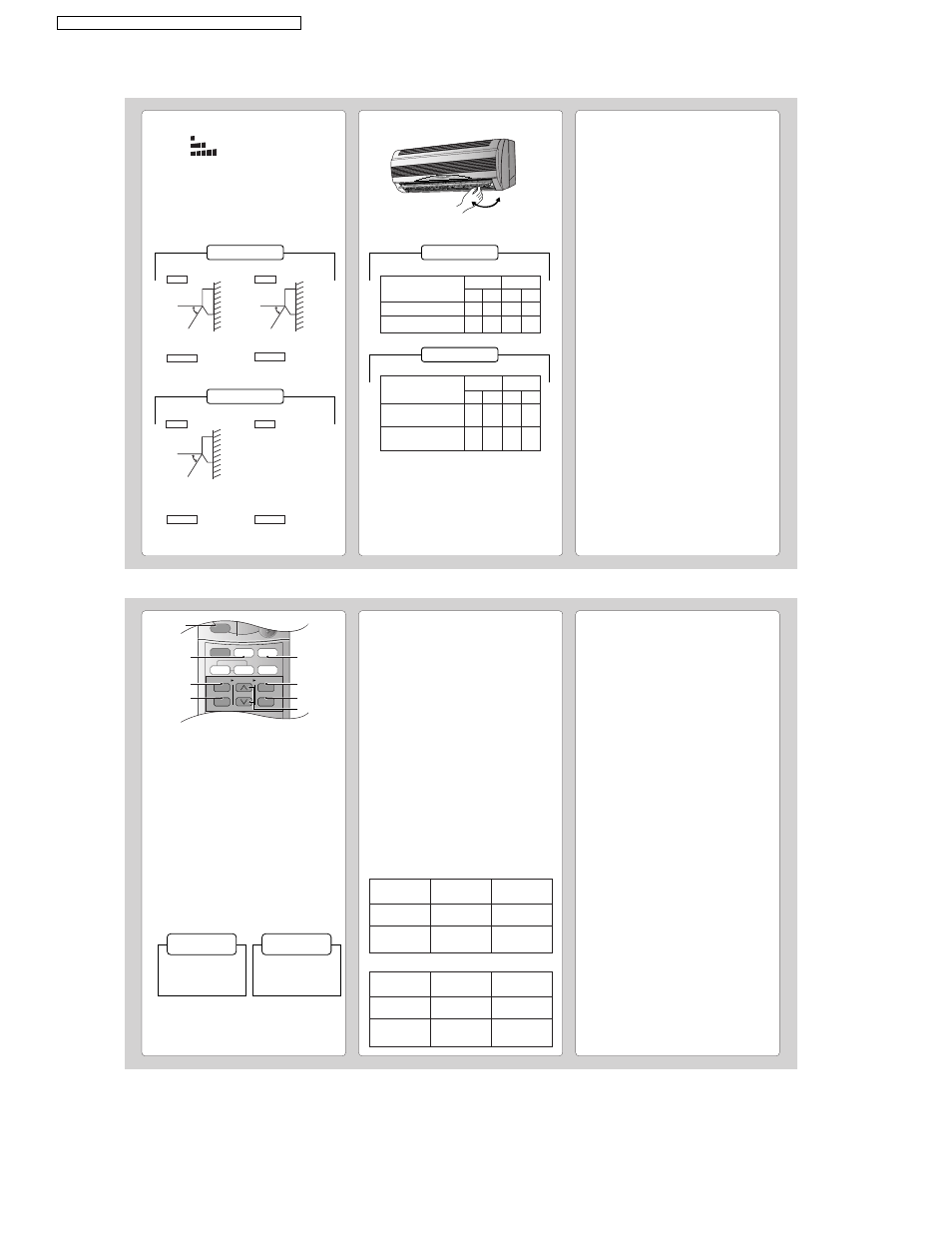

■ Setting the Horizontal Airflow Direction
● Notes
• If the unit is not going to be used for an extended
period of time, turn off the main power supply. If it is
left at the ON position, approximately 2.5 W of
electricity will be used even if the indoor unit has
been turned off with the remote control.
• If operation is stopped, then restarted immediately,
the unit will resume operation after 3 minutes.
● Operation Details
COOL – Cooling Operation
•
To set the room temperature at your preferred cooling
comfort level.
AUTO – Automatic Operation
•
Sense indoor temperature to select the optimum
mode.
• Temperature is not displayed on the remote control
during AUTO operation.
DRY – Soft Dry Operation
•
A very gentle Cooling Operation, prior to
dehumidification. It does not lower the room
temperature.
• During Soft Dry operation, the indoor fan operates at
Low fan speed.
HEAT – Heating Operation
(for Heat Pump Model only)
•
Heat is obtained from outdoor air to warm up the
room. When the outdoor ambient air temperature
falls, the heating capacity of the unit might be
reduced.
• Defrosting Operation
Depending on the outdoor temperature, the operation
occasionally stops to melt the frost on the outdoor
unit.
FAN – Air Circulation Operation
(for Cooling Model only)
•
When the room temperature reaches the set
temperature, operation commences at Low airflow
volume. It stops when the room temperature drops to
2°C below the set temperature.
(It is useful when using a heater).
MANUAL
Five stages of adjustment
can be made between
14° ~ 36°. MANUAL
Five stages of adjustment
can be made between
0° ~ 61°.
Heat Pump Model
MANUAL
Five stages of adjustment
can be made between
14° ~ 36°. MANUAL
Five stages of adjustment
can be made between
0° ~ 61°.
– When the discharge air
temperature is low such
as at the start of heating
operation, the air blows
in a horizontal direction.
As the temperature
rises, the hot air blows
in a downward direction.
– To stop this operation,
press MANUAL.
HEAT Operation
AUTO
COOL / DRY Operation
AUTO
Swing up/down
Automatically
36°
Swing up/down
Automatically Move up/down
Automatically
36° 61°
COOL / DRY Operation
AUTO
FAN Operation
AUTO
■ Setting the Fan Speed
• Press
4 to select:
FAN – Low Fan Speed
FAN – Medium Fan Speed
FAN – High Fan Speed
AUTO
FAN
– Automatic Fan Speed
The speed of the indoor fan is adjusted
automatically according to the operation.
The indoor fan stops occasionally during
cooling operation.
■ Setting the Vertical Airflow Direction
• Press
5 or 6 to select:-
Cooling Model
POWER POWER TIMER TIMER QUIET QUIET POWER POWER TIMER TIMER QUIET QUIET POWERFUL POWERFUL POWERFUL POWERFUL ECONOMY ECONOMY ECONOMY ECONOMY
• Adjust it manually
● Use this air conditioner under the following
conditions:
Heat Pump Model
DBT
32
16
DBT: Dry Bulb Temp
WBT: Wet Bulb Temp
Maximum Temperature-Cooling
(Maximum Temperature-Heating)
Minimum Temperature-Cooling
(Minimum Temperature-Heating)
DBT
32
(30)
16
(16)
WBT
23
(-)
11
(-)
DBT
43
(24)
16
(-5)
WBT
26
(18)
11
(-6)
Indoor Outdoor
(Unit in °C)
Cooling Model
DBT: Dry Bulb Temp
WBT: Wet Bulb Temp
Maximum Temperature
Minimum Temperature
WBT
23
11
DBT
43
16
WBT
26
11
Indoor Outdoor
(Unit in °C)
SETTING THE TIMER
Ensure that the current time is correct before setting
the timer. The timer cannot be set if the time display is
flashing.
■ ON-TIMER Operation
To start the air conditioner operation automatically.
• Press
1 to set the operation.
• Press 2 to increase or decrease the time.
• Then press 3 .
• To cancel this operation, press 4 .
■ OFF-TIMER Operation
To stop the air conditioner operation automatically.
• Press
5 to set the operation.
• Press 2 to increase or decrease the time.
• Then press 3 .
• To cancel this operation, press 4 .
● Timer Mode Operation Details
• Once the timer is set, operation will start and stop
at the same time everyday.
• When the ON-Timer is set, operation will start
before the actual set time. This is to ensure the
room temperature reaches the set temperature at
the set time.
• The current time is not displayed when the timers
are set.
• When both timers are used together, the TIMER
mode indicator on the indoor unit remains lit even
when the operation is stopped by the OFF-TIMER.
CONVENIENCE OPERATION
■ Powerful Mode Operation
To obtain the set temperature quickly.
• Press
6 .
* Powerful mode indicator (orange) on the indoor
unit will light up.
* Powerful mode will operate for 15 minutes only.
• To cancel this operation, press once more.
■ Economy Mode Operation
To save electrical power consumption.
Please use this mode when the room has reached
your desired temperature.
• Press
7 .
* Economy mode indicator (green) on the indoor unit
will light up.
• Press once more to cancel this operation.
● Economy/Powerful Mode Operation Details
• Economy and Powerful operation cannot be
selected simultaneously.
• The changes of the temperature and airflow volume
are automatic.
• The remote control display remains unchanged.
• If operation mode button is pressed, economy or
powerful operation will be cancelled.
• During FAN – Air circulation operation, the powerful
and economy operation are not available.
(for Cooling Model only)
■ Quiet Mode Operation
To provide quiet operation.
• Press
8 .
* Quiet mode indicator on the indoor unit will light up.
• To cancel this operation, press once more.
● Operation Details
• Air flow sound will reduce during operation.
CHECK
AUTO
AUTO HEAT DRY FAN COOL
FAN
AUTO
RESET CLOCK
MODE POWERFUL ECONOMY
FAN SPEED
AIR SWING
OFF CANCEL
ON SET
1 2 3
TIMER
OFF/ON QUIET
AUTO MANUAL
3
6
4
1
7
5
2
8
Heat Pump Model
COOL,DRY, –>15 minutes
in advance
HEAT, AUTO –>30 minutes
in advance
Cooling Model
COOL,DRY, –> 15 minutes
AUTO
in advance
Airflow
volume
Super Low
Automatic
Economy Mode
Operation
COOL / DRY
HEAT
(for Heat Pump
model only)
Temperature
0.5°C higher
than set temp.
0.5°C lower
than set temp.
Airflow
volume
Super High
Automatic
Powerful Mode
Operation
COOL / DRY
HEAT
(for Heat Pump
model only)
Temperature
3°C lower
than set temp.
3°C higher
than set temp.
42
