Panasonic QA125K29CAU6 - Manual

5.5
6.0
6.5
7.0
7.5
8.0
8.5
30 35 40 45 50 55 60
Current (A)
500
550
600
650
700
750
800
30 35 40 45 50 55 60
Input Power (W)
3,000
3,500
4,000
4,500
5,000
5,500
6,000
6,500
30 35 40 45 50 55 60
Evaporating Temperature (°F)
Capacity (BTU/H)
120°F 130°F 140°F
Rated Performance Data
Capacity . . . . . . . . . . . . . . 4,524 Btu/h ±10% *
E.E.R. . . . . . . . . . . . . . . . . . 7.08 Btu/Wh ±10% *
Current . . . . . . . . . . . . . . . 6.88 Amps *
Nominal Motor Data
Motor Input . . . . 639 Watts*
Rated Current . . 6.01 Amps
Type . . . . . . . . . CSIR, Current relay
Start Current . . . . . . . . . . 30.7 Amps
Coil Resistances
Run . . . . 1.06 Ohms
@ 68°F (20°C)
Start . . . 7.53 Ohms
*Test Conditions for Performance Specifications
Test Oil . . . . . . . . . . . . . . . . Freol
α
22
Shell Temp . . . . . . . . . . . . . . 170.0°F / 76.0°C
Condensing Temp . . . . . . . . . 130.0°F / 54.4°C
Evaporating Temp . . . . . . . . . 45.0°F / 7.2°C
Ambient Temp . . . . . . . . . . . . 95.0°F / 35.0°C
Gas Superheat . . . . . . . . . . . 95.0°F / 35.0°C
Liquid Sub-Cooling . . . . . . . . 115.0°F / 46.1°C
Electrical Accessories †
Overload Protector
Nominal Operating Characteristics
Model Name MST00AKZ
Manufacturer Texas Instruments
Temperature To . . . . . . . . . . . Open: 248°F ± 9°F / 120°C ± 5°C
Close: 142°F ± 20°F / 61°C ± 11°C
Trip Current . . . . . . . . . . . . . . @158°F (70°C) 10.3 Amps ± 7.5%
@77°F (25°C) 20.0 Amps @ 18 sec. max.
Current Relay Model
Nominal Operating Characteristics
Model Name MM5-E3CH
Manufacturer Matsushita
Pick Up Current 14.3 max. Amps
Drop Out Current 12.0 max. Amps
Start Capacitor
100 µF 160 V (min.)
†Although these accessories are listed by UL/CSA for use with this compressor,
Matsushita assumes no responsibility whatsoever for these or any other components
sourced by the refrigeration system manufacturer from third parties.
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315 Rev#1-5/9
Evaporating Temp.
Condensing Temp. Rating +30°F +45°F +59°F
140°F Btu/h 3,076 4,384 5,896
Watts 559 673 783
Amps 6.25 7.14 8.06
E.E.R. 5.50 6.51 7.53
130°F Btu/h 3,196 4,524 6,077
Watts 537 639 734
Amps 6.10 6.88 7.66
E.E.R. 5.95 7.08 8.28
120°F Btu/h 3,302 4,657 6,275
Watts 513 603 690
Amps 5.93 6.62 7.31
E.E.R. 6.44 7.72 9.09
MATSUSHITA Compressor
Single Phase 115 V
MODEL# QA125K29CAU6 (100µF Start Cap.) R-134a
60 Hz

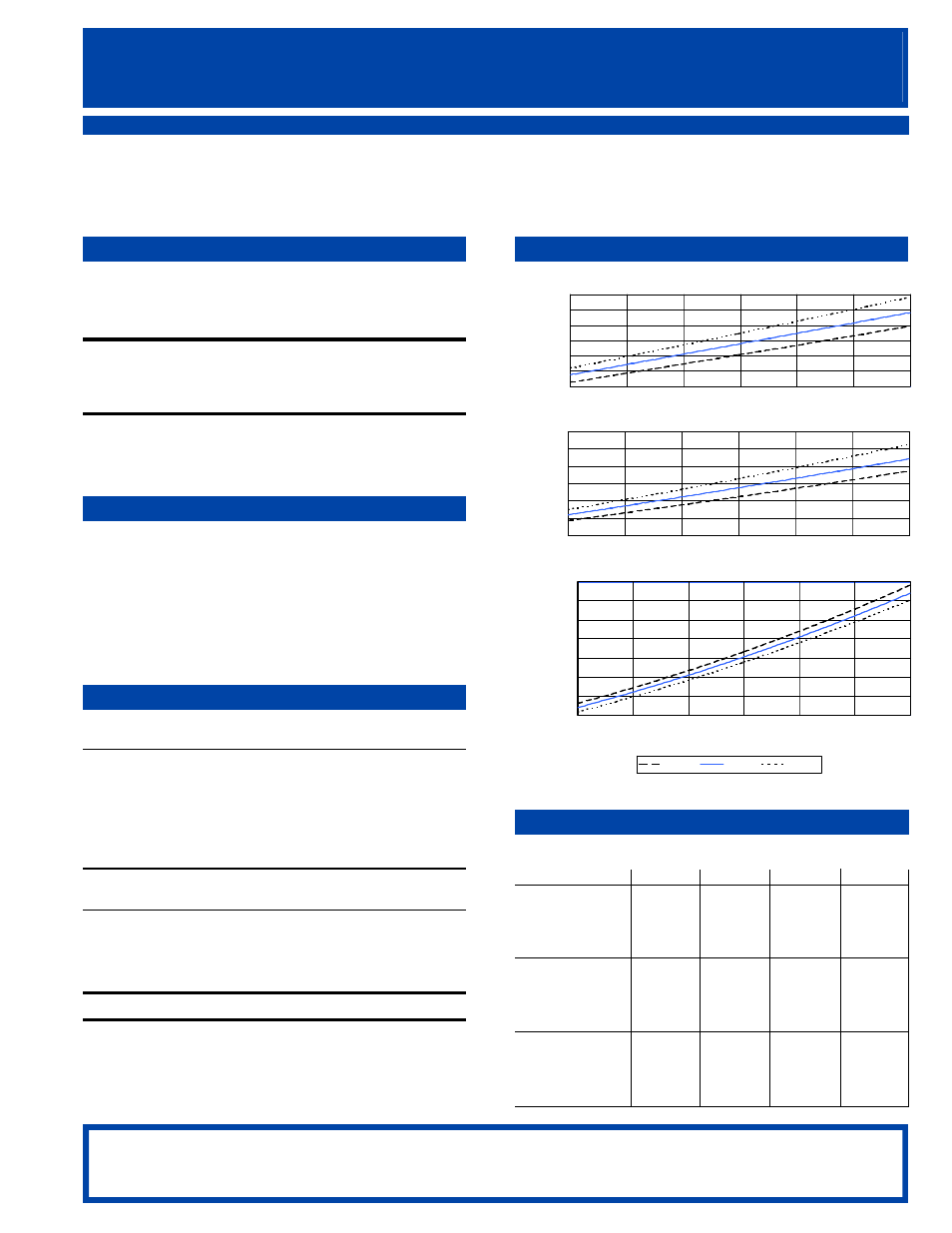

Performance Curves
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Application . . . . . . . . . . . . High Back Pressure
Compressor Cooling . . . . Fan Cooling Refrigerant Control . . Capillary Tube
Evaporator
Temp. Range . . . . . . . 23°F to 59°F / -5°C to 15°C
9 – Point Data
