Run Cable for System
Dedicated line for diagnostic modem
The SpectraLink 6100 MCU can be accessed remotely using an
internal modem. To use the modem for remote access, a dedicated
dial-in line must be provided. On digital interface systems this line
must be terminated as a digital extension to the MCU.
Two-wire analog or digital interface

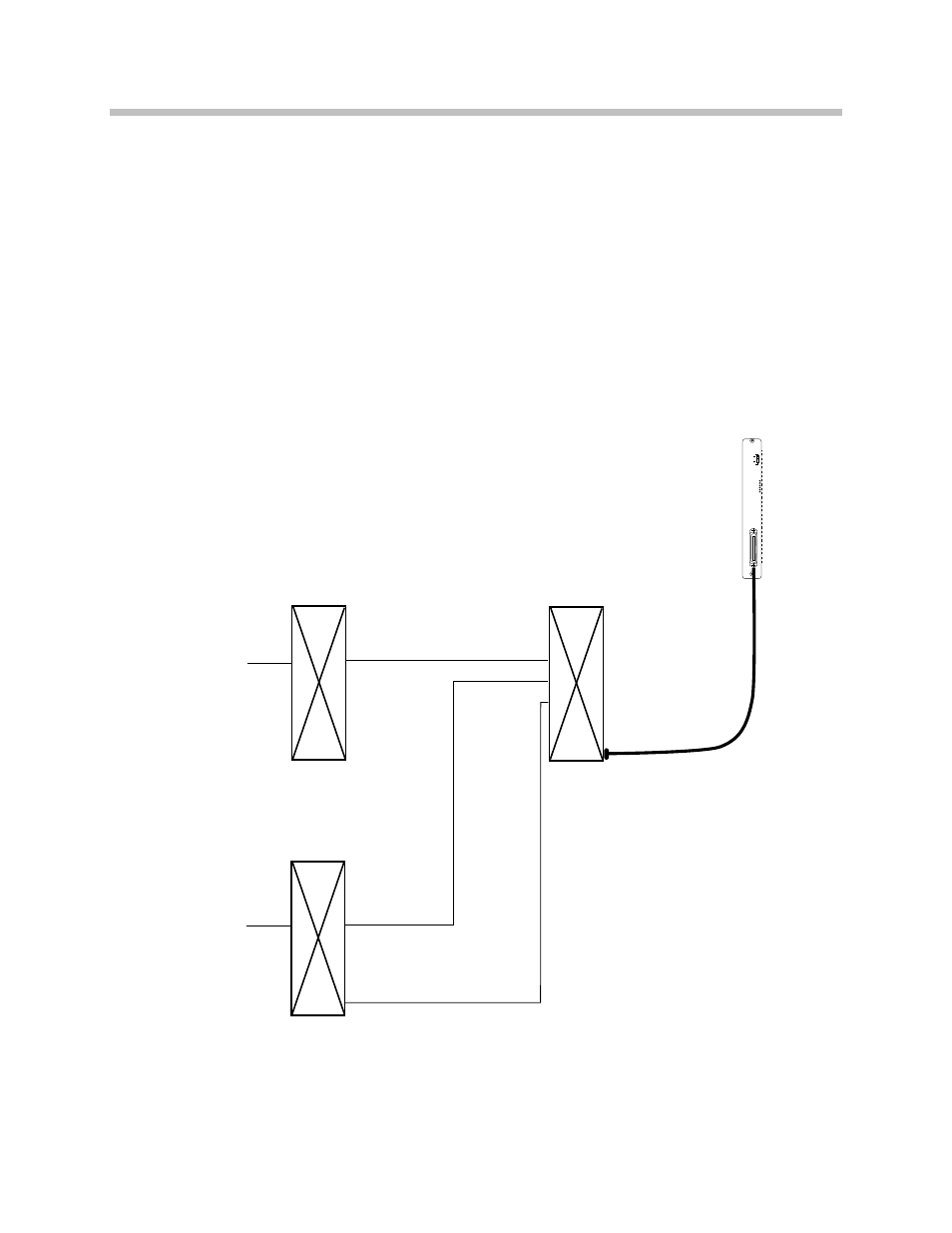

The wiring diagram below shows the connections required for a two-
wire analog or digital interface.
Telephone Ports
Pair 1-16
Pair
18-19
Data Pair
20-23
Pair 24 & 25
Unused
Power Pairs
Base Stn. 1-4
Data Pairs
Base Stn. 1-4
To
Base Stations
To
PBX
A
Pair 17 Unused
Two-wire Analog or Digital Connection
PN: 1725-36097-001_G.doc
21
