Primera Technology BravoPro Optical Disc Printing System - Manual (Page 37)

Printing Discs on a Mac 33

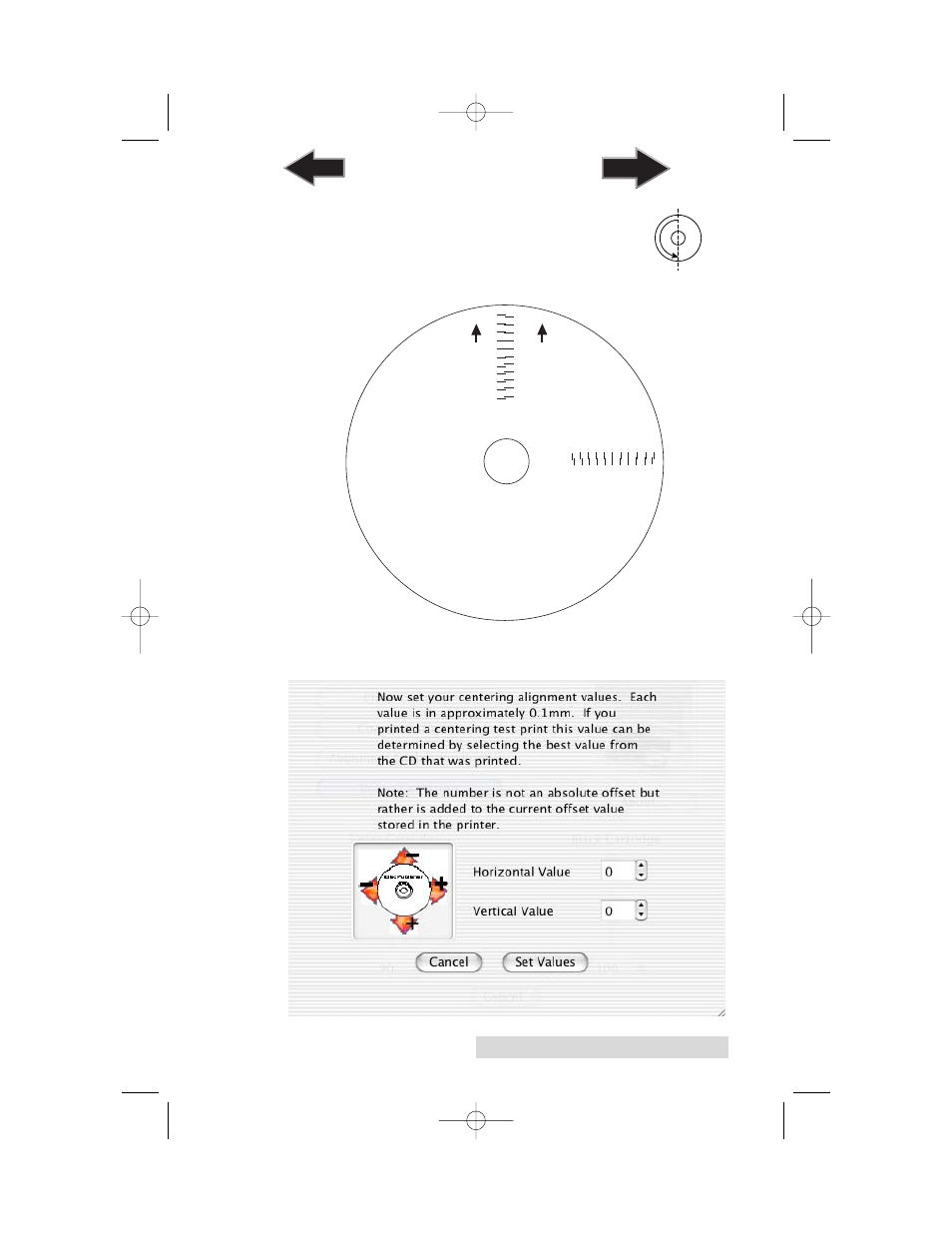

prompted to open the Printer's front cover, rotate
the printed disc 180 degrees, reload it into the
input, and close the cover. Click OK when ready
and the Printer will pick the disc and print another
scale of numbers. The disc should look like this:
Once the print has finished, you will see the following dialog
box:
-5 -4 -3 -2 -1 0 1 2 3 4 5
5 4 3 2 1 0 -1 -2 -3 4 -5
Horiz ontal Calibration
Find and enter the number
whose lines tough
(must be the SAME n umber)
Ver tical Calibration
Find and enter the number
whose lines tough
(must be the SAME n umber) NOTE:
After printing this image
once, rotate this CD
so the ARROWS point
to the BACK of the printer
and print again.
-5
-4
-3
-2
-1
0
1
2
3
4
5
5
4
3
2
1
0
-1
-2
-3
-4
-5 BACK BACK
510921PM.qxd 1/26/2005 11:12 AM Page 33
TOC INDEX
