Perle PoE/PoE+ 10/100 Ethernet Media Converter
15
Extended Temperature models supplied
with a PluggableTerminal Block
1. Unplug the terminal block from the Media Converter.
2. Ensure the Power Source is off.
3. Strip both wires 5mm (3/16th inch)
4. Loosen the terminal block screws and connect Positive
(+) wire to the left terminal. Connect the Negative (-) wire
to the right terminal. Tighten Terminal screws (0.22Nm-
0.25Nm torque).
5. Plug the terminal block into the Media Converter
6. Turn on power source.
7. Check that the PWR LED light is lit.

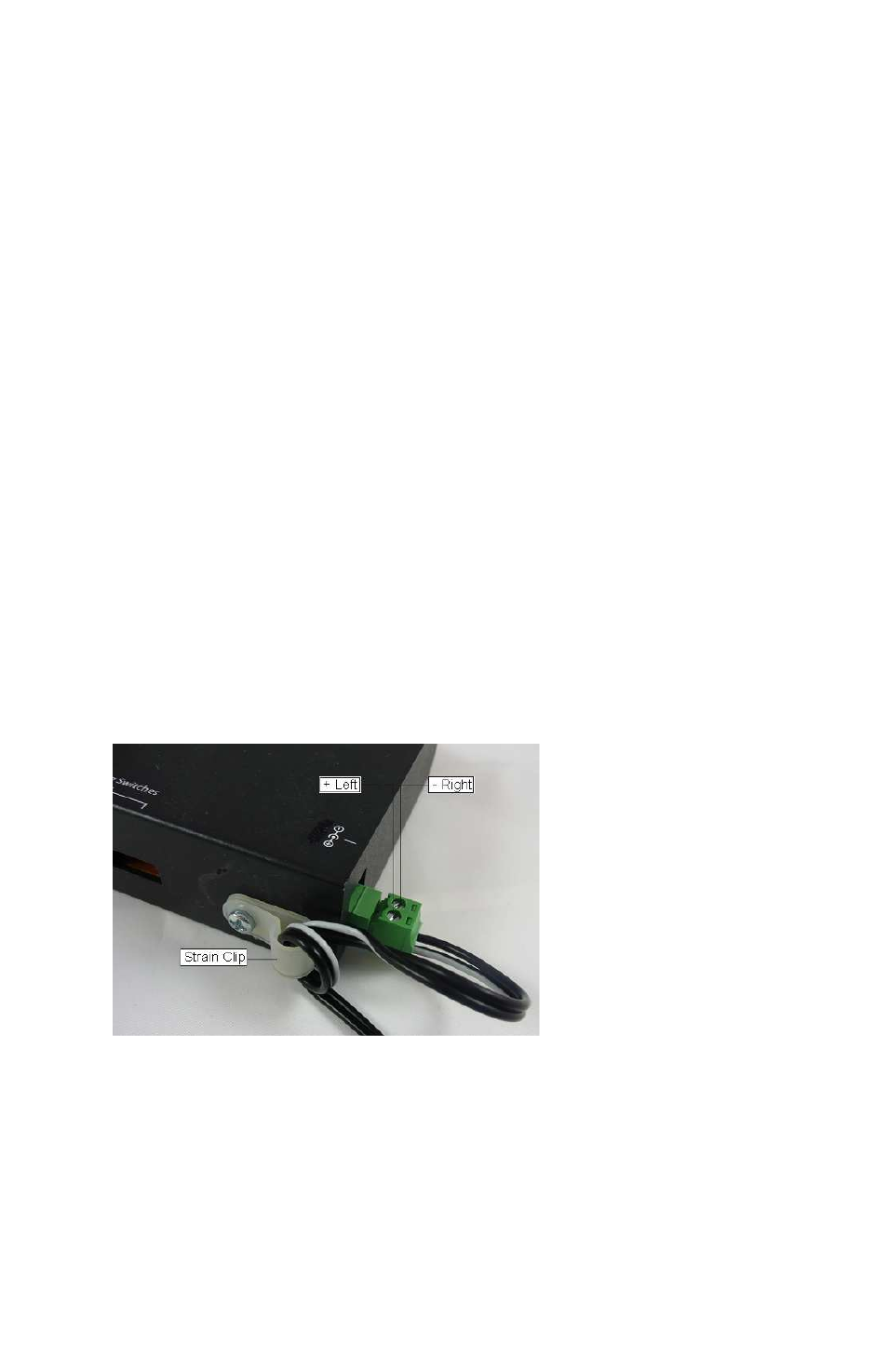

8. For extra power cable strain relief, attach the strain clip
to the case as shown below, and thread the power cable
through the clip in either one or two loops.
