1. Introduction and Installation
10 For assistance, please visit http://www.panasonic.com/help
Installation
1.5 Toner cartridge and drum
cartridge
The supplied toner cartridge is a starter toner cartridge.
Caution:
L Read the following instructions before you begin
installation. After you have read them, open the
drum cartridge protection bag. The drum
cartridge contains a photosensitive drum.
Exposing it to light may damage the drum. Once
you have opened the protection bag:
–
Do not expose the drum cartridge to light for
more than 3 minutes.
– Do not touch or scratch the black drum
surface inside of the drum cartridge.
– Do not place the drum cartridge near dust or
dirt, or in a high humidity area.
– Do not expose the drum cartridge to direct
sunlight.
L Do not leave the toner cartridge out of the
protection bag for a long time. It will decrease the
toner life.
L We cannot be responsible for any damage to the
unit or degradation of print quality which may
occur from the use of a non-Panasonic toner
cartridge and drum cartridge.
L Do not add toner to the toner cartridge.

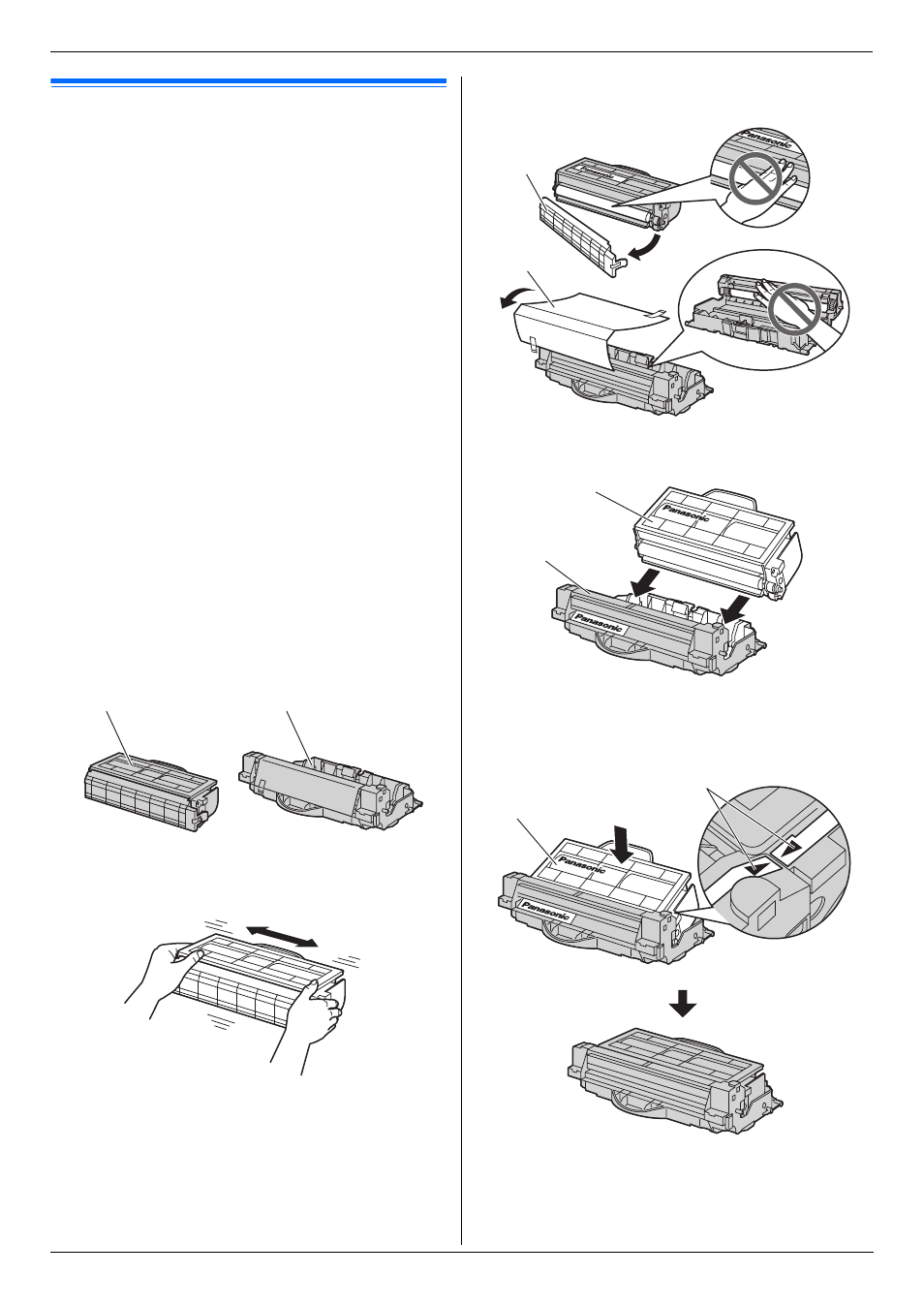

1 Remove the toner cartridge (
1) and drum cartridge
(
2) from the protection bags.
2 Shake the toner cartridge horizontally more than 5
times.
3 Detach the protective cover (
3) from the toner
cartridge, and remove the protective sheet (
4) from
the drum cartridge.
L Do not touch or scratch the black drum or toner
surfaces.
4 Insert the toner cartridge (
5) into the drum cartridge
(
6) from the upper angle.
5 Push down the toner cartridge (
7) to lock into place.
L Make sure that the triangles (
8) match to install
the toner cartridge correctly.
1 2
4
3
5
6
8
7
