3. Using the Web Interface
6218-A2-GB20-00 February 2005 3-43

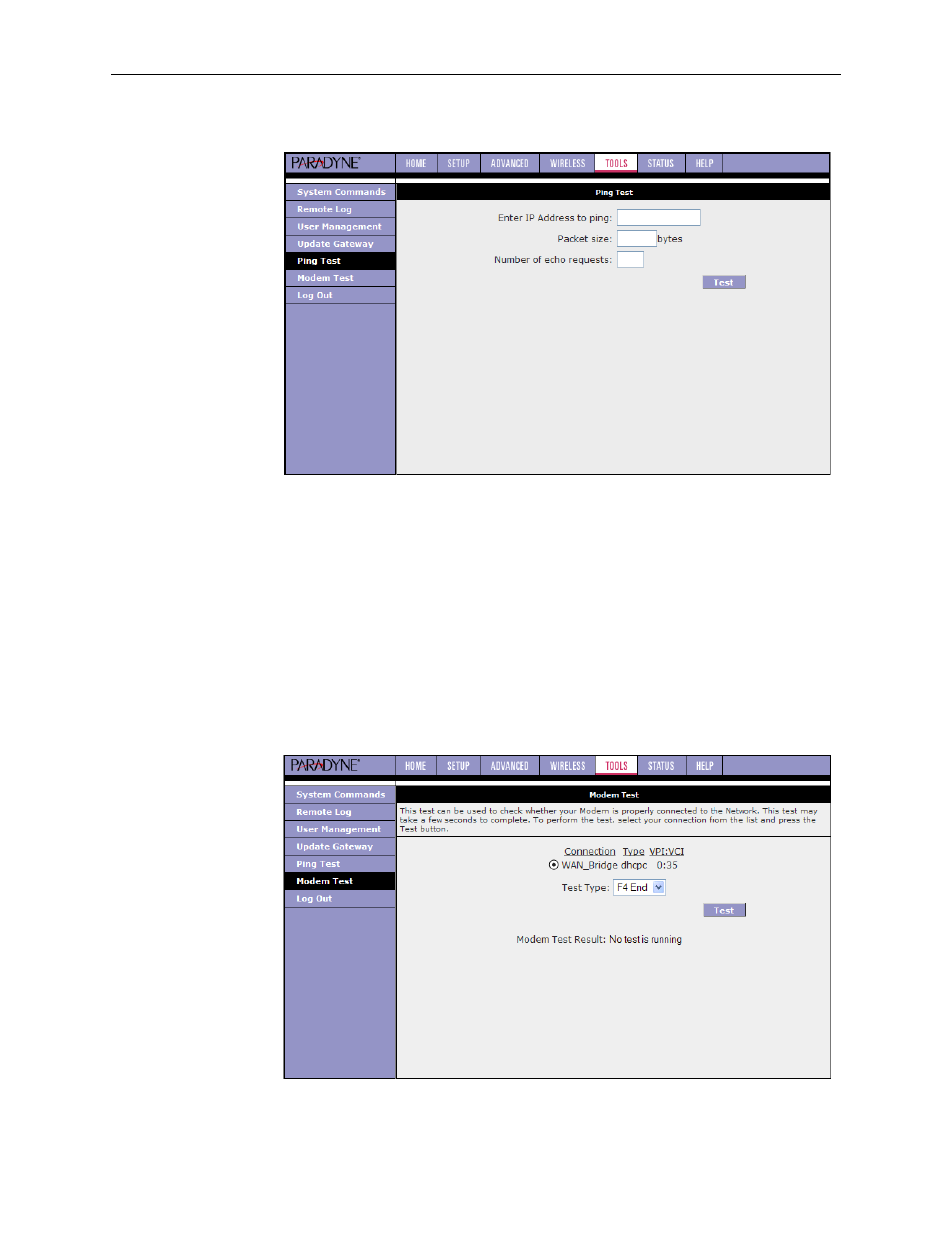

Figure 3-40. Ping Test
Modem Test
The Modem Test is used to check whether your router is properly connected to the
WAN Network by running OAM F4 and F5 end-to-end and segment tests. The test
may take a few seconds to complete. To perform the test, select your connection
from the list, select a Test Type, and click on the Test button.
Before running this test, make sure you have a valid DSL link; if the DSL link is not
connected, this test will always fail. Also, the DSLAM must support this feature.
Not all DSLAMs have OAM F4 and F5 support.
Figure 3-41. Modem Test
